Hwf160-10nh Vertical Vacuum Muffle Furnace with 165019502000mm WHD Dimensions from Chin

Large Image : Hwf160-10nh Vertical Vacuum Muffle Furnace with 1650*1950*2000mm W*H*D Dimensions from Chin

Product Details:

Contact Now

Hwf160-10nh Vertical Vacuum Muffle Furnace with 165019502000mm WHD Dimensions from Chin

Description

Model NO.:	HWF160-10NH	Range Of Applications:	Industrial
Type:	Electric Holding Furnace	Usage:	Ceramic Sintering
Fuel:	Electric	Atmosphere:	Vacuum/Nitrogen/Hydrogen
Effective Chamber Dimensions:	500500650mm(WHD)	Thermcouple:	K
Max Temp:	1100ºC	Transport Package:	Wooden Packaging
Specification:	165019502000mm(WHD)	Trademark:	Chitherm
Origin:	China	HS Code:	8514101000
Supply Ability:	50 Sets/Year	Package Size:	166.00cm * 196.00cm * 201.00cm
Package Gross Weight:	1550.000kg	Customization:	Available
Certification:	ISO	Place Style:	Vertical
Shipping Cost:	Contact The Supplier About Freight And Estimated Delivery Time.	:	Support Payments In USD
Secure Payments:	Every Payment You Make On Made-in-China.com Is Protected By The Platform.	Refund Policy:	Claim A Refund If Your Order Doesn't Ship, Is Missing, Or Arrives With Product Issues.

HWF160-10NH Vertical Vacuum Muffle Furnace

Product Overview

A high-performance vertical vacuum muffle furnace designed for industrial ceramic sintering and metal processing applications. With precise temperature control and multiple atmosphere options, this furnace delivers reliable performance for demanding thermal processes.

Key Specifications

Attribute	Value
Model Number	HWF160-10NH
Maximum Temperature	1100°C
Effective Chamber Dimensions	500×500×650mm (W×H×D)
Atmosphere Options	Vacuum/Nitrogen/Hydrogen
Thermocouple Type	K
Overall Dimensions	1650×1950×2000mm (W×H×D)
Weight	1500kg
Certification	ISO

Technical Features

Temperature Control: ±1°C stability with PID controller
Heating System: Resistance wire pre-built heating plate (40kW max power)
Cooling Method: Air cooling with blower
Muffle Material: High-quality SUS 310S
Safety Features: Comprehensive alarm system for over-temperature, thermocouple failure, and system faults
Vacuum Performance: Maximum vacuum level ≤10Pa

Applications

Ideal for various industrial thermal processes including:

Metal parts soldering
HTCC package processing
Decarburization, annealing, and quenching
Hardening and thermal decomposition
Ceramic sintering

Facility Requirements

Power: 55kVA, 3-phase 5-wire (220/380V, 50Hz)
Nitrogen: 99.999% purity, 0.2-0.4MPa pressure
Hydrogen: 0.2-0.4MPa pressure
Compressed Air: Dry, clean, oil-free (0.4-0.8MPa)
Installation Space: Minimum 3000×2500×3000mm (D×W×H)

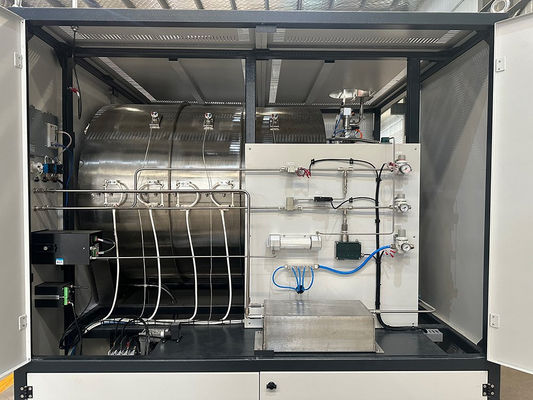

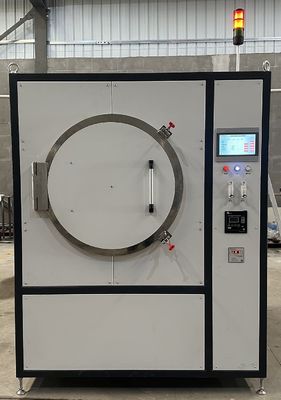

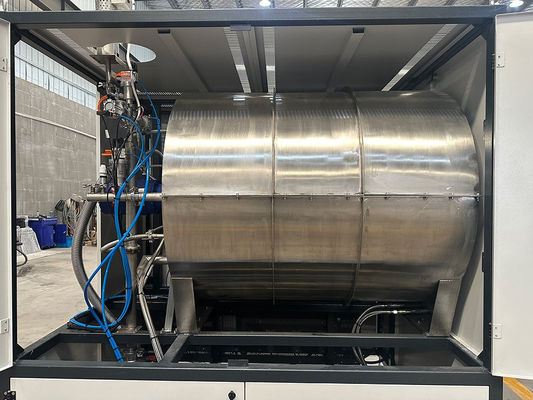

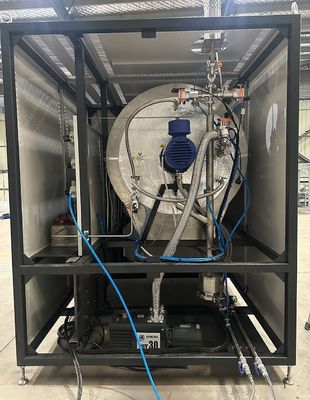

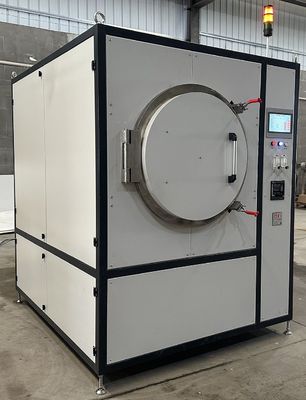

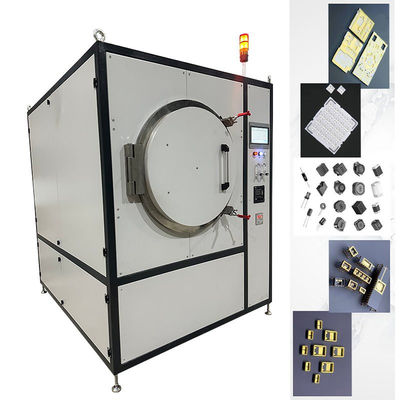

Product Images

Standard Package Contents

Component	Details	Quantity
Furnace Unit	Complete system	1 SET
Temperature Controller	Azbil, CHINO or equivalent	1 SET
PLC System	SIEMENS or equivalent	1 SET
Thermocouples	Type N	3 PCs
Technical Documents	User manual and certificates	1 SET
