1550.000kg Package Gross Weight Hwf160-10nh Vacuum Atmosphere Tank Furnace for Industrial Applications and Operations

Large Image : 1550.000kg Package Gross Weight Hwf160-10nh Vacuum Atmosphere Tank Furnace for Industrial Applications and Operations

Product Details:

Contact Now

1550.000kg Package Gross Weight Hwf160-10nh Vacuum Atmosphere Tank Furnace for Industrial Applications and Operations

Description

Model NO.:	HWF160-10NH	Range Of Applications:	Industrial
Type:	Electric Holding Furnace	Usage:	Ceramic Sintering
Fuel:	Electric	Atmosphere:	Vacuum/Nitrogen/Hydrogen
Effective Chamber Dimensions:	500500650mm(WHD)	Thermcouple:	K
Max Temp:	1100ºC	Transport Package:	Wooden Packaging
Specification:	165019502000mm(WHD)	Trademark:	Chitherm
Origin:	China	HS Code:	8514101000
Supply Ability:	50 Sets/Year	Package Size:	166.00cm * 196.00cm * 201.00cm
Package Gross Weight:	1550.000kg	Customization:	Available
Certification:	ISO	Place Style:	Vertical
Shipping Cost:	Contact The Supplier About Freight And Estimated Delivery Time.	:	Support Payments In USD
Secure Payments:	Every Payment You Make On Made-in-China.com Is Protected By The Platform.	Refund Policy:	Claim A Refund If Your Order Doesn't Ship, Is Missing, Or Arrives With Product Issues.

1550.000kg Package Gross Weight HWF160-10NH Vacuum Atmosphere Tank Furnace for Industrial Applications

Product Specifications

Attribute	Value
Model NO.	HWF160-10NH
Range of Applications	Industrial
Type	Electric Holding Furnace
Usage	Ceramic Sintering
Fuel	Electric
Atmosphere	Vacuum/Nitrogen/Hydrogen
Effective Chamber Dimensions	500500650mm(WHD)
Thermcouple	K
Max Temp	1100ºC
Transport Package	Wooden Packaging
Specification	165019502000mm(WHD)
Trademark	Chitherm
Origin	China
HS Code	8514101000
Supply Ability	50 Sets/Year
Package Size	166.00cm * 196.00cm * 201.00cm
Package Gross Weight	1550.000kg
Customization	Available
Certification	ISO
Place Style	Vertical

Product Description

Applications

This furnace is designed for soldering processes of metal parts and HTCC packages, with additional capabilities for decarburization, annealing, quenching, scorching, hardening, and thermal decomposition processes.

Technical Specifications

Rated Temperature: 900ºC
Maximum Temperature: 1100ºC
Atmosphere Options: N2, H2 with humidification
Oxygen Content Measurement: O2 content analyzer
Muffle Material: SUS 310S
Muffle Dimensions: φ750mm×900mm(d×D)
Effective Chamber Dimensions: 500×500×650mm(W×H×D)
Loading Method: Manual via horizontal guideway shelves
Heating Method: Resistance wire pre-built heating plate
Cooling Method: Air cooling with blower
Temperature Control Stability: ±1ºC (P.I.D controller)
Temperature Uniformity: ±5ºC
Thermocouple: Type K
Maximum Heating Power: 40kW
Typical Insulation Power: ≤25kW
Heating Speed: ≤5ºC/min
Furnace Surface Temperature: ≤40ºC
Maximum Vacuum Value: ≤10Pa
Alarm System: Audible and visual alarms for over-temperature, thermocouple failure, low pressure conditions, etc.
Weight: 1500kg
External Dimensions: 1650mm×1950mm×2000mm (W×H×D)

Delivery List

Item	Note	Quantity
Basic Components	Furnace	1 SET
Inspection Certificate	Certificate of major outsourced components	1 SET
Technical Documents	Instructions and technical documents	1 SET
Key Components	Heating Element (Resistance wire pre-built heating plate)	1 SET
Vacuum System		1 SET
Temperature Controller	Azbil, CHINO or equivalent brand	1 SET
Thermocouple	Type N	3 PCs
PLC	SIEMENS or equivalent brand	1 SET
Spare Parts	SSR and sealing ring	1 PC each

Facility Requirements

Environmental Conditions: 0-40ºC, humidity ≤80%RH, no corrosive gas
N2 Conditions: 99.999% purity, 0.2-0.4MPa pressure, max 6 m³/h consumption
H2 Conditions: 0.2-0.4MPa pressure, max 3m³/h consumption
Compressed Air: Dry, clean, oil-free, 0.4-0.8MPa pressure
Water Supply: Clean, non-corrosive, 0.1-0.3MPa pressure, 3-9L/min flow
Power Requirements: >55kVA, 3-phase 5-line, 220/380V, 50Hz
Installation Space: Minimum 3000mm×2500mm×3000mm (D×W×H)

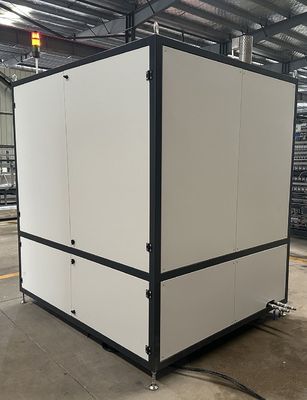

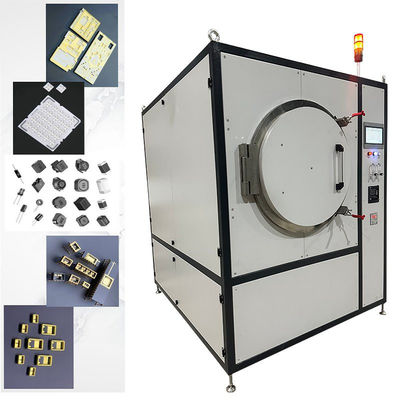

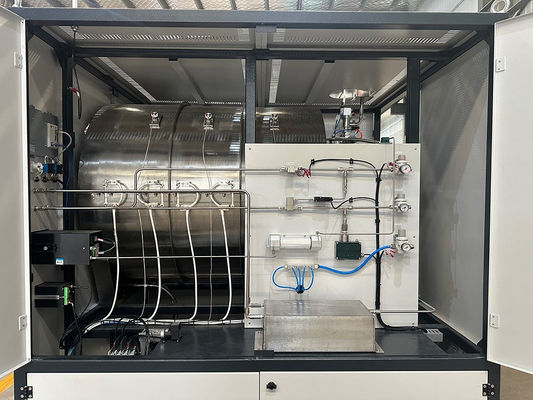

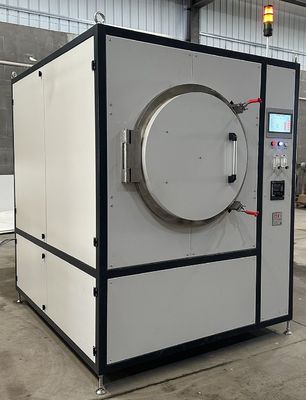

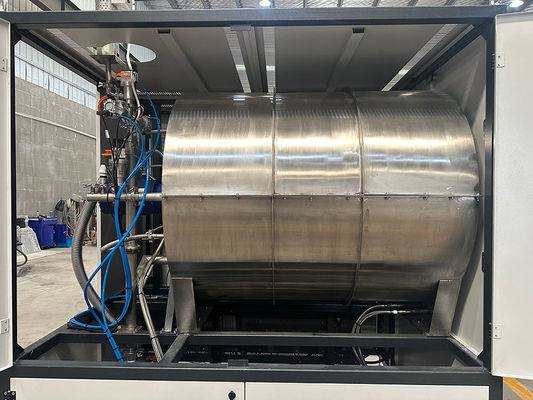

Product Images

Certifications & Packaging

Shipping Information: Contact supplier for freight and delivery time details. Payments accepted in USD with platform protection. Refund policy available for unshipped, missing, or defective orders.

Frequently Asked Questions

What products does Chitherm offer?

We provide high-quality industrial furnaces including bell furnaces, hot air furnaces, box furnaces, tube furnaces, vacuum furnaces, and specialized kilns for various thermal processes.

What pre-sales services does Chitherm provide?

We offer consultation services and highly customizable solutions to meet specific industrial furnace requirements.

What are Chitherm's core strengths?

As a high-tech enterprise, we combine R&D, manufacturing, and sales with patented technologies to deliver superior industrial furnace solutions.
