1100 ordm Max Temp Vacuum/Nitrogen/Hydrogen Industrial Furnaces Hwf160-10nh Muffle Furnace for Heat Treatment in 's Market

Name: 1100 ordm Max Temp Vacuum/Nitrogen/Hydrogen Industrial Furnaces Hwf160-10nh Muffle Furnace for Heat Treatment in 's Market
Brand: Hefei Chitherm Equipment Co., Ltd
Availability: InStock

All Products

High Temperature Box Furnace
(51)

Elevator Furnace
(30)

Hot Air Drying Oven
(19)

Atmosphere Box Furnace
(19)

Vacuum Muffle Furnace
(43)

Tube Furnace
(6)

Rotary Furnace
(4)

Waste Gas Incinerator
(4)

Continuous Annealing Furnace
(3)

Electric Muffle Furnace
(2)

Debinding Furnace
(1)

Conveyor Belt Furnace
(8)

Furnace Parts
(5)

Customer Reviews

Dear Valued Partner, Thank you for your support and trust over the past year. It is through your cooperation that we have been able to successfully achieve our goals. In the days to come, we look forward to continuing our close collaboration and creating even greater value together. — With best regards, [Chinese Academy of Sciences]

—— Chinese Academy of Sciences

I'm Online Chat Now

1100 ordm Max Temp Vacuum/Nitrogen/Hydrogen Industrial Furnaces Hwf160-10nh Muffle Furnace for Heat Treatment in 's Market

Large Image : 1100 ordm Max Temp Vacuum/Nitrogen/Hydrogen Industrial Furnaces Hwf160-10nh Muffle Furnace for Heat Treatment in 's Market

Product Details:

Contact Now

1100 ordm Max Temp Vacuum/Nitrogen/Hydrogen Industrial Furnaces Hwf160-10nh Muffle Furnace for Heat Treatment in 's Market

Description

Model NO.:	HWF160-10NH	Range Of Applications:	Industrial
Type:	Electric Holding Furnace	Usage:	Ceramic Sintering
Fuel:	Electric	Atmosphere:	Vacuum/Nitrogen/Hydrogen
Effective Chamber Dimensions:	500500650mm(WHD)	Thermcouple:	K
Max Temp:	1100ºC	Transport Package:	Wooden Packaging
Specification:	165019502000mm(WHD)	Trademark:	Chitherm
Origin:	China	HS Code:	8514101000
Supply Ability:	50 Sets/Year	Package Size:	166.00cm * 196.00cm * 201.00cm
Package Gross Weight:	1550.000kg	Customization:	Available
Certification:	ISO	Place Style:	Vertical
Shipping Cost:	Contact The Supplier About Freight And Estimated Delivery Time.	:	Support Payments In USD
Secure Payments:	Every Payment You Make On Made-in-China.com Is Protected By The Platform.	Refund Policy:	Claim A Refund If Your Order Doesn't Ship, Is Missing, Or Arrives With Product Issues.

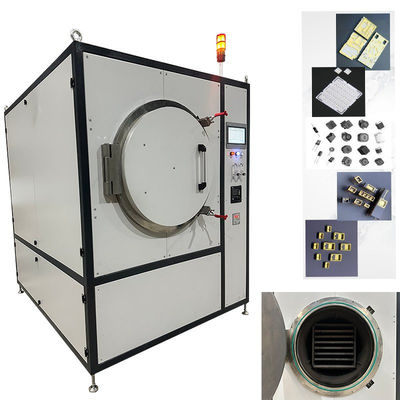

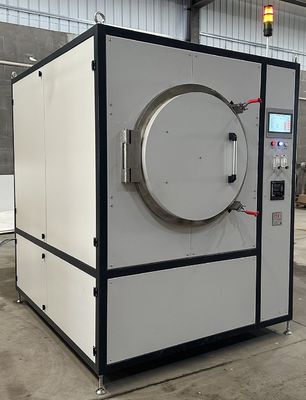

HWF160-10NH Muffle Furnace for Heat Treatment

Key Specifications

Attribute	Value
Model NO.	HWF160-10NH
Type	Electric Holding Furnace
Max Temperature	1100°C
Atmosphere	Vacuum/Nitrogen/Hydrogen
Effective Chamber Dimensions	500×500×650mm (W×H×D)
Thermocouple	Type K
Certification	ISO
Supply Ability	50 Sets/Year

Product Overview

This industrial muffle furnace is designed for high-temperature processes including soldering, decarburization, annealing, quenching, and thermal decomposition. With a maximum temperature of 1100°C and support for vacuum, nitrogen, and hydrogen atmospheres, it's ideal for ceramic sintering and heat treatment applications.

Technical Specifications

Rated Temperature: 900°C
Muffle Material: SUS 310S
Heating Method: Resistance wire pre-built heating plate
Temperature Control Stability: ±1°C
Temperature Uniformity: ±5°C
Max Heating Power: 40kW
Cooling Method: Air cooling with blower

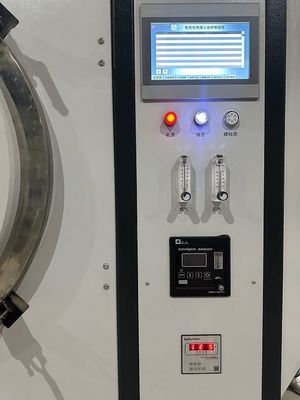

Alarm System: Audible and visual alarms for safety conditions

Product Images

Delivery Contents

Item	Description	Quantity
Basic Components	Furnace	1 SET
Technical Documents	Instructions and technical documents	1 SET
Key Components	Heating Element, Vacuum System, PLC	1 SET each
Spare Parts	SSR, Sealing ring	1 PC each

Facility Requirements

Power: 3-phase 220/380V, 50Hz, capacity >55kVA
N2 Purity: 99.999%, working pressure 0.2-0.4MPa
Compressed Air: Dry, clean, oil-free, 0.4-0.8MPa
Installation Space: Minimum 3000×2500×3000mm (D×W×H)
Floor Load: >500 kg/m²

Certifications & Packaging

About Chitherm

Hefei Chitherm Equipment Co., Ltd. specializes in high-quality industrial and laboratory furnaces for applications in advanced ceramics, electronic components, powder metallurgy, and new energy sectors. Our product range includes vacuum furnaces, tube furnaces, and specialized heat treatment solutions.

Frequently Asked Questions

What products does Chitherm offer?

We provide high-quality bell furnaces, hot air furnaces, box furnaces, tube furnaces, vacuum furnaces, and specialized heat treatment solutions for industrial applications.

What are Chitherm's core strengths?

As a high-tech enterprise, Chitherm combines R&D, manufacturing, and sales expertise with patented technologies to deliver superior thermal processing solutions.
