s Top-Selling Hwf160-10nh Vacuum Muffle Furnace Effective Chamber Dimensions of 500500650mm for Industrial Applications

Large Image : s Top-Selling Hwf160-10nh Vacuum Muffle Furnace Effective Chamber Dimensions of 500*500*650mm for Industrial Applications

Product Details:

Contact Now

s Top-Selling Hwf160-10nh Vacuum Muffle Furnace Effective Chamber Dimensions of 500500650mm for Industrial Applications

Description

Model NO.:	HWF160-10NH	Range Of Applications:	Industrial
Type:	Electric Holding Furnace	Usage:	Ceramic Sintering
Fuel:	Electric	Atmosphere:	Vacuum/Nitrogen/Hydrogen
Effective Chamber Dimensions:	500500650mm(WHD)	Thermcouple:	K
Max Temp:	1100ºC	Transport Package:	Wooden Packaging
Specification:	165019502000mm(WHD)	Trademark:	Chitherm
Origin:	China	HS Code:	8514101000
Supply Ability:	50 Sets/Year	Package Size:	166.00cm * 196.00cm * 201.00cm
Package Gross Weight:	1550.000kg	Customization:	Available
Certification:	ISO	Place Style:	Vertical
Shipping Cost:	Contact The Supplier About Freight And Estimated Delivery Time.	:	Support Payments In USD
Secure Payments:	Every Payment You Make On Made-in-China.com Is Protected By The Platform.	Refund Policy:	Claim A Refund If Your Order Doesn't Ship, Is Missing, Or Arrives With Product Issues.

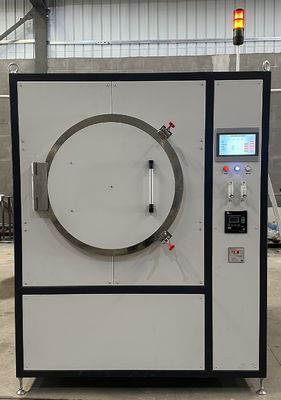

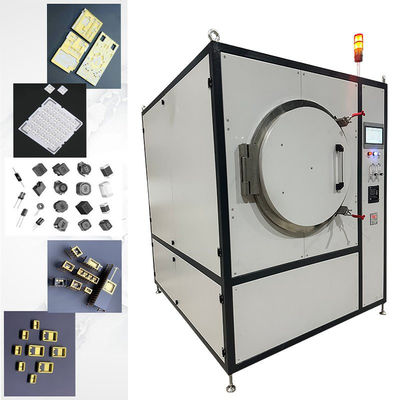

HWF160-10NH Vacuum Muffle Furnace with 500×500×650mm Chamber for Industrial Applications

Product Overview

The HWF160-10NH vacuum muffle furnace is designed for precision industrial thermal processes including ceramic sintering, metal soldering, decarburization, annealing, quenching, and hardening. With a maximum temperature of 1100°C and versatile atmosphere control (vacuum, nitrogen, or hydrogen), this electric furnace delivers reliable performance for demanding applications.

Key Specifications

Attribute	Value
Model Number	HWF160-10NH
Effective Chamber Dimensions	500×500×650mm (W×H×D)
Maximum Temperature	1100°C
Atmosphere Options	Vacuum/Nitrogen/Hydrogen
Thermocouple Type	K
Heating Power	40kW
Temperature Uniformity	±5°C
Certification	ISO
Origin	China

Technical Features

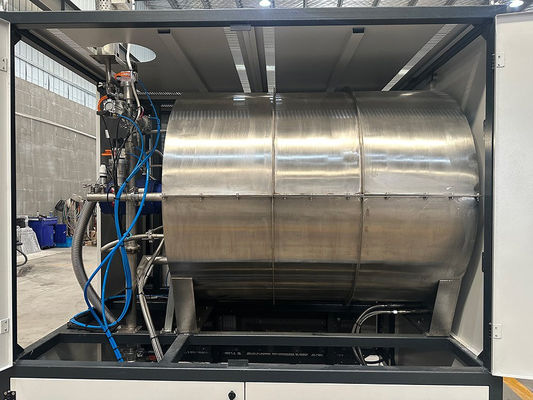

Muffle Material: High-grade SUS 310S stainless steel

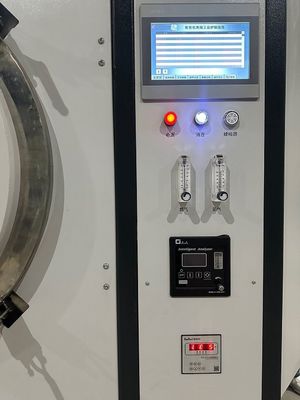

Temperature Control: 3-point control with ±1°C stability (PID controller)
Heating Method: Resistance wire pre-built heating plate
Cooling System: Air cooling with blower
Safety Features: Comprehensive alarm system for over-temperature, thermocouple failure, low pressure conditions

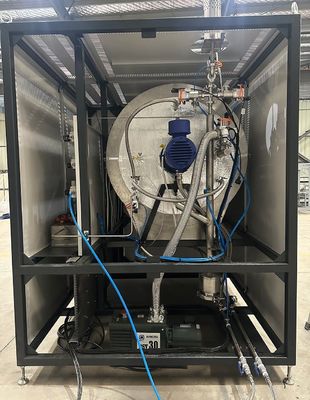

Vacuum Performance: Maximum vacuum value ≤10Pa
Construction: Vertical design with light grey exterior

Product Images

Standard Delivery Contents

Component	Details	Quantity
Furnace Unit	Complete assembly	1 Set
Temperature Controller	Azbil, CHINO or equivalent	1 Set
PLC System	SIEMENS or equivalent	1 Set
Vacuum System	Complete assembly	1 Set
Documentation	Operation manual, certificates	1 Set

Facility Requirements

Power Supply: 3-phase 220/380V, 50Hz, capacity >55kVA
Installation Space: Minimum 3000×2500×3000mm (D×W×H)

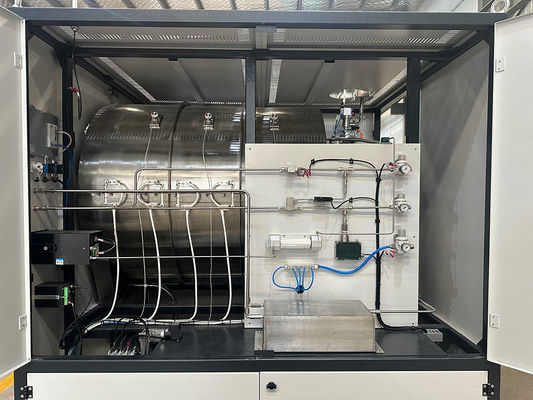

Gas Supply: N2 (99.999% purity), H2 (working pressure 0.2-0.4MPa)
Environmental Conditions: 0-40°C, humidity ≤80%RH, no corrosive gases
Floor Load: Minimum 500kg/m² capacity

Certifications & Packaging

Manufacturer Information

Hefei Chitherm Equipment Co., Ltd. specializes in advanced industrial furnace technology, offering comprehensive R&D, manufacturing, and service solutions. Our product range includes vacuum furnaces, tube furnaces, bell furnaces, and specialized thermal processing equipment for applications in ceramics, electronics, powder metallurgy, and new energy sectors.

Frequently Asked Questions

What industrial processes is this furnace suitable for?

The HWF160-10NH is designed for ceramic sintering, metal soldering (including HTCC packages), decarburization, annealing, quenching, hardening, and thermal decomposition processes.

What customization options are available?

We offer customization of temperature ranges, chamber sizes, control systems, and specific process requirements to match your application needs.

What support is included with purchase?

Each furnace comes with complete documentation, technical support, and optional installation/operator training services.
