Product Details:

Contact Now

Support Payments in USD -Made Electric Industrial Heat Treatment Furnace Hwf160-10nh Vacuum Atmospheric Furnace Efficien

Description

Model NO.:	HWF160-10NH	Range Of Applications:	Industrial
Type:	Electric Holding Furnace	Usage:	Ceramic Sintering
Fuel:	Electric	Atmosphere:	Vacuum/Nitrogen/Hydrogen
Effective Chamber Dimensions:	500500650mm(WHD)	Thermcouple:	K
Max Temp:	1100ºC	Transport Package:	Wooden Packaging
Specification:	165019502000mm(WHD)	Trademark:	Chitherm
Origin:	China	HS Code:	8514101000
Supply Ability:	50 Sets/Year	Package Size:	166.00cm * 196.00cm * 201.00cm
Package Gross Weight:	1550.000kg	Customization:	Available
Certification:	ISO	Place Style:	Vertical
Shipping Cost:	Contact The Supplier About Freight And Estimated Delivery Time.	:	Support Payments In USD
Secure Payments:	Every Payment You Make On Made-in-China.com Is Protected By The Platform.	Refund Policy:	Claim A Refund If Your Order Doesn't Ship, Is Missing, Or Arrives With Product Issues.

Electric Industrial Heat Treatment Furnace HWF160-10NH Vacuum Atmospheric Furnace

Product Overview

Model: HWF160-10NH

Applications: Industrial ceramic sintering, metal soldering, decarburization, annealing, quenching, and hardening

Atmosphere: Vacuum/Nitrogen/Hydrogen

Max Temperature: 1100°C

Certification: ISO

Technical Specifications

Parameter	Value
Effective Chamber Dimensions	500×500×650mm (W×H×D)
Muffle Material	SUS 310S
Heating Method	Resistance wire pre-built heating plate
Temperature Control Stability	±1°C
Temperature Uniformity	±5°C
Max Heating Power	40kW
Weight	1500kg
External Dimensions	1650×1950×2000mm (W×H×D)

Key Features

Advanced temperature control system with PID function
Comprehensive alarm system for over-temperature, thermocouple failure, and other critical conditions
Multiple atmosphere options (Vacuum/N2/H2)
Energy efficient insulation with ≤25kW typical power consumption

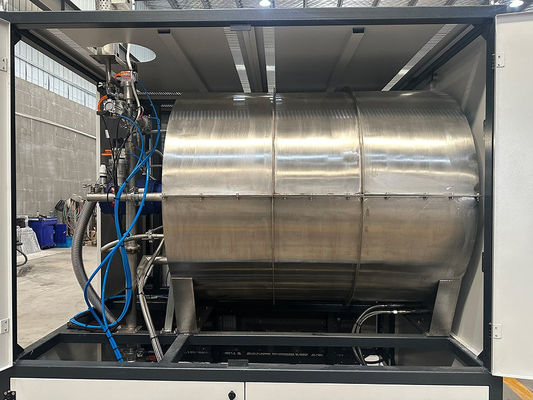

Robust construction with SUS 310S muffle material

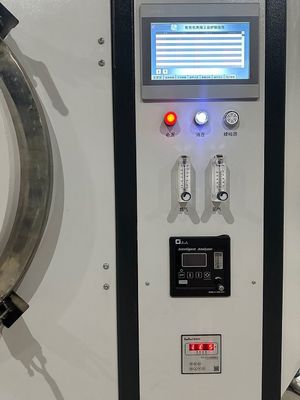

User-friendly touch screen interface

Delivery Contents

Item	Description	Quantity
Furnace Unit	Complete furnace assembly	1 SET
Temperature Controller	Azbil, CHINO or equivalent	1 SET
PLC System	SIEMENS or equivalent	1 SET
Thermocouples	Type K	3 PCs
Technical Documents	Operation manual and certificates	1 SET

Facility Requirements

Power: 3-phase 220/380V, 50Hz, capacity >55kVA
N2 Supply: 99.999% purity, 0.2-0.4MPa working pressure
H2 Supply: 0.2-0.4MPa working pressure
Compressed Air: Dry, clean, oil-free, 0.4-0.8MPa
Installation Space: Minimum 3000×2500×3000mm (D×W×H)
Floor Load: >500kg/m²

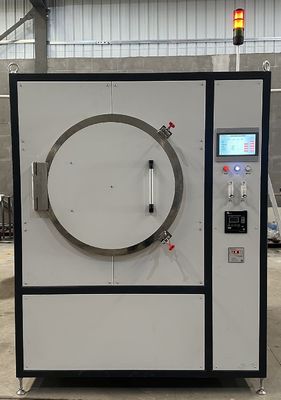

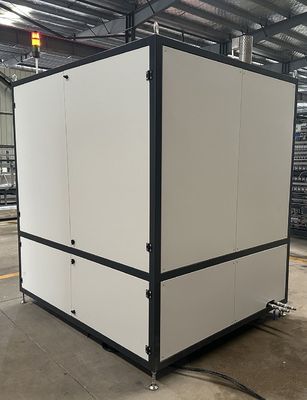

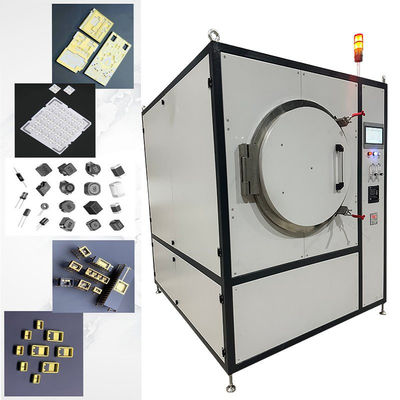

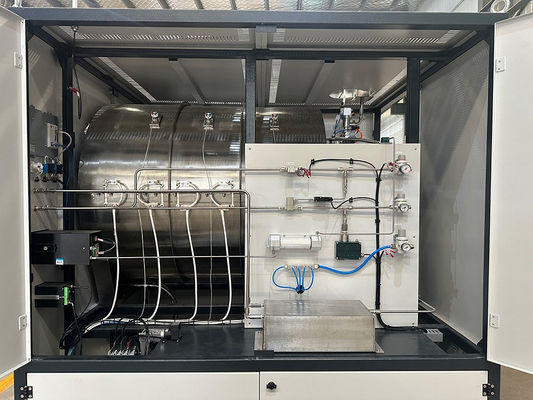

Product Images

Manufacturer Information

Hefei Chitherm Equipment Co., Ltd. specializes in the R&D and manufacturing of high-quality industrial furnaces for applications in advanced ceramics, electronic components, powder metallurgy, and new energy sectors. Our product range includes vacuum furnaces, tube furnaces, mesh belt furnaces, and pusher furnaces designed for various thermal treatment processes.

Payment & Shipping

Secure USD payments via Made-in-China.com platform
Refund policy for undelivered or defective products
Standard wooden packaging (166×196×201cm, 1550kg)
Contact supplier for freight and delivery estimates
Annual production capacity: 50 sets
