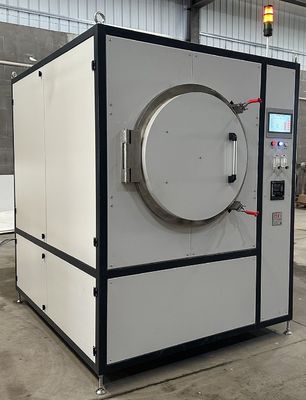

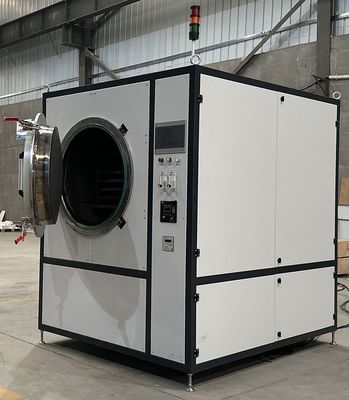

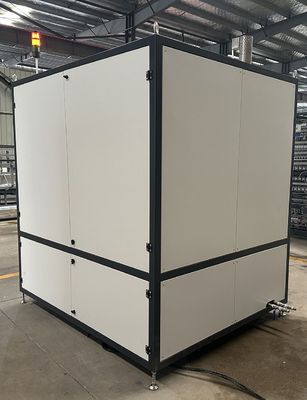

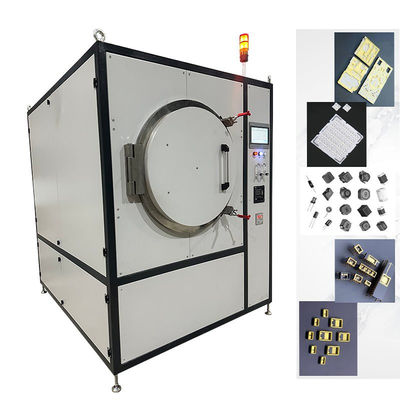

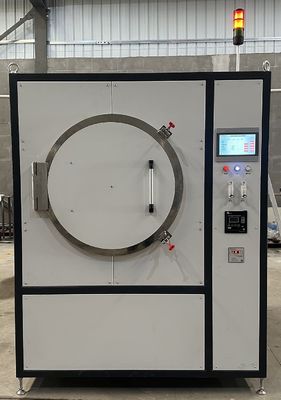

Fuel Electric -Made Phi 750 times 900mm Industrial Muffle Furnace Hwf160-10nh Vacuum Furnace Vertical Place Style

2. Technical Specification:

1. Rated Temp: 900ºC
2. Max Temp: 1100ºC
3. Atmosphere: N₂, H₂, with humidification
4. Oxygen Content: Measured by O₂ content analyzer
5. Muffle Material: SUS 310S
6. Muffle Dimensions: φ750mm×900mm(d×D)
7. Effective Chamber Dimensions: 500×500×650mm(W×H×D)
8. Loading Method: Manual, through horizontal guideway shelves
9. Heating Method: Resistance wire pre-built heating plate
10. Cooling Method: Air cooling with blower
11. Temp. Control Stability: ± 1ºC(controller with P.I.D function)
12. Profile Steps: Default 20 steps
13. Temp. Uniformity: ± 5ºC
14. Thermcouple: Type K
15. Temp Control: 3 Points
16. Temp. Measurement: 1 Point
17. Max. Heating Power: 40kW
18. Typical Insulation Power: ≤ 25kW
19. Heating Speed: ≤ 5ºC/min
20. Furnace Surface Temperature: ≤ 40ºC
21. Max Vacuum Value: ≤ 10Pa
22. Exhaust System: 1 exhaust port on the top with H₂ igniter
23. Alarm System: audible and visual alarm in case of over temp, thermcouple broken, low air pressure, low water pressure, substandard vacuum level, etc
24. Weight: 1500kg
25. Appearance Colour: Light Grey
26. External Dimensions: 1650mm×1950mm×2000mm (W×H×D)

1. Environmental Conditions: temp.: 0~40ºC, humidity ≤ 80%RH, no corrosive gas, no strong airflow disturbance
2. N₂ Conditions: 99.999% purity, working pressure: 0.2-0.4MPa, Max gas consumption 2-6 m³/h
3. H₂ Conditions: working pressure: 0.2-0.4MPa, Max gas consumption 1-3m³/h
4. Compressed Air Condition: dry, clean, oil-free, working pressure: 0.4-0.8MPa
5. Water Conditions: clean, no corrosive water, working pressure 0.1-0.3MPa, 3-9L/min
6. Ventilation System: non-contact access to the user pumping system, pumping capacity is greater than 15m³/h
7. Ground Requirements: horizontal, no obvious vibration, load-bearing> 500 kg/m²;
8. Power Condition(TBD): capacity > 55kVA, 3-phases 5-lines, voltage 220/380V, frequency 50Hz. Fire line: yellow, green, red, Zero line: blue, Ground line: yellow-green;
9. Installation Site: 3000mm×2500mm×3000mm(D×W×H), with an installation area greater than 7.5m².
