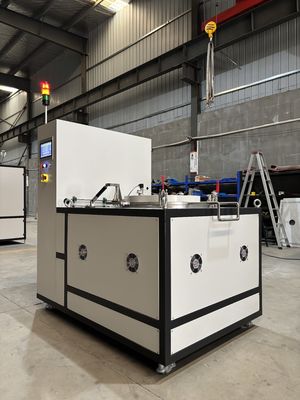

Industrial Electric Furnace Hwf6630-10 Type Tank-Type Gas Phase Deposition Furnace

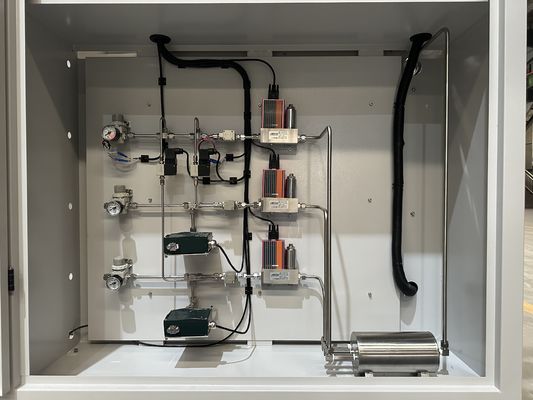

The HWF6630-10 tank vapor deposition furnace is designed for medium-temperature heat treatment of electronic products. It supports vapor phase reaction processes in nitrogen, acetylene, and hydrogen atmospheres, as well as sintering processes under protective atmospheres. Equipped with a real-time computer monitoring system, this furnace is ideal for material process testing in research environments.

• Model: HWF6630-10
• Rated Temperature: 750°C
• Maximum Temperature: 1000°C
• Heating Zone Dimensions: Φ660×300mm (D×H)
• Chamber Material: SUS310S
• Maximum Heating Power: 16kW
• Heating Method: Bottom + Surrounding
• Temperature Control Points: 2 (Bottom + Side)
• Thermocouple Type: K-type
• Heating Element: FEC Ceramic Fiber Heater

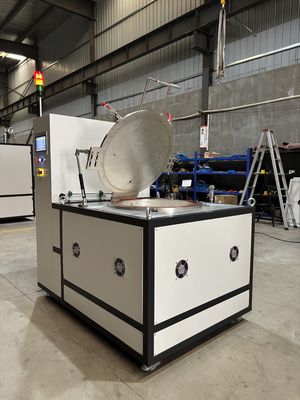

• Door Opening Method: Top-opening design
• Temperature Stability: ±1°C
• Temperature Control Instrument: Imported PID auto-tuning module
• Program Steps: 20 steps
• Alarm Protection: Over-temperature and thermocouple breakage alarms
• Surface Temperature Rise: <35°C
• Equipment Weight: Approx. 750kg
• Overall Dimensions: 1185×1745×1780mm (W×D×H)

About Hefei Chitherm Equipment Co., Ltd.

Specializing in R&D, manufacturing, and sales of industrial and laboratory furnaces, our product range includes bell furnaces, box furnaces, vacuum furnaces, and more. These are widely used in advanced ceramics, electronic components, powder metallurgy, new energy, and other material processing applications.
