HWF100-10NH type atmosphere sintering furnace, made in China

HWF100-10NH type atmosphere sintering furnace, made in China
HWF100-10NH type atmosphere sintering furnace, made in China HWF100-10NH type atmosphere sintering furnace, made in China HWF100-10NH type atmosphere sintering furnace, made in China HWF100-10NH type atmosphere sintering furnace, made in China HWF100-10NH type atmosphere sintering furnace, made in China HWF100-10NH type atmosphere sintering furnace, made in China HWF100-10NH type atmosphere sintering furnace, made in China HWF100-10NH type atmosphere sintering furnace, made in China

Large Image :  HWF100-10NH type atmosphere sintering furnace, made in China

Product Details:
Place of Origin: China
Brand Name: Chitherm
Model Number: Hwf100-10nh
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Customized
Delivery Time: Customized
Payment Terms: Customized
Supply Ability: Customized
Contact Now Chat Now

HWF100-10NH type atmosphere sintering furnace, made in China

Description
Certification: ISO Place Style: Vertical
Range Of Applications: Industrial Type: Electric Holding Furnace
Usage: Ceramic Sintering Fuel: Electric
Atmosphere: Nitrogen/Hydrogen Effective Chamber Dimensions: 500*500*650mm(W*H*D)
Transport Package: Wooden Packaging Specification: 1500*1950*2200mm(W*H*D)
Trademark: Chitherm Origin: China
HS Code: 8514101000 Supply Ability: 50 Sets/Year
Customization: Available

HWF100-10NH Type Atmosphere Sintering Furnace, Made in China
Product Attributes
Attribute Value
Certification ISO
Place Style Vertical
Range of Applications Industrial
Type Electric Holding Furnace
Usage Ceramic Sintering
Fuel Electric
Atmosphere Nitrogen/Hydrogen
Effective Chamber Dimensions 500*500*650mm(W*H*D)
Transport Package Wooden Packaging
Specification 1500*1950*2200mm(W*H*D)
Trademark Chitherm
Origin China
HS Code 8514101000
Supply Ability 50 Sets/Year
Customization Available
Product Overview

Model: HWF100-10NH

Application: Designed for medium-temperature heat treatment of electronic products, including electronic ceramics, dielectric materials, and conductors, under nitrogen/hydrogen protective atmospheres.

Key Technical Specifications
Item Specification
Operating Temperature Up to 900°C
Maximum Temperature 1000°C
Effective Furnace Chamber Size 400 × 400 × 650 mm (W × H × D)
Heating Element FEC Ceramic Fiber Heater (high efficiency, energy-saving, long lifespan)

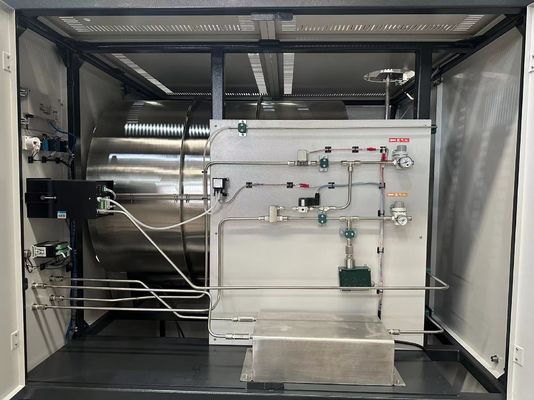

Process Atmosphere Nitrogen / Hydrogen (suitable for protective atmosphere heat treatment)
Exhaust System Exhaust port located on the top of the furnace chamber for atmosphere control and safety venting
Cooling Method Natural cooling inside the furnace (suitable for processes not requiring rapid cooling)

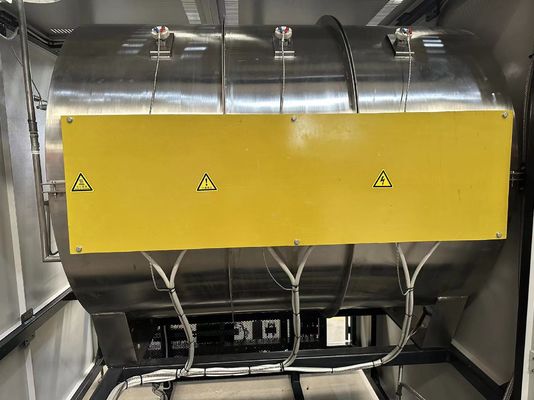

Temperature Control Points 3 independent control points (front, middle, rear) for improved temperature uniformity
Temperature Control Segments 9 programmable segments (supports complex heat treatment processes)
Temperature Stability ±1°C (high precision control)
Temperature Controller Yokogawa (Japan) intelligent program temperature controller with PID auto-tuning function
Temperature Uniformity Better than ±5°C (tested under 900°C for 1 hour in an empty furnace)

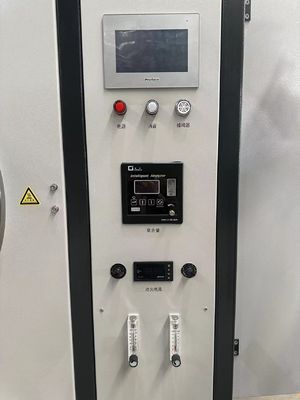

Control Method Touchscreen + PLC centralized control (user-friendly and highly automated)
Alarm Protection Over-temperature, thermocouple breakage, and other audio-visual alarms; includes over-temperature power cut-off protection; loud alarm sound for safety alerts
Surface Temperature Rise ≤35°C (ensures safe operation and minimal external heat emission)
Maximum Heating Power 30 kW
Holding Power ≤15 kW (energy-efficient design)
Power Supply Requirement Capacity >40 kVA, 3-phase 5-wire, 220/380VAC, 50Hz
Overall Dimensions (Reference) 1500 × 1950 × 2200 mm (W × H × D)
Product Features and Advantages
  • Energy Efficiency: Equipped with FEC ceramic fiber heaters for fast heating, excellent thermal insulation, and low energy consumption.
  • High-Precision Temperature Control: 3 independent control zones + 9 programmable segments enable precise temperature management with stability of ±1°C and uniformity better than ±5°C, meeting demanding process requirements.
  • Protective Atmosphere Compatibility: Supports nitrogen/hydrogen atmospheres, ideal for heat treatment of oxidation-sensitive materials, enhancing product performance and quality.
  • Intelligent Control System: Utilizes Yokogawa (Japan) intelligent temperature controller integrated with PLC and touchscreen interface, offering easy operation and PID auto-tuning for complex process profiles.
  • Safety and Reliability: Multiple protection features including over-temperature and thermocouple breakage alarms, audio-visual alerts, and automatic power cut-off for enhanced operational safety.
  • Robust Design: Compact furnace chamber suitable for small to medium batch production; low surface temperature rise ensures safe handling and reduced external heat emission.
Typical Applications
  • Sintering of electronic ceramics
  • Heat treatment of dielectric materials
  • Hydrogen/nitrogen-protected annealing of conductive materials
  • Atmosphere-controlled heat treatment processes (e.g., reduction, inert atmosphere protection, etc.)
HWF100-10NH type atmosphere sintering furnace, made in China 0
Delivery List
Item Note Qty.
Basic Components Furnace 1 SET
Inspection Certificate Certificate of major outsourced components 1 SET
Technical Documents Instructions, technical documents of the major outsourced parts, etc 1 SET
Key Components Micro-oxygen analyzer 1 SET
Temperature Controller 1 SET
Thermocouple Type K 3 PCs
Spare Parts SSR 1 PC

Hefei Chitherm Equipment Co., Ltd. is an advanced equipment supplier specializing in the research and development, design, manufacturing, sales, maintenance, and service of high-, medium-, and low-temperature industrial furnaces and laboratory furnaces. Its product range encompasses bell furnaces, box furnaces, hot air furnaces, vacuum furnaces, tube furnaces, mesh belt furnaces, bogie hearth furnaces, rotary furnaces, roller hearth furnaces, and pusher furnaces, which are extensively applied in fields such as advanced ceramics, electronic components, thick-film circuits, additive manufacturing, powder metallurgy, new energy, and photovoltaics. These furnaces are suitable for thermal treatment processes of materials including ITO targets, MLCC/HTCC/LTCC, ceramic filters, magnetic materials, CIM/MIM, and lithium battery cathodes and anodes, as well as various other new material processes such as pre-sintering, dewaxing, degreasing, sintering, drying, heat treatment, curing, and ceramization.

HWF100-10NH type atmosphere sintering furnace, made in China 1 HWF100-10NH type atmosphere sintering furnace, made in China 2 HWF100-10NH type atmosphere sintering furnace, made in China 3 HWF100-10NH type atmosphere sintering furnace, made in China 4 HWF100-10NH type atmosphere sintering furnace, made in China 5
