II. Key Performance & Technical Parameters

Temperature System

• Maximum temperature: 1000ºC
• Long-term operating temperature: 900ºC
• Heating rate: ≤5 ºC/min
• Temperature control accuracy: ±1ºC
• Temperature uniformity: ±5ºC (measured at 900ºC with empty furnace for 1 hour)
• Temperature control mode: 3 independent control zones (front, middle, rear); 9-segment programmable.

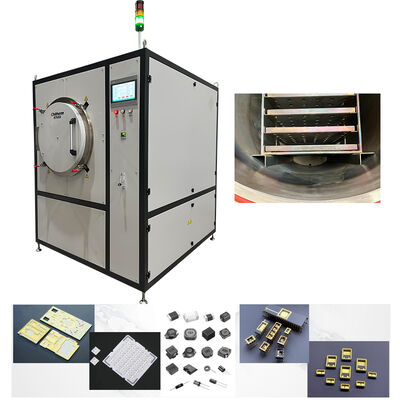

Working Space

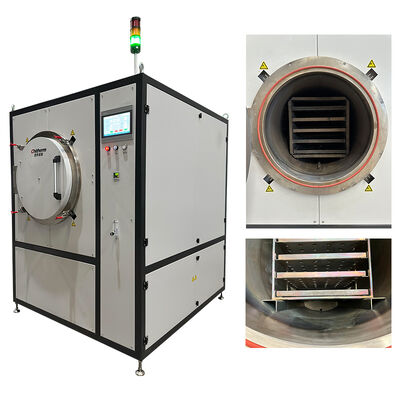

• Effective working chamber: 400mm (W) × 400mm (H) × 650mm (D)

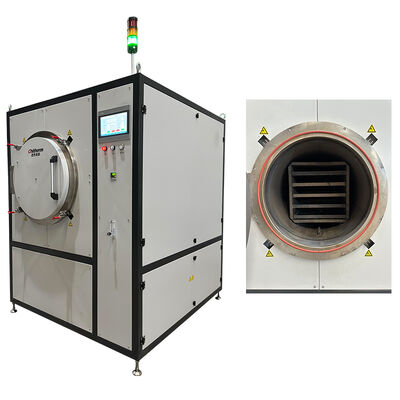

• Furnace retort size: Φ630mm (Dia.) × 900mm (L)

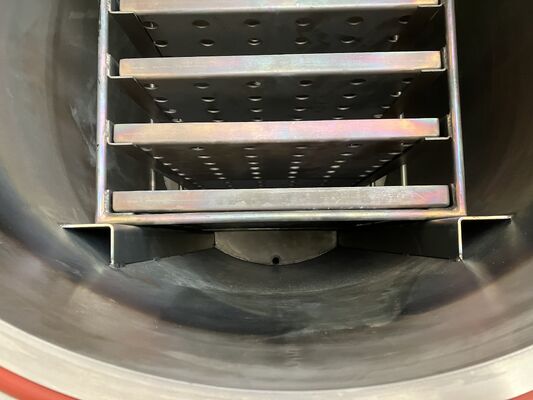

• Furnace retort material: SUS310S heat-resistant stainless steel

Atmosphere & Purification System

• Working atmosphere: Nitrogen, nitrogen-hydrogen mixture

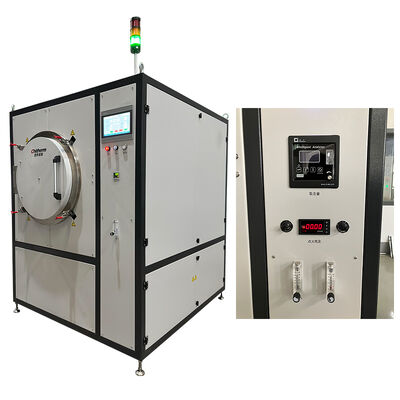

• Atmosphere purity: Oxygen content in furnace ≤ 20 ppm (plus oxygen content in supply gas), monitored in real time by micro oxygen analyzer.

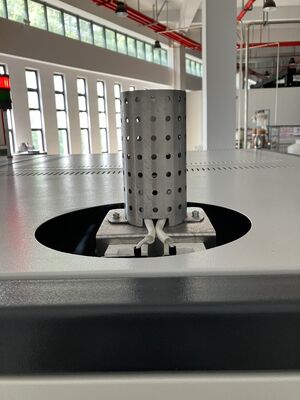

• Exhaust treatment: Auto-ignition device installed at exhaust port to burn residual hydrogen in waste gas.

Main Configuration & Power Consumption

• Heating element: FEC ceramic fiber heater
• Design power: 30 kW
• Typical holding power: ≤15 kW
• Cooling method: Natural cooling
• Thermocouple type: K-type

Physical Parameters

• Overall dimensions (approx.): 1500mm (W) × 1950mm (H) × 2200mm (D)
• Net weight (approx.): 1100 kg
• Surface temperature rise: <35ºC
• Equipment color: Light gray

III. Required Operating Conditions

• Power supply: 3-phase 5-wire, capacity > 40 kVA, voltage 380V/220V ±10%, 50Hz.
• Protective gases:
  • High-purity nitrogen: Purity ≥ 99.999%, inlet pressure 0.2-0.4 MPa, consumption approx. 2-6 m³/h.
  • Hydrogen: Inlet pressure 0.2-0.4 MPa, consumption approx. 0.2-0.6 m³/h.


• Cooling water: Pressure 0.1-0.3 MPa, clean and non-corrosive, flow rate 1-3 L/min.
• Ventilation: Connected to external exhaust system with capacity > 10 m³/h.
• Installation environment:
  • Space: Recommended installation area ≥ 3200mm(D) × 2500mm(W) × 3000mm(H), floor area > 8 m².
  • Ambient: Temperature 0-40ºC, relative humidity ≤80% RH, no corrosive gas or strong air disturbance.
  • Load bearing: Level floor, load capacity > 500 kg/m², no obvious vibration.



IV. Safety Protection Functions

• Over-temperature alarm and protection
• Thermocouple break alarm
• Low gas pressure alarm
• Low cooling water pressure alarm
• Exhaust ignition failure alarm
