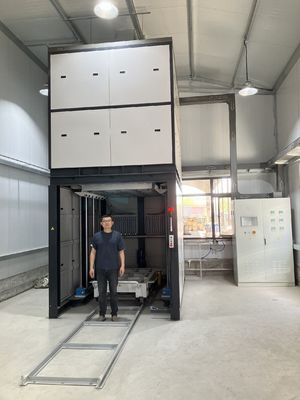

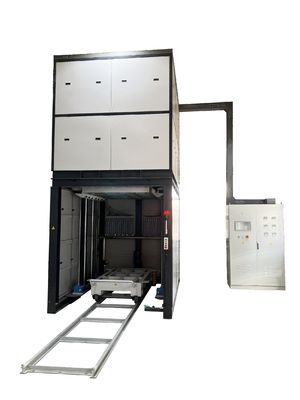

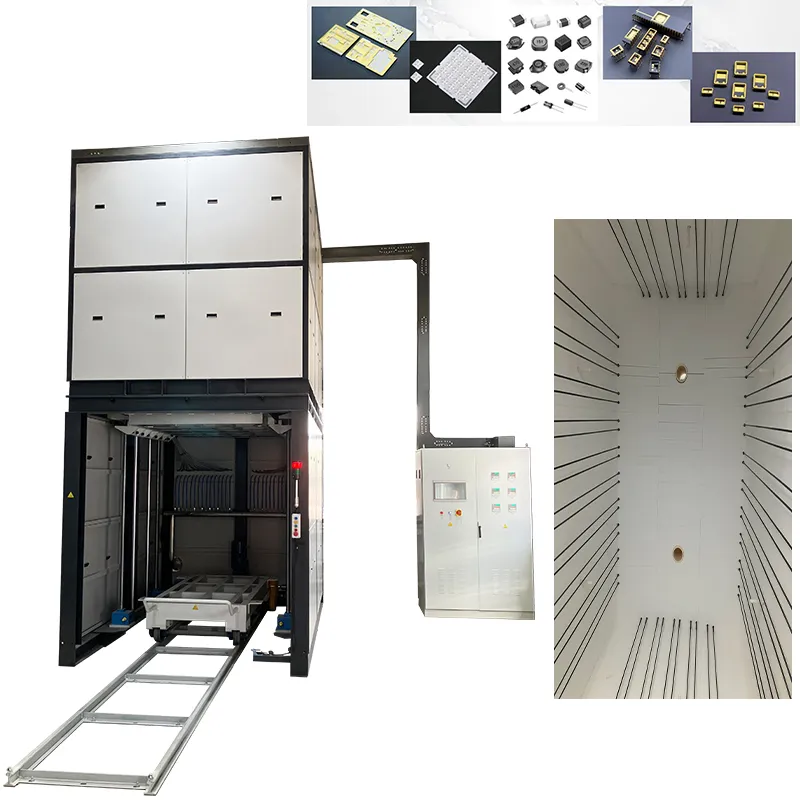

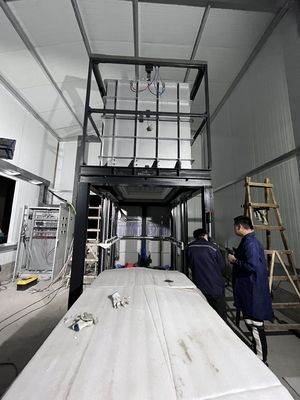

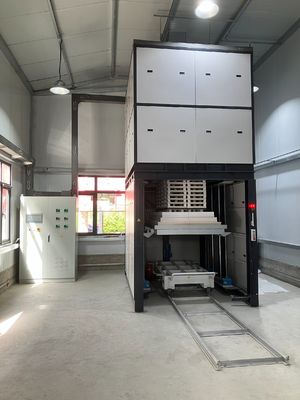

Bf1500-15o Industrial Furnace, High-Temperature Bell Furnace Can Be Used for Electronic Ceramic Components

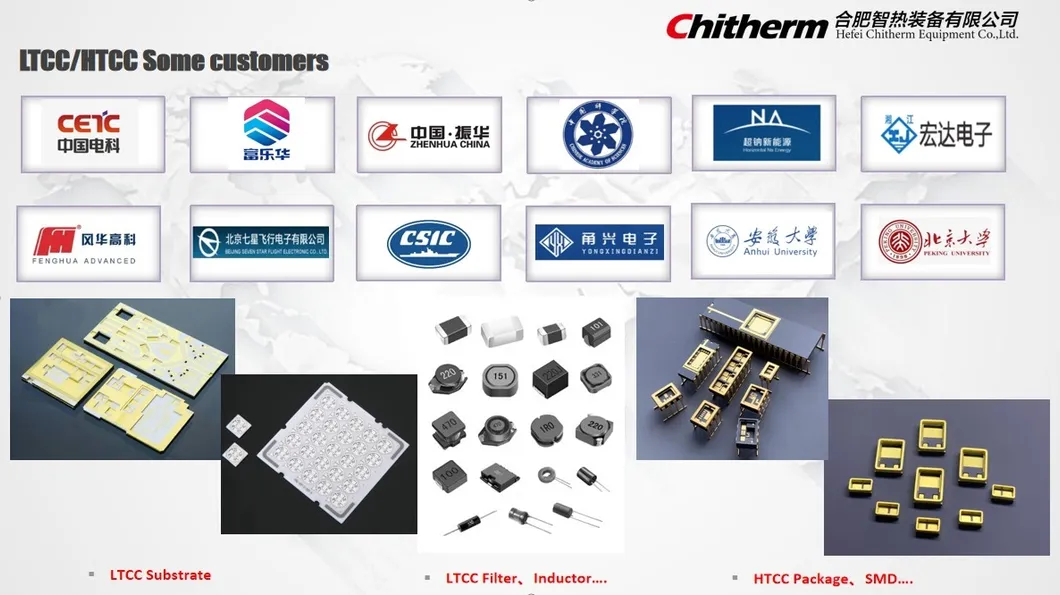

This equipment is mainly designed for  electronic ceramic materials, magnetic materials, ceramic filters, etc. require high uniformity of temperature field or multi-species small batch production occasions.

2. Technical Specification:

1. Rated Temp.:1400ºC
2. Max Temp.:1500ºC
3. Effective Dimensions:1600mm×1250mm×800mm(D×W×H)
4. Heating Method: U-shaped silicon molybdenum heater
5. Thermcouple: Type S
6. Temperature Control: 6 Points
7. Temp. Set Accuracy: ±1ºC(flat temp. insulation)
8. Temp. Control Mode:control module imported from Japan with PID
9. Heat-up Rate : ≤2.5ºC/min
10. Temp. Uniformity: ± 5ºC (empty furnace insulation test 2hours under 1400ºC)
11. Program Tracking Accuracy: ±2ºC (>600ºC)
12. Furnace Surface Temperature ≤ 40ºC
13. Maximum Lifting Trip:800mm

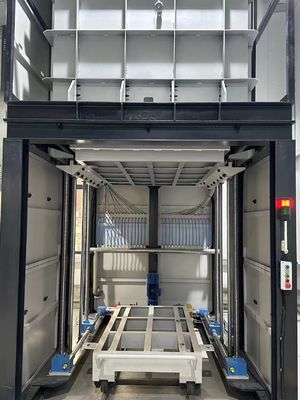

14. Lift System: the equipment lifting operation system adopts three-point control, which can be stopped at any time, with stable and reliable operation
15. Loading Weight ≤ 1000kg (with firing furniture and products)

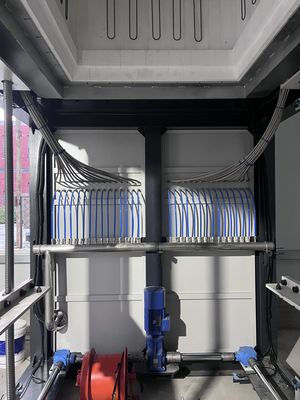

16. Atmosphere Control : four channels of air inlet, each channel of air flow is controlled by the glass rotor flowmeter, single range of 12 ~ 120L / min
17. Exhaust System : 2 exhaust chimney are set at the top with auto switch function
18. Alarm System : with over-temperature, broken couple, overload, over-range, deviation and other sound and light alarm protection function
19. Maximum Heating Power:180kW
20. Insulation Power:≤ 90kW
21. External Dimensions: 3280×4600×2240mm(D×W×H) (without control cabinet)
22. Appearance Color: Light gray

3. Delivery List

4. Equipment Normal Operating Conditions

1. Environmental Conditions: temperature: 0~40ºC, humidity≤ 80%RH, no corrosive gas, no strong airflow disturbance;
2. Atmosphere Conditions: dry, clean, oil-free compressed air, working pressure of 0.4-  0.8MPa, gas consumption of 30 - 90 m³/h;
3. Ventilation System: non-contact access to the user pumping system, pumping capacity is greater than 100 m³/h
4. Ground Requirements: horizontal, no obvious vibration, load-bearing> 600 Kg/m²;
5. Power Condition(TBD): capacity > 240kVA, 3-phases 5-lines, voltage 220 / 380V, frequency 50Hz. Fire line: yellow, green, red, Zero line: blue, Ground line: yellow-green;
6. Installation Site: 4000mm×4000mm×5000mm(D×W×H), with an installation area greater than 20m².
