Product Details:
Place of Origin: China
Brand Name: Chitherm
Model Number: HBF105-14
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Customized
Delivery Time: Customized
Payment Terms: Customized
Supply Ability: Customized
Contact Now

5+2 Design Voltage Modulation Atmosphere Box Furnace Energy-Efficient Atmosphere Box Furnace

Description
Range Of Applications: Industrial Type: Electric Holding Furnace
Usage: Steel Molding Fuel: Electric
Effective Chamber Dimensions: 400*330*800mm(W*H*D) Setter Plate: Corundum-Mullite
Transport Package: Wooden Package Specification: 850*900*1200mm (W*H*D)
Trademark: Chitherm Origin: China
HS Code: 8514101000 Supply Ability: 50 Sets/Year
Customization: Available Certification: ISO
Place Style: Vertical
Highlight:

Voltage Modulation Atmosphere Box Furnace

,

5+2 Design Atmosphere Box Furnace

,

Energy-Efficient Atmosphere Box Furnace

5+2 Design Voltage Modulation Atmosphere Box Furnace Energy-Efficient Atmosphere Box Furnace
Product Attributes
Attribute Value
Range of Applications Industrial
Type Electric Holding Furnace
Usage Steel Molding
Fuel Electric
Effective Chamber Dimensions 400*330*800mm(W*H*D)
Setter Plate Corundum-Mullite
Transport Package Wooden Package
Specification 850*900*1200mm (W*H*D)
Trademark Chitherm
Origin China
HS Code 8514101000
Supply Ability 50 Sets/Year
Customization Available
Certification ISO
Place Style Vertical
Technical Specifications
I. Sintering Furnace Parameters
  • Equipment Name/Model: HBF105-14 Sintering Furnace
  • Dimensions: 850mm (W) × 900mm (H) × 1200mm (D), light gray exterior
  • Temperature Performance:
    • Rated Operating Temperature: 1300°C (recommended range for standard processes)
    • Maximum Limit Temperature: 1500°C (short-term achievable)
  • Furnace Structure:
    • Effective Loading Space: 400mm (W) × 330mm (H) × 800mm (D)
    • Loading Platform: Corundum-mullite sintering plate
    • Refractory Materials:
      • Inner Layer: Polycrystalline mullite
      • Outer Layer: Ceramic fiberboard
  • Monitoring: Pre-installed thermocouple ports and temperature monitoring holes

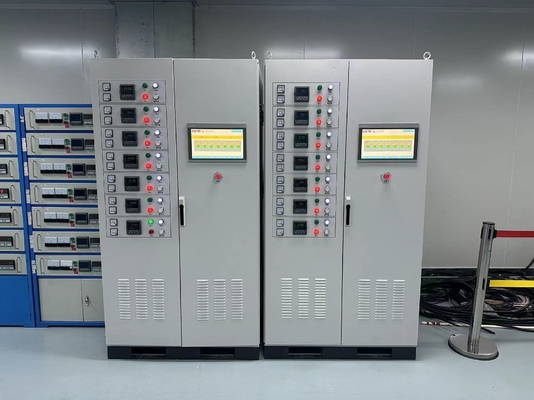

II. Heating/Cooling Control Cabinet
  • Dimensions: 800mm (W) × 1850mm (H) × 500mm (D)
  • Temperature Control Channels: 5+2 design (5 active, 2 reserved)
  • Controllers: 7 temperature controllers per cabinet (Eurotherm 3504 or Japanese regulators)
  • Control Method: Power/voltage modulation
  • Safety Features:
    • PID auto-tuning
    • High-temperature limit alarm
    • Thermocouple failure indicator
    • Over-temperature protection with audible/visual alarm + power cutoff
Core Advantages
  • Energy-Efficient Design: Advanced insulation materials and precise power modulation
  • Safety & Reliability: Multi-level alarms and premium controllers
  • Flexibility & Scalability: Reserved channels for future upgrades
  • User-Friendly: Durable finish and modular design
Usage Guidelines
  • Maintain standard processes below 1300°C
  • Regularly inspect thermocouples and refractory materials
  • Have PID parameters set by professionals
Item Specifications Quantity Notes
Kiln Main Unit Primary heating system 1 set Core equipment for thermal process
Setter Plate Material: Corundum-Mullite 1 set High-temperature resistant carrier
Installation Requirements
  • Indoor installation with ambient temperature range of -10℃ to 45℃
  • Environment must be free of flammable and corrosive gases
  • Minimum floor space: 4 square meters (2m × 2m × 3m height)
  • Sturdy, level foundation required (equipment weight ~400kg)
  • Power supply: Three-phase five-wire AC, 380±10% V, 50±2% Hz
  • Dedicated power line with reliable grounding

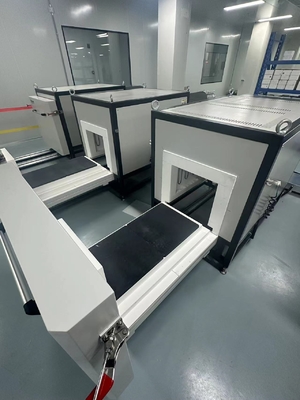

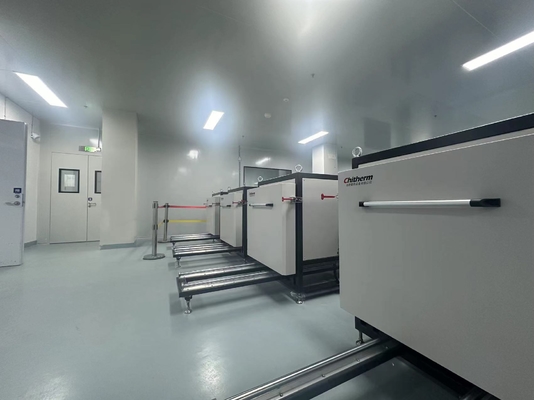

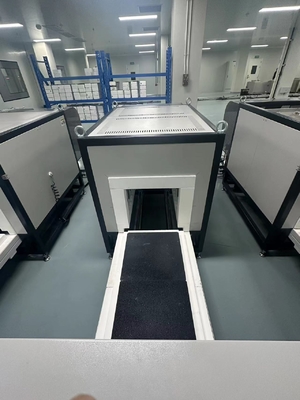

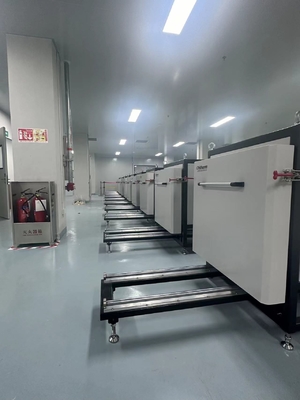

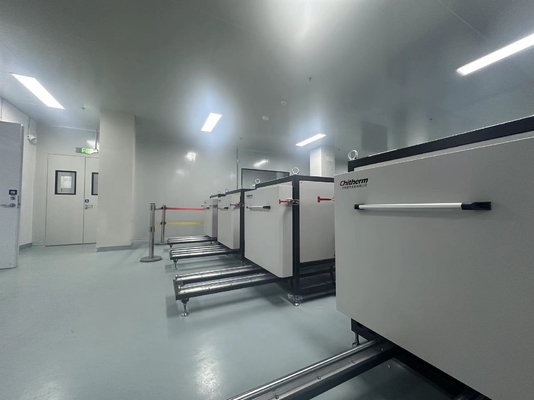

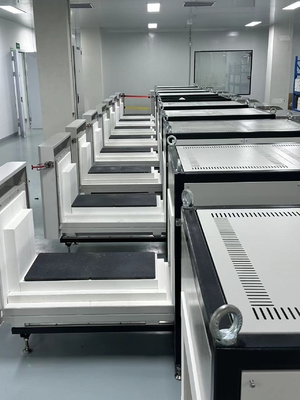

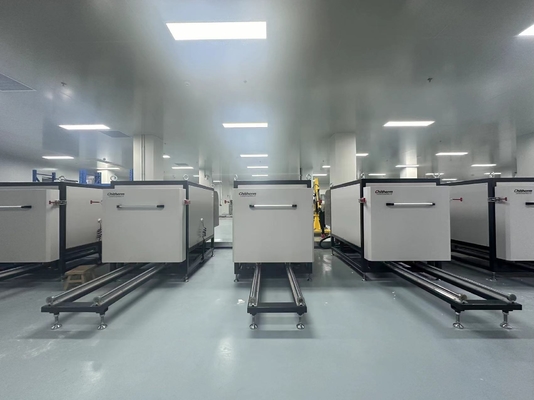

Product Images
5+2 Design Voltage Modulation Atmosphere Box Furnace Energy-Efficient Atmosphere Box Furnace 0
5+2 Design Voltage Modulation Atmosphere Box Furnace Energy-Efficient Atmosphere Box Furnace 1
5+2 Design Voltage Modulation Atmosphere Box Furnace Energy-Efficient Atmosphere Box Furnace 2
5+2 Design Voltage Modulation Atmosphere Box Furnace Energy-Efficient Atmosphere Box Furnace 3
5+2 Design Voltage Modulation Atmosphere Box Furnace Energy-Efficient Atmosphere Box Furnace 4
5+2 Design Voltage Modulation Atmosphere Box Furnace Energy-Efficient Atmosphere Box Furnace 5
