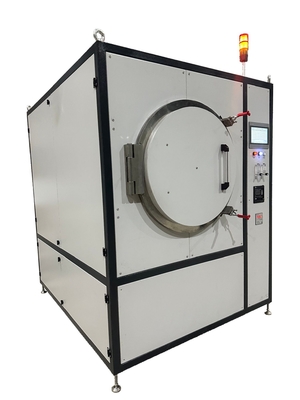

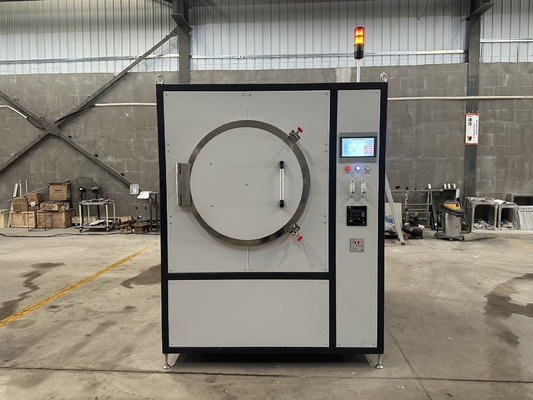

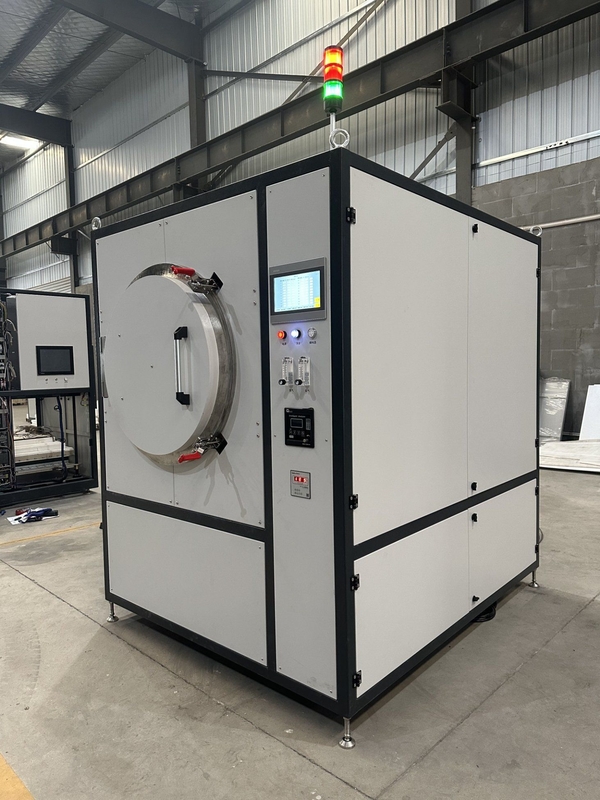

SUS 310S High Stability Vacuum Muffle Furnace For Ceramic Sintering

Large Image : SUS 310S High Stability Vacuum Muffle Furnace For Ceramic Sintering

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	HWF160-10NH

Contact Now

SUS 310S High Stability Vacuum Muffle Furnace For Ceramic Sintering

Description

Model NO.:	HWF160-10NH	Range Of Applications:	Industrial
Type:	Electric Holding Furnace	Usage:	Ceramic Sintering
Fuel:	Electric	Atmosphere:	Vacuum/Nitrogen/Hydrogen
Effective Chamber Dimensions:	500500650mm(WHD)	Thermcouple:	K
Max Temp:	1100ºC	Transport Package:	Wooden Packaging
Specification:	165019502000mm(WHD)	Trademark:	Chitherm
Origin:	China	HS Code:	8514101000
Supply Ability:	50 Sets/Year	Package Size:	166.00cm * 196.00cm * 201.00cm
Package Gross Weight:	1550.000kg	Customization:	Available
Certification:	ISO	Place Style:	Vertical
Shipping Cost:	Contact The Supplier About Freight And Estimated Delivery Time.	:	Support Payments In USD
Secure Payments:	Every Payment You Make On Made-in-China.com Is Protected By The Platform.	Refund Policy:	Claim A Refund If Your Order Doesn't Ship, Is Missing, Or Arrives With Product Issues.
Highlight:	High Stability Vacuum Furnace , Vacuum Muffle Furnace For Ceramic Sintering , SUS 310S Vacuum Muffle Furnace

Industrial Electric Furnace HWF160-10NH Vacuum Furnace

Product Specifications

Attribute	Value
Model NO.	HWF160-10NH
Range of Applications	Industrial
Type	Electric Holding Furnace
Usage	Ceramic Sintering
Fuel	Electric
Atmosphere	Vacuum/Nitrogen/Hydrogen
Effective Chamber Dimensions	500×500×650mm (W×H×D)
Thermcouple	Type K
Max Temp	1100°C
Transport Package	Wooden Packaging
Specification	1650×1950×2000mm (W×H×D)
Trademark	Chitherm
Origin	China
HS Code	8514101000
Supply Ability	50 Sets/Year

Product Description

Applications

This industrial vacuum furnace is designed for soldering metal parts and HTCC packaging, with additional capabilities for decarburization, annealing, quenching, scorching, hardening, and thermal decomposition processes.

Technical Specifications

Rated Temperature: 900°C
Maximum Temperature: 1100°C

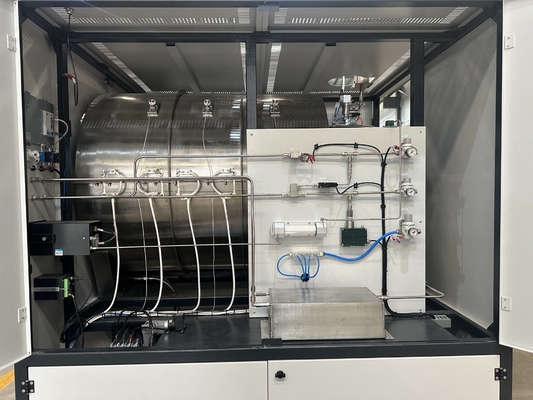

Atmosphere Options: N2, H2 with humidification
Oxygen Monitoring: Measured by O2 content analyzer

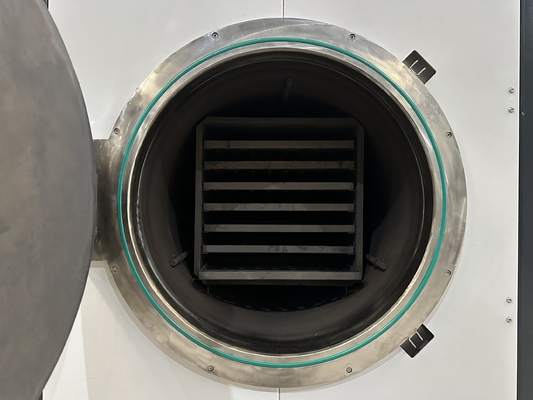

Muffle Material: SUS 310S
Heating Method: Resistance wire pre-built heating plate
Cooling System: Air cooling with blower
Temperature Control: ±1°C stability (PID controller)
Temperature Uniformity: ±5°C
Max Heating Power: 40kW
Vacuum Performance: ≤10Pa maximum vacuum value
Safety Features: Audible and visual alarms for over-temperature, thermocouple failure, low pressure conditions

Delivery Contents

Item	Description	Quantity
Basic Components	Furnace unit	1 SET
Inspection Certificate	Certificate of major outsourced components	1 SET
Technical Documents	Instructions and technical specifications	1 SET
Key Components	Heating element, vacuum system, touch screen, temperature controller	1 SET each
Spare Parts	SSR, sealing ring	1 PC each

Facility Requirements

Environmental Conditions: 0-40°C, ≤80% humidity, no corrosive gases
Gas Requirements: 99.999% purity N2 (0.2-0.4MPa), H2 (0.2-0.4MPa)
Compressed Air: Dry, clean, oil-free (0.4-0.8MPa)
Water Supply: Clean, non-corrosive (0.1-0.3MPa, 3-9L/min)
Power Supply: >55kVA, 3-phase 5-line, 220/380V, 50Hz
Installation Space: Minimum 3000×2500×3000mm (D×W×H)

Frequently Asked Questions

What products does Chitherm offer?

We provide high-quality industrial furnaces including bell furnaces, hot air furnaces, box furnaces, tube furnaces, vacuum furnaces, car bottom furnaces, rotary kilns, mesh belt furnaces, and pusher furnaces.

What pre-sales services does Chitherm provide?

We offer expert consultation services to help select the most suitable products and provide highly customizable solutions to meet specific industrial requirements.

What are Chitherm's core strengths?

As a high-tech enterprise with patented technologies, we integrate R&D, manufacturing, and sales to deliver superior thermal processing solutions.
