1100ºC Industrial Vacuum Muffle Furnace Furnace

Large Image : 1100ºC Industrial Vacuum Muffle Furnace Furnace

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	HWF160-10NH

Contact Now Chat Now

1100ºC Industrial Vacuum Muffle Furnace Furnace

Description

Model NO.:	HWF160-10NH	Range Of Applications:	Industrial
Type:	Electric Holding Furnace	Usage:	Ceramic Sintering
Fuel:	Electric	Atmosphere:	Vacuum/Nitrogen/Hydrogen
Effective Chamber Dimensions:	500500650mm(WHD)	Thermcouple:	K
Max Temp:	1100ºC	Transport Package:	Wooden Packaging
Specification:	165019502000mm(WHD)	Trademark:	Chitherm
Origin:	China	HS Code:	8514101000
Supply Ability:	50 Sets/Year	Package Size:	166.00cm * 196.00cm * 201.00cm
Package Gross Weight:	1550.000kg	Customization:	Available
Certification:	ISO	Place Style:	Vertical
Shipping Cost:	Contact The Supplier About Freight And Estimated Delivery Time.	:	Support Payments In USD
Secure Payments:	Every Payment You Make On Made-in-China.com Is Protected By The Platform.	Refund Policy:	Claim A Refund If Your Order Doesn't Ship, Is Missing, Or Arrives With Product Issues.
Highlight:	Industrial Vacuum Muffle Furnace , 1100ºC Vacuum Muffle Furnace

Vacuum Furnace with Maximum Temperature of 1100°C - Model HWF160-10NH

Product Overview

Industrial-grade electric vacuum furnace designed for ceramic sintering and metal processing applications. Manufactured in China with ISO certification and customizable options available.

Key Specifications

Attribute	Value
Model Number	HWF160-10NH
Type	Electric Holding Furnace
Maximum Temperature	1100°C
Effective Chamber Dimensions	500×500×650mm (W×H×D)
Atmosphere	Vacuum/Nitrogen/Hydrogen
Thermocouple Type	K
Certification	ISO
Supply Ability	50 Sets/Year

Applications

This industrial furnace is designed for multiple thermal processes including:

Metal parts soldering
HTCC package processing
Decarburization and annealing
Quenching and hardening
Thermal decomposition

Technical Specifications

Rated Temperature: 900°C

Temperature Uniformity: ±5°C

Heating Method: Resistance wire pre-built heating plate

Cooling Method: Air cooling with blower

Max Vacuum Value: ≤10Pa

Alarm System: Audible and visual alarms for over temperature, thermocouple failure, low pressure conditions

Weight: 1500kg

External Dimensions: 1650×1950×2000mm (W×H×D)

Delivery Contents

Component	Details	Quantity
Basic Components	Furnace	1 SET
Technical Documents	Instructions and technical documents	1 SET
Key Components	Resistance wire heating plate, vacuum system, touch screen	1 SET each
Temperature Controller	Azbil, CHINO or equivalent	1 SET
Spare Parts	SSR, sealing ring	1 PC each

Facility Requirements

Environment: 0-40°C, ≤80%RH, no corrosive gas
N2 Supply: 99.999% purity, 0.2-0.4MPa working pressure
H2 Supply: 0.2-0.4MPa working pressure
Compressed Air: Dry, clean, oil-free, 0.4-0.8MPa
Power: >55kVA, 3-phase 5-line, 220/380V, 50Hz
Installation Space: Minimum 3000×2500×3000mm (D×W×H)

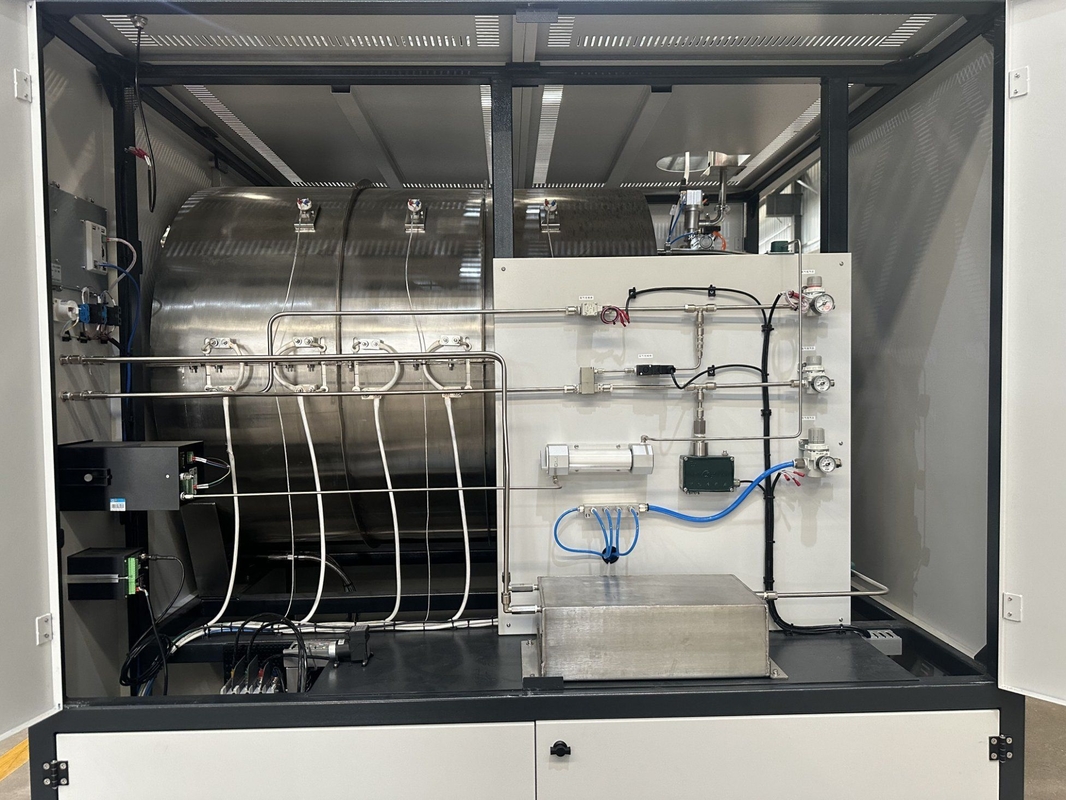

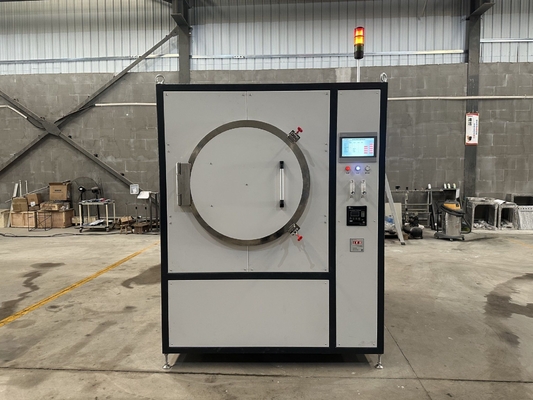

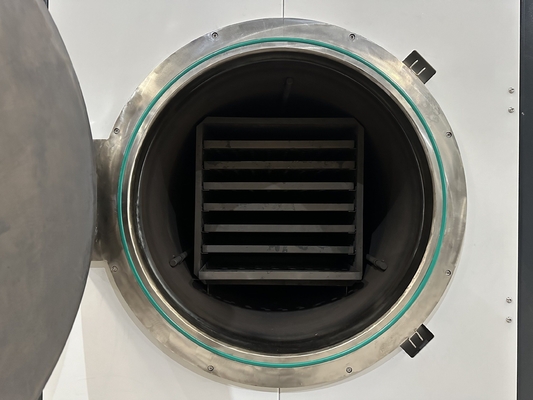

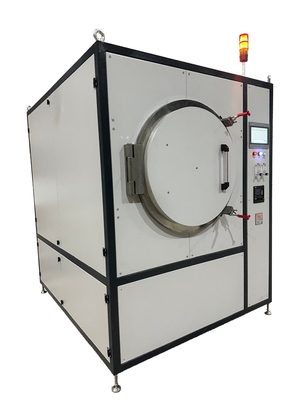

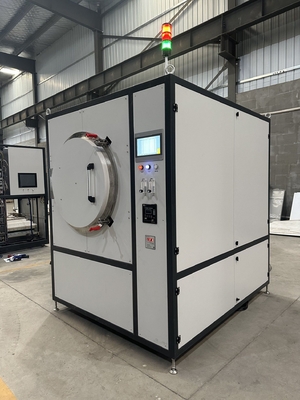

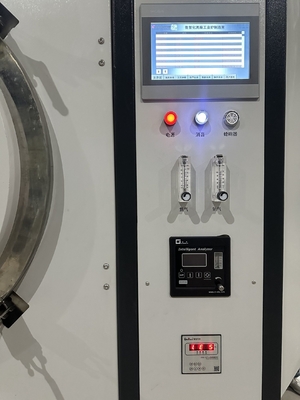

Product Images

Payment & Shipping

Payments accepted in USD with secure transaction protection. Contact supplier for freight quotes and estimated delivery times. Refund policy covers non-shipment, missing items, or product issues.
