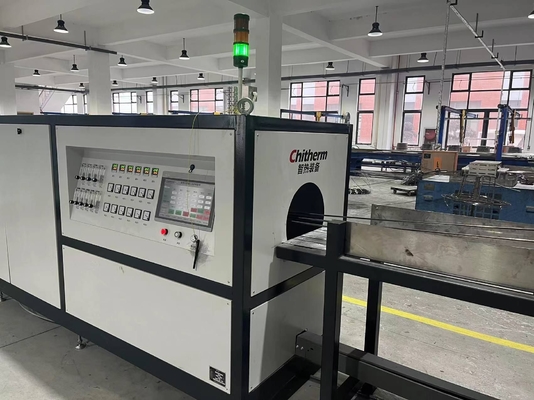

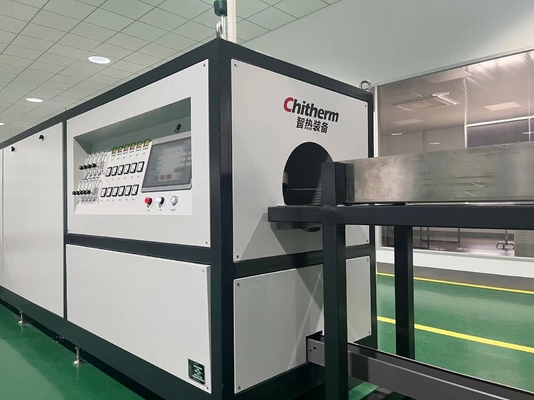

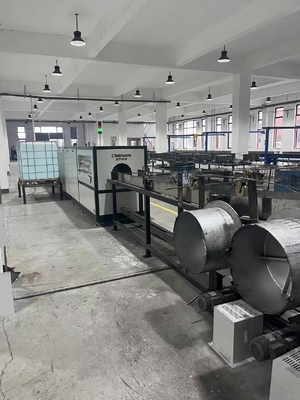

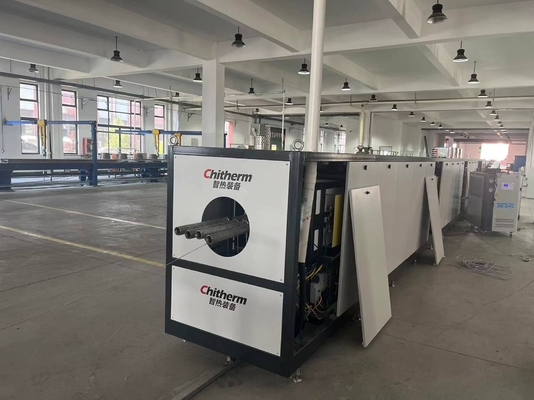

Chitherm Htf2550-07 Vacuum Heat Treatment Furnace

Large Image : Chitherm Htf2550-07 Vacuum Heat Treatment Furnace

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	htf2550-07

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now Chat Now

Chitherm Htf2550-07 Vacuum Heat Treatment Furnace

Description

Range Of Applications:	Industrial	Type:	Electric Holding Furnace
Usage:	Steel Molding	Fuel:	Electric
Atmosphere:	Vacuum	Effective Dimensions:	Ø250*500mm
Max Vacuum Level:	5×10-4PA	Transport Package:	Wooden Packaging
Specification:	1200mm1700mm2200mm(WHD)	Trademark:	Chitherm
Origin:	China	HS Code:	8514101000
Supply Ability:	50 Sets/Year	Customization:	Available
Certification:	ISO	Place Style:	Horizontal

Chitherm HTF2550-07 Vacuum Heat Treatment Furnace

Product Specifications

Attribute	Value
Range of Applications	Industrial
Type	Electric Holding Furnace
Usage	Steel Molding
Fuel	Electric
Atmosphere	Vacuum
Effective Dimensions	Ø250*500mm
Max Vacuum Level	5×10^-4PA
Transport Package	Wooden Packaging
Specification	1200mm1700mm2200mm(WHD)
Trademark	Chitherm
Origin	China
HS Code	8514101000
Supply Ability	50 Sets/Year
Customization	Available
Certification	ISO
Place Style	Horizontal

Product Overview

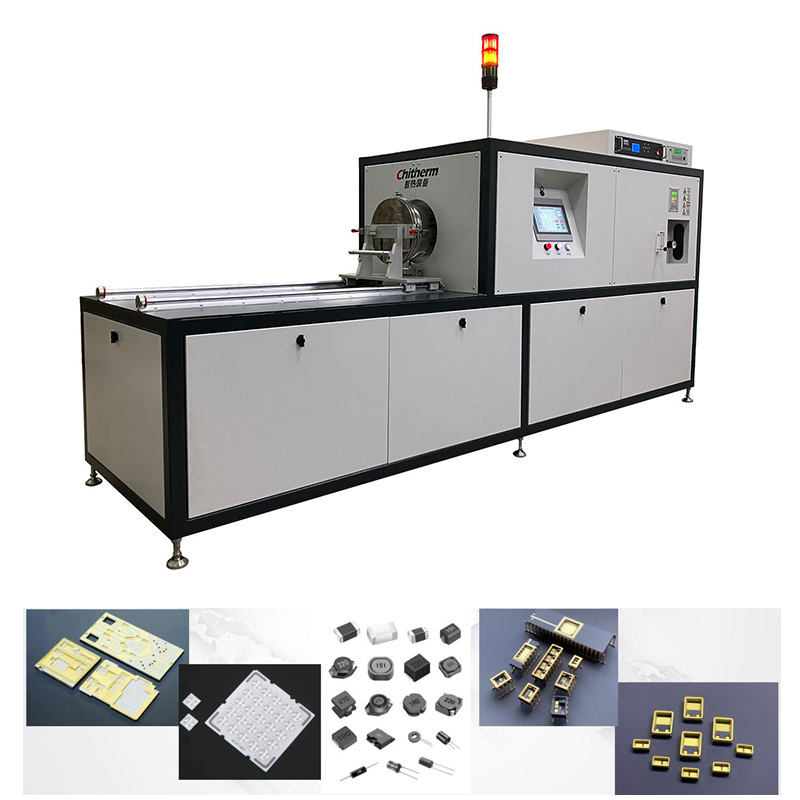

The HTF2550-07 heat treatment furnace is suitable for sintering electronic products at temperatures up to 500ºC, as well as for heat treatment in controlled atmospheres in industries such as electronics, chemical, mechanical, and scientific research.

This product utilizes advanced infrared technology and high-quality furnace materials, enhancing the thermal efficiency of the equipment. It employs advanced temperature control technology to ensure precise temperature regulation. The mature furnace design ensures uniform temperature distribution. The glass tube-style furnace structure guarantees product cleanliness and optimal sintering effects under controlled atmospheres, thereby ensuring high-quality sintering results.

Technical Specifications

Model: HTF2550-07 Heat Treatment Furnace
Maximum Temperature: 700ºC
Operating Temperature: 500ºC
Effective Size: Φ250mm × 500mm
Heating Zone Length: 300 + 300 + 300mm
Number of Temperature Zones: 3 independent control zones
Temperature Control Accuracy: ±1ºC
Temperature Control Instrument: Imported Japanese temperature control module
Thermocouple Type: K-type
Heating Element: Far-infrared FEC ceramic fiber heater
Furnace Atmosphere: Nitrogen (protective gas)
Gas Flow Rate: 10-100 L/min
Maximum Heating Power: 24 kW
Idle Furnace Insulation Power: Approximately 8 kW
Surface Temperature Rise: ≤35ºC
Ultimate Vacuum: 5×Pa
Power Requirements: 380V/50Hz, 3-phase 5-wire
Atmosphere Requirements: High-purity nitrogen (protective gas), input pressure 0.1~0.2 MPa; Dry, oil-free compressed air (ventilation gas), pressure 0.4~0.8 MPa
Dimensions: 1200 × 1700 × 2200 mm (W × H × D)
Operating Environment: Level ground, indoor environment with minimal air disturbance, no corrosive gases, and minimal vibration. The electrical control room should have an ambient temperature of 0~40ºC and humidity of 10%~85% RH. The furnace area should have good ventilation, with an ambient temperature not exceeding 50ºC and humidity of 10%~85% RH.

Delivery Checklist

Name	Main Contents	Quantity
Basic Components
Furnace Main Unit		1 unit
Inspection Certificate	Certificates for Major Purchased Components	1 set
Technical Documents	Manual; Technical documents for major purchased components	1 set
Key Components
Heating Element	Customized	1 piece
Rotary Vane Vacuum Pump	4L/s BaoSi DRV16	1 set
Quartz Tube	Customized	1 unit
Vacuum Flange	Customized	1 set
Touch Screen	Kunlun Tongtai TPC1071Gn	1 unit
Temperature Control Module	Yamatake NX-D15	1 unit
Molecular Pump	600L/s FF-160/620	1 unit
Compound Vacuum Gauge	Ruibao ZDF-5227AZ	1 set
Spare Parts
Solid State Relay		1 piece
