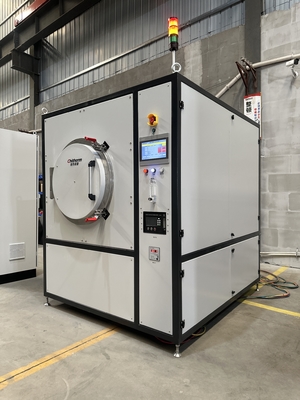

HWF80-11Ar Vacuum Muffle Furnace 1100°C for Ceramic Sintering

Customer Reviews
Dear Valued Partner, Thank you for your support and trust over the past year. It is through your cooperation that we have been able to successfully achieve our goals. In the days to come, we look forward to continuing our close collaboration and creating even greater value together. — With best regards, [Chinese Academy of Sciences]

—— Chinese Academy of Sciences

I'm Online Chat Now

HWF80-11Ar Vacuum Muffle Furnace 1100°C for Ceramic Sintering

HWF80-11Ar Vacuum Muffle Furnace 1100°C for Ceramic Sintering
HWF80-11Ar Vacuum Muffle Furnace 1100°C for Ceramic Sintering HWF80-11Ar Vacuum Muffle Furnace 1100°C for Ceramic Sintering HWF80-11Ar Vacuum Muffle Furnace 1100°C for Ceramic Sintering HWF80-11Ar Vacuum Muffle Furnace 1100°C for Ceramic Sintering HWF80-11Ar Vacuum Muffle Furnace 1100°C for Ceramic Sintering HWF80-11Ar Vacuum Muffle Furnace 1100°C for Ceramic Sintering HWF80-11Ar Vacuum Muffle Furnace 1100°C for Ceramic Sintering HWF80-11Ar Vacuum Muffle Furnace 1100°C for Ceramic Sintering HWF80-11Ar Vacuum Muffle Furnace 1100°C for Ceramic Sintering HWF80-11Ar Vacuum Muffle Furnace 1100°C for Ceramic Sintering

Large Image :  HWF80-11Ar Vacuum Muffle Furnace 1100°C for Ceramic Sintering

Product Details:
Place of Origin: China
Brand Name: Chitherm
Model Number: HWF80 - 11Ar
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Delivery Time: 90 work days
Payment Terms: L/C,T/T
Contact Now Chat Now

HWF80-11Ar Vacuum Muffle Furnace 1100°C for Ceramic Sintering

Description
Highlight:

1100°C vacuum muffle furnace

,

ceramic sintering muffle furnace

,

HWF80-11Ar vacuum furnace

HWF80-11Ar Vacuum Muffle Furnace 1100°C for Ceramic Sintering
Basic Specifications
Model No.
HWF80-11Ar
Type
Electric Holding Furnace
Usage
Ceramic Sintering
Fuel
Electric
Atmosphere
Argon or Air
Effective Chamber Dimensions
400*400*500mm (W*H*D)
Maximum Temperature
1100°C
Maximum Heating Power
48kW
Temperature Control Accuracy
±1°C
Product Description
Equipment Composition
  • Outer frame
  • Heating furnace
  • Vacuum chamber
  • Sealing door
  • Vacuum system
  • Atmosphere system

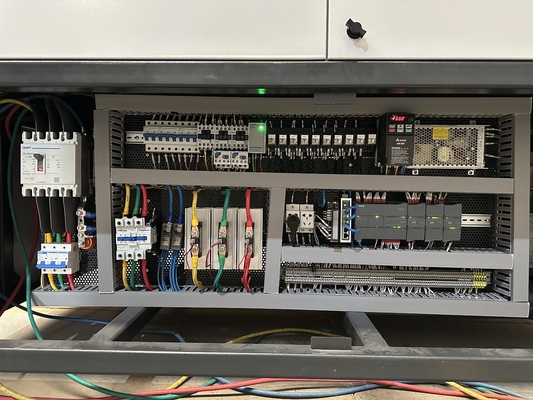

  • Control system
Technical Parameters
Common Temperature
1000°C
Temperature Stability
±1°C with PID self-tuning
Temperature Uniformity
±5°C at 1000°C
Maximum Heating Rate
10°C/min
Heating Elements
FEC ceramic fiber heaters (≥10,000 hours lifespan)
Ultimate Vacuum Degree
≤100Pa (evacuation time ≤10 minutes)

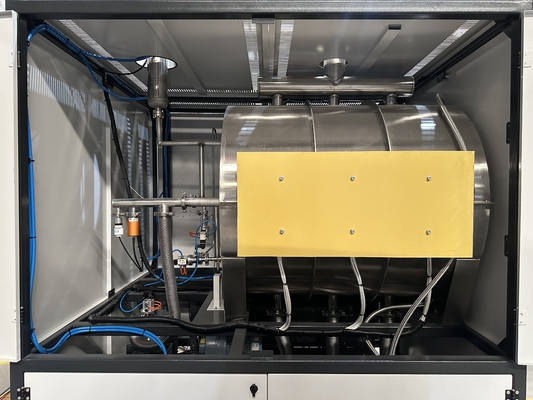

Tank and Structural Parameters
  • Tank Material: Inconel 601
  • Tank Dimensions: Φ630×900mm (diameter × depth)
  • Effective Uniform Temperature Zone: 400×400×500mm (W×H×D)
  • Material Support: Bottom support plate (load capacity ≥40kg) with 2 workbenches
Safety Features
  • Overtemperature protection
  • Thermocouple break detection
  • Low air/water pressure alarms
  • Vacuum degree monitoring
  • Audible and visual alarms
Delivery List
Item Note Qty.
Basic Components Furnace 1 Unit
Inspection Certificate Certificate of major outsourced components 1 Set
Technical Documents Instructions, technical documents 1 Set
Key Components Heating Element 1 Set
Vacuum System 1 Unit
Temperature Control Module 1 Unit
Operation Conditions
  • Temperature range: -10~+50°C
  • Humidity: 10%-95% R.H. (at 95% R.H., temperature 35°C)
  • Pressure: 90~105 kPa
Product Images

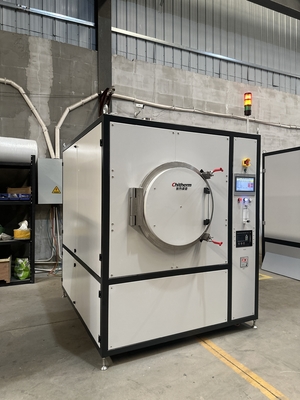

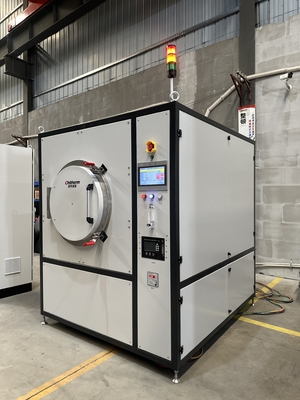

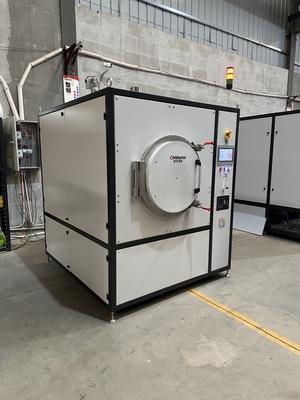

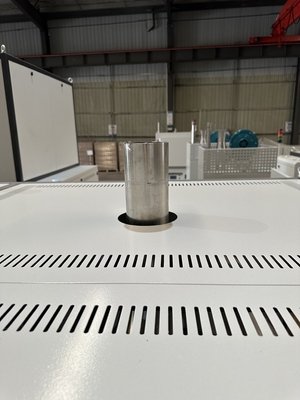

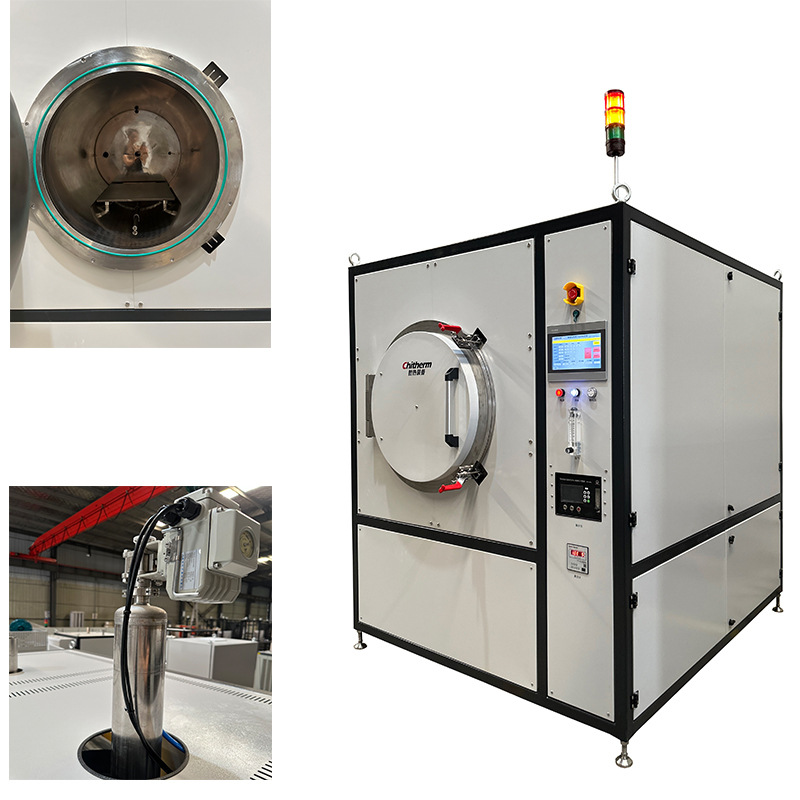

HWF80-11Ar Vacuum Muffle Furnace 1100°C for Ceramic Sintering 0 HWF80-11Ar Vacuum Muffle Furnace 1100°C for Ceramic Sintering 1 HWF80-11Ar Vacuum Muffle Furnace 1100°C for Ceramic Sintering 2 HWF80-11Ar Vacuum Muffle Furnace 1100°C for Ceramic Sintering 3
Company Profile

Hefei Chitherm Equipment Co., Ltd. specializes in the R&D, manufacturing, and sales of high-, medium-, and low-temperature industrial furnaces and laboratory furnaces. Our product range includes bell furnaces, box furnaces, hot air furnaces, vacuum furnaces, tube furnaces, mesh belt furnaces, and pusher furnaces, serving industries such as advanced ceramics, electronic components, powder metallurgy, and new energy.

Frequently Asked Questions
What products does Chitherm offer?

We provide high-quality bell furnaces, hot air furnaces, box furnaces, tube furnaces, vacuum furnaces, car bottom furnaces, rotary kilns, mesh belt furnaces, and pusher furnaces.

What pre-sales services does Chitherm provide?

We offer consultation services to help select suitable products and highly customizable solutions to meet specific requirements.

What are Chitherm's core strengths?

As a high-tech enterprise, we possess patented technologies and core resources to deliver superior furnace solutions.
