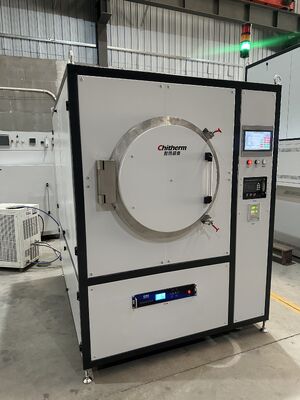

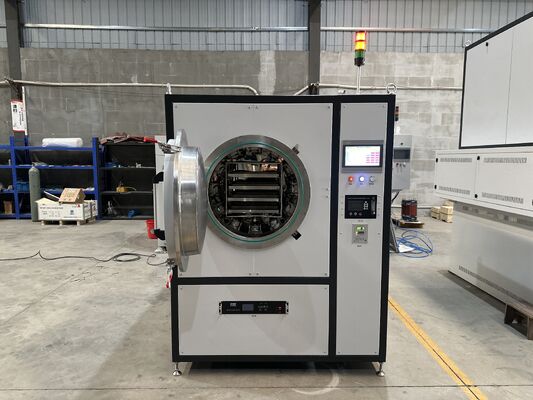

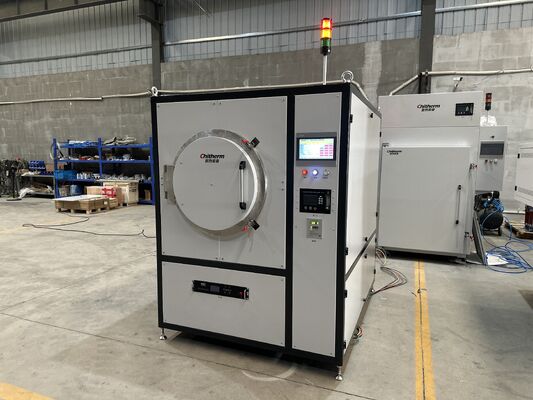

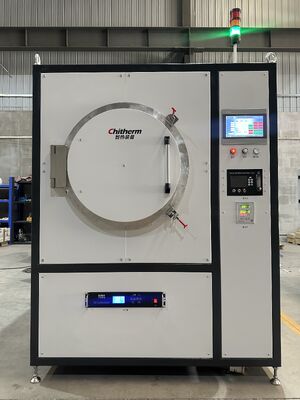

HWF80-04N High Reliability Vacuum Muffle Furnace with 350°C Long Operation and ≤7.5kW Insulation Power

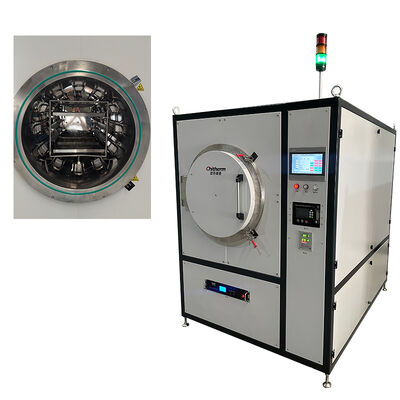

Large Image : HWF80-04N High Reliability Vacuum Muffle Furnace with 350°C Long Operation and ≤7.5kW Insulation Power

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	HWF80-04N

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Wooden Packaging
Delivery Time:	90 work days
Payment Terms:	T/T,L/C
Supply Ability:	50 Sets/Year

Contact Now Chat Now

HWF80-04N High Reliability Vacuum Muffle Furnace with 350°C Long Operation and ≤7.5kW Insulation Power

Description

Model NO.:	HWF80-04N	Type:	Electric Holding Furnace
Usage:	Ceramic Sintering	Fuel:	Electric
Atmosphere:	Vacuum/Nitrogen	Effective Chamber Dimensions:	400400500mm(WHD)
Maximum Temperature:	400°c	Maximum Heating Power:	15kw
Idle Furnace Insulation Power:	≤7.5kw	Temperature Control Accuracy:	±1°c
Thermocouple Type:	K-Type	Transport Package:	Wooden Packaging
Specification:	150019501750mm(WHD)	Trademark:	Chitherm
Origin:	China	HS Code:	8514101000
Supply Ability:	50 Sets/Year	Package Size:	1550.00cm * 1960.00cm * 1760.00cm
Package Gross Weight:	1000.000kg	Customization:	Available
Place Style:	Vertical	Range Of Applications:	Industrial
Shipping Cost:	Contact The Supplier About Freight And Estimated Delivery Time.	:	Support Payments In USD
Secure Payments:	Every Payment You Make On Made-in-China.com Is Protected By The Platform.	Refund Policy:	Claim A Refund If Your Order Doesn't Ship, Is Missing, Or Arrives With Product Issues.
Highlight:	350°C Long Operation Vacuum Muffle Furnace , ≤7.5kW Insulation Power Electric Holding Furnace , 20 Procedural Steps Hydrogen Removal Furnace

HWF80-04N High Reliability Discharge/Sintering Integrated Furnace Muffle Furnace

Basic Equipment Information

Equipment Name and Model: HWF80-04N Hydrogen Removal Furnace
Main Application Areas: Thermal treatment processes including decarbonization, dehydrogenization, and refractory processing.

Core Technical Specifications

Parameter	Specification
Operating Temperature	350°C (long-term operation)
Maximum Temperature	400°C
Temperature Rate	≤ 5°C/min
Workspace Dimensions	400mm (W) × 400mm (H) × 500mm (D)
Tank Material	SUS316L Stainless Steel
Temperature Control Accuracy	±1°C
Temperature Uniformity	±5°C (after 1 hour at 350°C)
Vacuum Performance	≤ 1 × 10² Pa (empty furnace, clean, room temperature)
Atmosphere System	Vacuum or nitrogen (oxygen concentration <50ppm)
Heating Power	15 kW (stainless steel heating pipe with hot air circulation)
Cooling Time	<12 hours (350°C to room temperature)

Control System Features

Programmable steps: Up to 20 steps
Temperature control points: 1 point
Thermocouple type: K type
Includes detection port for real-time monitoring

Safety Protection Functions

Sound and light alarms for over-temperature, thermocouple failure, low pressure conditions
Automatic heating cutoff on over-temperature alarm
External surface temperature rise <35°C

Physical Characteristics

Weight: Approximately 1000 kg
Color: Light gray
Dimensions: Approximately 1500mm (W) × 1950mm (H) × 1750mm (D)

Installation Requirements

Environmental Conditions: 0-40°C, ≤80% RH, no corrosive gases
Power: >22 kVA, 220/380V 50Hz three-phase five-wire
Nitrogen Supply: 0.2-0.4 MPa, 99.999% purity
Space Requirements: Minimum 3000mm × 2500mm × 3000mm area
Floor Load: >500 kg/m²
