Ztl9815 High Uniformity (±5℃) Bell Jar Sintering Furnace Muffle Furnace

Large Image : Ztl9815 High Uniformity (±5℃) Bell Jar Sintering Furnace Muffle Furnace

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	ZTL9815

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now Chat Now

Ztl9815 High Uniformity (±5℃) Bell Jar Sintering Furnace Muffle Furnace

Description

Ztl9815 High Uniformity (±5℃) Bell Jar Sintering Furnace Muffle Furnace 0

I. Product Overview

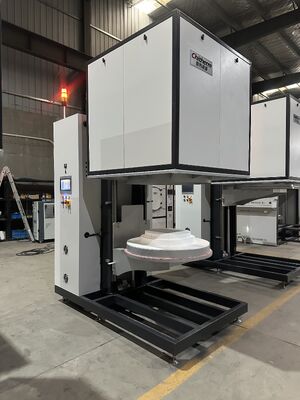

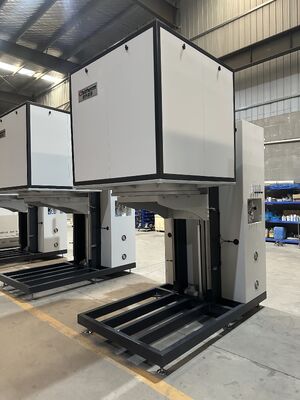

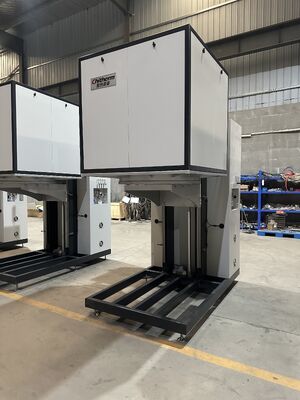

The BF125-17 High-Temperature Bell Furnace is a high-performance, high-precision vertical lifting furnace, specially designed for the sintering and heat treatment processes of high-end materials in high-temperature and high-purity environments. Adopting advanced heating and control systems, this equipment features excellent furnace temperature uniformity, precise temperature control, and safe and reliable operation, making it an ideal choice for the research and development as well as production of new materials.

II. Application Fields

Sintering of ITO targets
Sintering of electronic ceramic materials (e.g., MLCC, piezoelectric ceramics)
Heat treatment of magnetic materials (e.g., ferrites)
Sintering of ceramic filters and microwave dielectric ceramics
Other materials requiring high-temperature treatment in inert or air atmospheres

III. Technical Specifications and Basic Configuration

Item	Technical Parameters and Configuration
Temperature Parameters	Rated Temperature: 1600ºC Maximum Operating Temperature: 1700ºC
Effective Furnace Chamber Area	500mm (W) × 500mm (H) × 500mm (D)
Heating System	Maximum Heating Power: 50 kW Empty Furnace Holding Power: ≤ 25 kW Heating Elements: U-shaped silicon-molybdenum rods with reasonable arrangement and long service life
Temperature Control Performance	Furnace Temperature Uniformity: ≤ ±5ºC (tested after 2 hours of constant temperature in empty furnace at 1500ºC) Temperature Control Accuracy: ≤ ±1ºC (high-temperature constant temperature section) Heating Rate: ≤ 5ºC/min in the range of 400ºC ~ 1000ºC; ≤ 2ºC/min in the range of 1000ºC ~ 1500ºC
Control System	Control Method: High-performance phase-shift voltage regulation + SCR thyristor module for stable and shock-free power regulation Temperature Control Instrument: Imported multi-segment program temperature controller from Japan, supporting P.I.D control and self-tuning function Number of Temperature Control Points: 1 point Temperature Measuring Thermocouple: R-class
Mechanical Structure	Lifting Method: Lead screw drive for stable operation Maximum Lifting Stroke: Approx. 800mm Furnace Body/Trolley Load Capacity: ≤ 1000 kg (including workpieces and carriers)
Exhaust System	An automatically opening and closing exhaust chimney is installed on the top to facilitate the controllable discharge of process waste gas.
Safety Protection	Equipped with sound and light alarm and automatic protection functions for faults such as over-temperature, thermocouple breakage, over-current, over-load, over-travel, and deviation.
Dimensions and Weight	Equipment Overall Dimensions (approx.): 1740mm (W) × 2780mm (H) × 2505mm (D) (excluding independent control cabinet) Equipment Net Weight (approx.): 2000 kg

IV. Overall Design

The equipment adopts a modular and high-standard design, mainly composed of the following major systems:

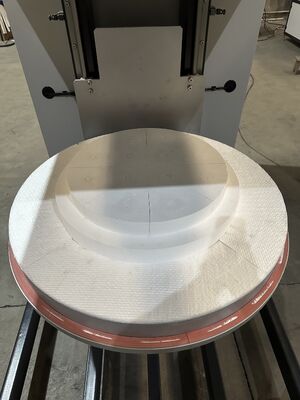

Furnace Body System: The furnace chamber is made of high-quality refractory materials and insulation layers to ensure high-temperature strength and low heat loss.

Metal Frame: A high-strength section steel welded frame with a stable structure, providing support for the furnace body and transmission system.
Lifting Trolley System: An integrated heavy-duty trolley equipped with a precision lead screw lifting mechanism to ensure stable lifting and accurate positioning of the furnace body.
Transmission Mechanism: The motor-driven lead screw realizes the stable lifting of the furnace body, and is equipped with limit protection devices.

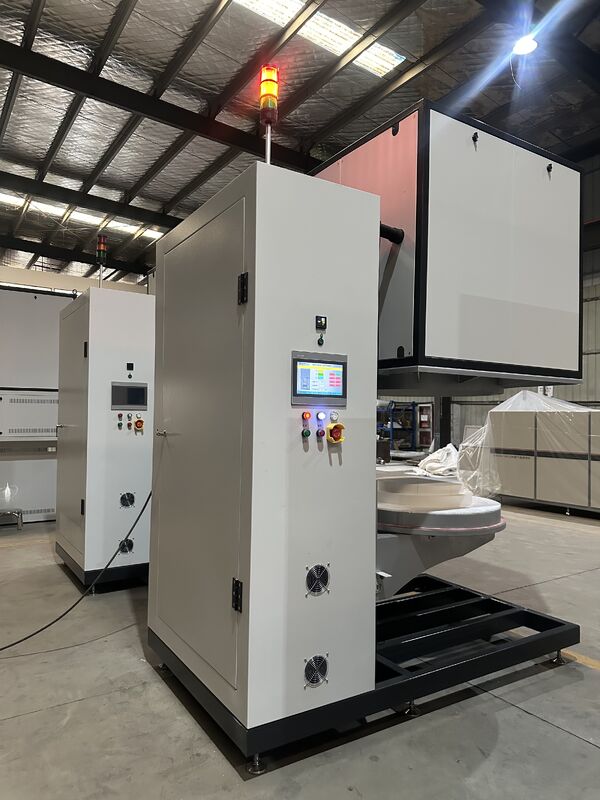

Control System: An independent control cabinet integrating temperature control, power regulation, alarm and operation panel, with a user-friendly man-machine interface and high degree of automation.

Ztl9815 High Uniformity (±5℃) Bell Jar Sintering Furnace Muffle Furnace 3

Ztl9815 High Uniformity (±5℃) Bell Jar Sintering Furnace Muffle Furnace 4

Ztl9815 High Uniformity (±5℃) Bell Jar Sintering Furnace Muffle Furnace 5

Ztl9815 High Uniformity (±5℃) Bell Jar Sintering Furnace Muffle Furnace 7

Ztl9815 High Uniformity (±5℃) Bell Jar Sintering Furnace Muffle Furnace 8

Ztl9815 High Uniformity (±5℃) Bell Jar Sintering Furnace Muffle Furnace 9

1.What products does Chitherm offer?
We provide customers with high-quality bell furnaces, hot air furnaces, box furnaces, tube furnaces, vacuum furnaces, car bottom furnaces, rotary kilns, mesh belt furnaces, and pusher furnaces.
2.What pre-sales services does Chitherm provide?
We offer timely consultation services to help customers select the most suitable products, along with highly customizable solutions to meet your specific requirements.
3.What are Chitherm's core strengths?
As a high-tech enterprise integrating R&D, manufacturing, and sales, Chitherm possesses patented technologies and core resources to deliver superior solutions.
