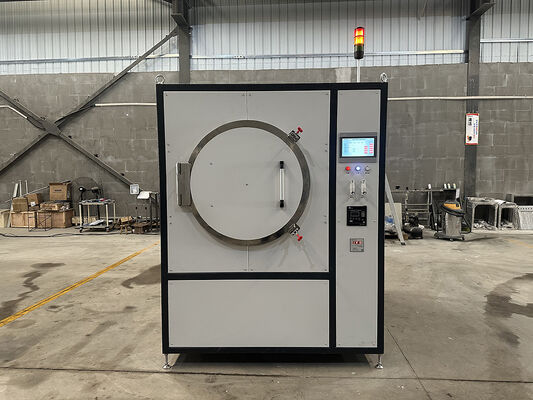

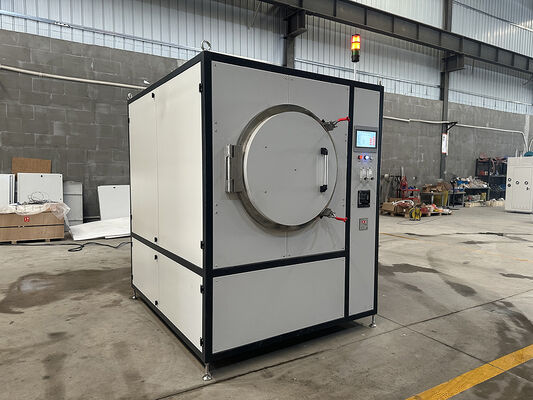

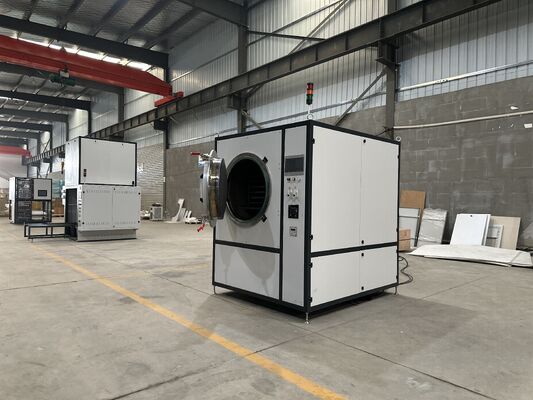

HWF160-10NH Vacuum Atmosphere Tank Furnace for Laboratory & Industrial Use, Inert Atmosphere Heat Treatment Furnace
Hefei Chitherm Equipment Co., Ltd. is an advanced equipment supplier specializing in the research and development, design, manufacturing, sales, maintenance, and service of high-, medium-, and low-temperature industrial furnaces and laboratory furnaces. Its product range encompasses bell furnaces, box furnaces, hot air furnaces, vacuum furnaces, tube furnaces, mesh belt furnaces, bogie hearth furnaces, rotary furnaces, roller hearth furnaces, and pusher furnaces, which are extensively applied in fields such as advanced ceramics, electronic components, thick-film circuits, additive manufacturing, powder metallurgy, new energy, and photovoltaics. These furnaces are suitable for thermal treatment processes of materials including ITO targets, MLCC/HTCC/LTCC, ceramic filters, magnetic materials, CIM/MIM, and lithium battery cathodes and anodes, as well as various other new material processes such as pre-sintering, dewaxing, degreasing, sintering, drying, heat treatment, curing, and ceramization.
Product Attributes
| Attribute | Value |
|---|
| Range of Applications | Industrial |
| Type | Electric Holding Furnace |
| Usage | Ceramic Sintering |
| Fuel | Electric |
| Atmosphere | Vacuum/Nitrogen/Hydrogen |
| Effective Chamber Dimensions | 500*500*650mm(W*H*D) |
| Transport Package | Wooden Packaging |
| Specification | 1650*1950*2000mm(W*H*D) |
| Trademark | Chitherm |
| Origin | China |
| HS Code | 8514101000 |
| Production Capacity | 50 Sets/Year |
Product Description
Electric Vacuum Furnace Chitherm Hwf160-10nh with 1650*1950*2000mm W*H*D and Advanced Technology
Application
This furnace is mainly designed for soldering process of metal parts and HTCC package, also can be used in other processes such as decarburization, annealing, quenching, scorching, hardening, thermal decomposition.
Technical Specification
- Rated Temp.: 900ºC
- Max Temp.: 1100ºC
- Atmosphere: N2, H2, with humidification
- Oxygen Content: Measured by O2 content analyzer
- Muffle Material: SUS 310S
- Muffle Dimensions: φ750mm×900mm(d×D)
- Effective Chamber Dimensions: 500×500×650mm(W×H×D)

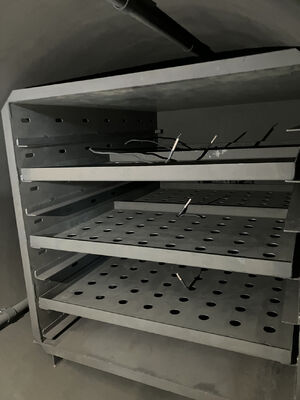

- Loading Method: Manual, through horizontal guideway shelves
- Heating Method: Resistance wire pre-built heating plate
- Cooling Method: Air cooling with blower
- Temp. Control Stability: ± 1ºC(controller with P.I.D function)
- Profile Steps: Default 20 steps
- Temp. Uniformity: ± 5ºC
- Thermcouple: Type K
- Temp Control: 3 Points
- Temp. Measurement: 1 Point
- Max. Heating Power: 40kW
- Typical Insulation Power: ≤ 25kW
- Heating Speed: ≤ 5ºC/min
- Furnace Surface Temperature: ≤ 40ºC
- Max Vacuum Value: ≤ 10Pa
- Exhaust System: 1 exhaust port on the top with H2 igniter
- Alarm System: audible and visual alarm in case of over temp, thermcouple broken, low air pressure, low water pressure, substandard vacuum level, etc
- Weight: 1500kg
- Appearance Colour: Light Grey
- External Dimensions: 1650mm×1950mm×2000mm (W×H×D)
Delivery List
| Item | Note | Qty. |
|---|
| Basic Components | Furnace | 1 SET |
| inspection certificate | Certificate of major outsourced components | 1 SET |
| Technical Documents | Instructions, technical documents of the major outsourced parts, etc | 1 SET |
| Key Components | Heating Element | 1 SET |
| Vacuum System |
| 1 SET |
| Touch Screen |
| 1 SET |
| Temperature Controller | Azbil, CHINO or equivalent brand | 1 SET |
| Thermocouple | Type N | 3 PCs |
| Spare Parts | SSR | 1 PC |
| Sealing ring |
| 1 PC |
Facility Requirements
- Environmental Conditions: temp.: 0~40ºC, humidity ≤ 80%RH, no corrosive gas, no strong airflow disturbance
- N2 Conditions: 99.999% purity, working pressure: 0.2-0.4MPa, Max gas consumption 2-6 m3/h
- H2 Conditions: working pressure: 0.2-0.4MPa, Max gas consumption 1-3m3/h
- Compressed Air Condition: dry, clean, oil-free, working pressure: 0.4-0.8MPa
- Water Conditions: clean, no corrosive water, working pressure 0.1-0.3MPa, 3-9L/min
- Ventilation System: non-contact access to the user pumping system, pumping capacity is greater than 15m3/h
- Ground Requirements: horizontal, no obvious vibration, load-bearing> 500 kg/m2
- Power Condition(TBD): capacity > 55kVA, 3-phases 5-lines, voltage 220/380V, frequency 50Hz. Fire line: yellow, green, red, Zero line: blue, Ground line: yellow-green
- Installation Site: 3000mm×2500mm×3000mm(D×W×H), with an installation area greater than 7.5m2
