HTF2550-07 Vacuum Muffle Furnace with Max Vacuum Level 5×10-4PA for Industrial Steel Molding and Effective Dimensions Ø250×500mm

Large Image : HTF2550-07 Vacuum Muffle Furnace with Max Vacuum Level 5×10-4PA for Industrial Steel Molding and Effective Dimensions Ø250×500mm

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	HTF2550-07

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now Chat Now

HTF2550-07 Vacuum Muffle Furnace with Max Vacuum Level 5×10-4PA for Industrial Steel Molding and Effective Dimensions Ø250×500mm

Description

Range Of Applications:	Industrial	Type:	Electric Holding Furnace
Usage:	Steel Molding	Fuel:	Electric
Atmosphere:	Vacuum	Effective Dimensions:	Ø250*500mm
Max Vacuum Level:	5×10-4PA	Transport Package:	Wooden Packaging
Specification:	1200mm1700mm2200mm(WHD)	Trademark:	Chitherm
Origin:	China	HS Code:	8514101000
Production Capacity:	50 Sets/Year
Highlight:	electric heat treat furnace for annealing , box heat treat furnace for quenching , vacuum muffle furnace with warranty

HTF2550-07 Box Heat Treat Furnace, Electric Furnace for Annealing Quenching Process

Product Specifications

Attribute	Value
Range of Applications	Industrial
Type	Electric Holding Furnace
Usage	Steel Molding
Fuel	Electric
Atmosphere	Vacuum
Effective Dimensions	Ø250*500mm
Max vacuum Level	5×10-4PA
Transport Package	Wooden Packaging
Specification	1200mm1700mm2200mm(WHD)
Trademark	Chitherm
Origin	China
HS Code	8514101000
Production Capacity	50 Sets/Year

Product Overview

Industrial Electric Fuel Chitherm HTF2550-07 Vacuum Heat Treatment Furnace with Max Vacuum Level of 5×10-4PA.

Hefei CHITHERM Equipment Co., Ltd. is an advanced equipment supplier specializing in the R&D, design, manufacturing, sales, maintenance and service of industrial heat treatment furnaces and experimental furnaces.

Our products include Bell Furnace, Hot Air Dryer, Box Furnace, Tube Furnace, Vacuum Furnace, Trolley Furnace, Rotary Furnace, Mesh Belt Furnace, Push Plate Furnace, etc., which are widely used in advanced ceramics, electronic components, thick film circuit, additive manufacturing, powder metallurgy, new energy, photovoltaic and other fields.

It is suitable for the heat treatment process of ITO target, MLCC/HTCC/LTCC, ceramic filter, magnetic material, CIM/MIM, positive and negative electrode of lithium battery, as well as pre firing, glue discharging, degreasing, firing, drying, heat treatment, curing, ceramic metallization and other processes of various new materials.

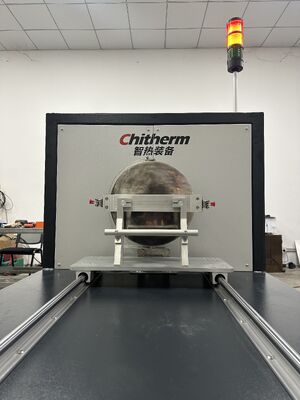

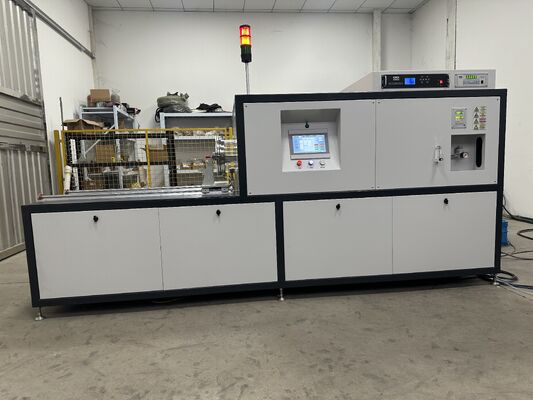

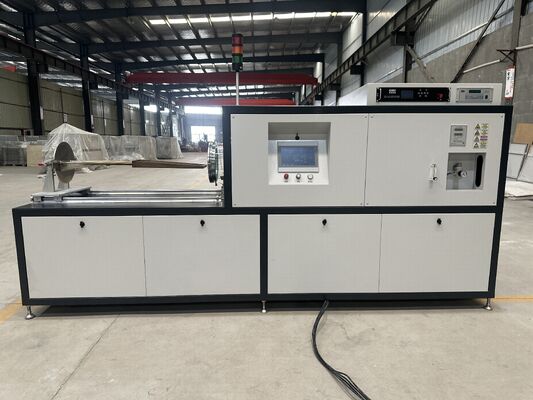

HTF2550-07 Vacuum Muffle Furnace with Max Vacuum Level 5×10-4PA for Industrial Steel Molding and Effective Dimensions Ø250×500mm 1

Typical Applications

The sintering and annealing process of electronic components, semiconductor wafers, and other related materials in a vacuum environment.

Technical Parameters

Rated Temp: 500 ºC

Max Temp: 700 ºC

Tube Material: Fused Silica

Effective Dimensions: Ø250 × 500mm (D × H)

Temp Uniformity: ± 2 ºC

Temp Zones: 3 Zones

Temp Zone Length: 300+300+300mm

Heat Power: 24kW

Insulation Power: <8kW

Heating up Speed: <15ºC/min

Thermocouple: Type K

Process Steps: 9 Steps

Max Vacuum Level: 5 × 10-4Pa

Working Vacuum Level: 1 × 10-3Pa

Vacuum Speed: <60min (up to 5 × 10-4Pa)

Alarms: Over temperature, vacuum level, gas air pressure, motor overload, and power lines reversed etc

Furnace Dimensions: 1200mm×1700mm×2200mm(W×H×D)
