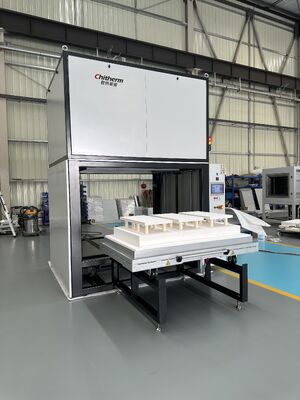

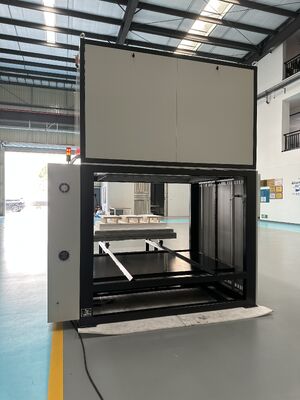

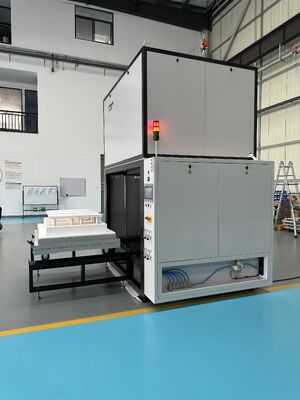

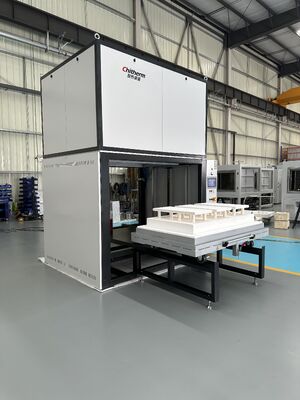

Model BF390-14 Bell Type High Temp Sintering Furnace
1. Equipment Name & Model: Model BF390-14 High-Temperature Bell Furnace
2. Technical Specifications & Basic Configuration
2.1 Rated Temperature: 1300℃
2.2 Maximum Temperature: 1400℃
2.3 Effective Chamber Dimension: 990mm×600mm×660mm (W×H×D)
2.4 Size of Setter Plate: 330×330mm (6 stacks)
2.5 Sagger Specification: Φ100×70mm (to be supplied by customer)
2.6 Equipment Capacity: 9 saggers per setter plate, 54 saggers per layer, total 8 layers, i.e. 432 saggers per batch
2.7 Max. Heating Power: 80kW
2.8 Number of Temperature Zones: 1
2.9 Heating Element: Silicon Carbide Rod (SiC Rod)
2.10 Furnace Temperature Uniformity: ±5℃ (no-load test, constant temperature at 1300℃ platform for 2 hours)
2.11 Temperature Control Accuracy: ±1℃ (holding at high-temperature platform)
2.12 Program Control: SCR control module
2.13 Lifting Method: Screw drive lifting system
2.14 Thermocouple Type: Type S
2.15 Temperature Control Mode: Imported intelligent temperature controller with PID auto-tuning function
2.16 Heating Rate: 0.5~5.0℃/min
2.17 Sintering Atmosphere: Air
2.18 Exhaust System: Exhaust port arranged on the top for waste gas discharge; the valve on exhaust pipe can automatically adjust opening degree.
2.19 Alarm & Protection: Acousto-optic alarm and protection functions for over-temperature, motor overload, over-travel and other faults.
2.20 Surface Temperature Rise: ≤40℃
2.21 Overall Reference Dimension: 2670mm×3250mm×3000mm (W×H×D), excluding exhaust pipe
2.22 Equipment Weight: Approx. 3500kg 2.23 Equipment Color: Light Grey
Lifting Platform
The lifting platform is driven by two lead screws for lifting movement, combined with four guide rods and guide sleeve assemblies to ensure stable lifting of the platform. The platform can stop instantly during lifting. Limit switches are installed for upper and lower end positions; the platform will automatically stop once it reaches the upper or lower limit position.
Atmosphere System
Air inlet ports are arranged at the front and rear outside the furnace chamber. The gas flow of each inlet port is independently controlled by a glass rotameter with a single range of 5~50L/min. Multiple exhaust holes are set on the top of the furnace chamber. Sintering waste gas is discharged out of the furnace chamber through the exhaust holes and finally converges at the main exhaust outlet on the furnace top.
Control System
Centralized control via touch screen + PLC, with user-friendly HMI and simple operation.
