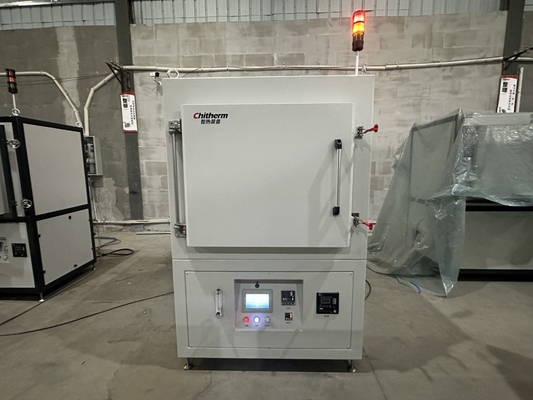

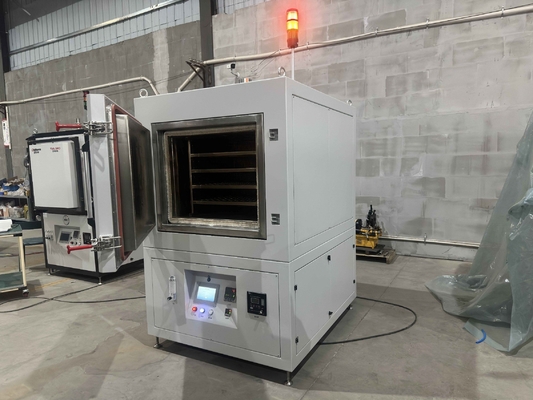

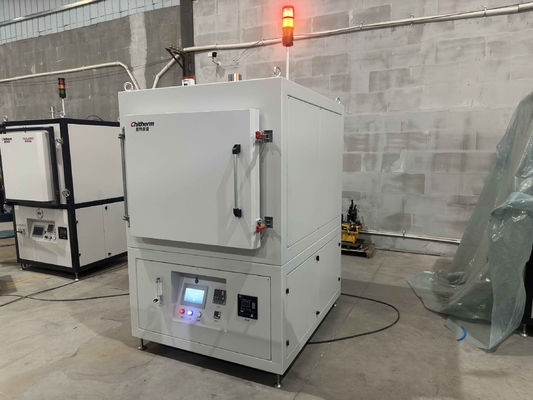

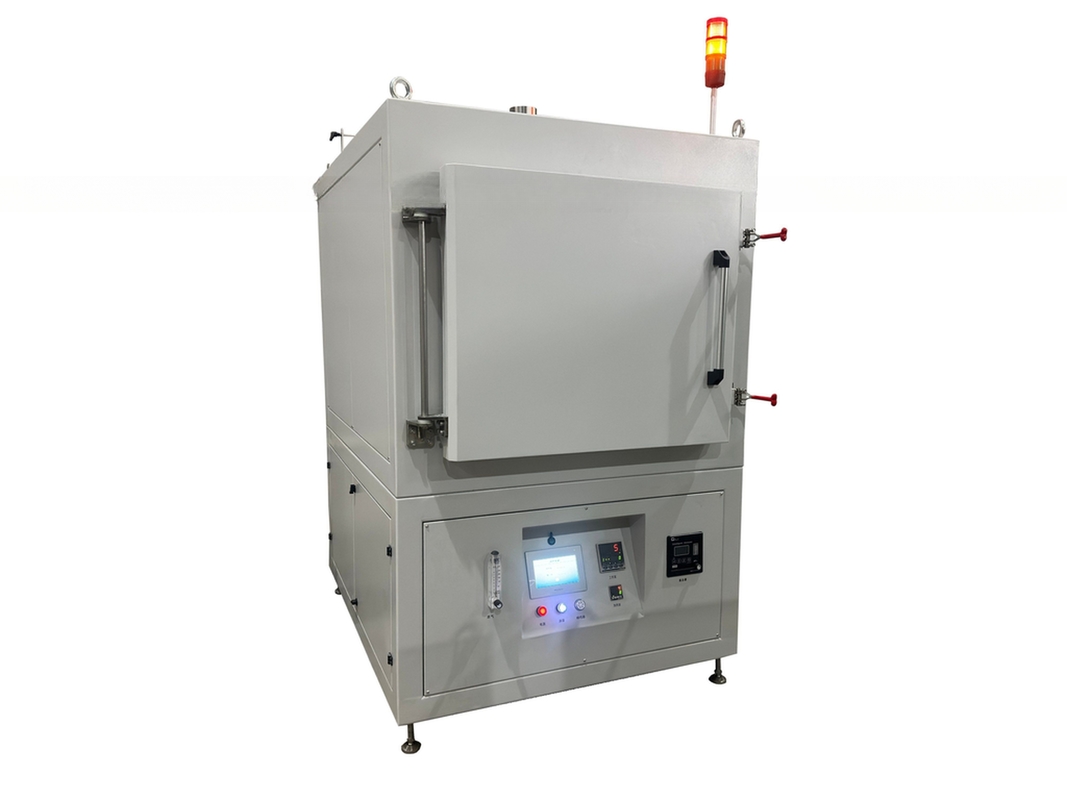

3 Phase Nitrogen Heating Hot Air Drying Oven 18kW 380V

Large Image : 3 Phase Nitrogen Heating Hot Air Drying Oven 18kW 380V

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	HRF216-05N

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now

3 Phase Nitrogen Heating Hot Air Drying Oven 18kW 380V

Description

Range Of Applications:	Industrial	Type:	Electric Holding Furnace
Usage:	Ceramic Drying	Atmosphere:	Nitrogen
Effective Chamber Dimensions:	600600600mm(WHD)	Transport Package:	Wooden Packaging
Specification:	135017501950mm(WHD)	Trademark:	Chitherm
Origin:	China	HS Code:	8514101000
Production Capacity:	50 Sets/Year
Highlight:	3 phase Hot Air Drying Oven , 380V Hot Air Drying Oven , 18kW heating drying oven

3 Phase Nitrogen Heating Hot Air Drying Oven 18kW 380V

Product Specifications

Attribute	Value
Range of Applications	Industrial
Type	Electric Holding Furnace
Usage	Ceramic Drying
Atmosphere	Nitrogen
Effective Chamber Dimensions	600600600mm (WHD)
Transport Package	Wooden Packaging
Specification	135017501950mm (WHD)
Trademark	Chitherm
Origin	China
HS Code	8514101000
Production Capacity	50 Sets/Year

Product Description

50 Sets/Year Chitherm HRF216-05N Nitrogen Drying Oven designed for industrial ceramic drying applications.

Applications

Primarily used for binder burning out (BBO) process of electronic components and ceramic substrates.

Technical Specifications

Rated Temperature: 350ºC

Max Temperature: 500ºC

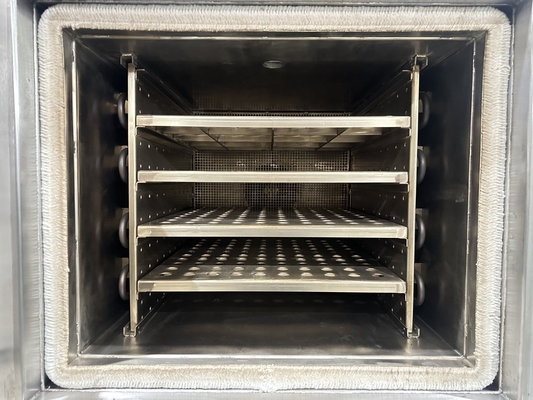

Effective Dimensions: 600 × 600 × 600mm (W×H×D)

Heating Method: Stainless Steel Heater

Process Atmosphere: Nitrogen

Temperature Control Stability: ±1ºC with PID parameter self-tuning

Temperature Uniformity: ±5ºC (at 400ºC after 1 hour insulation)

Thermocouple: Type K

Temperature Control Points: 1

Temperature Measurement Points: 1

Process Steps: 4 × 10 steps

Exhaust: Top-mounted exhaust port

Alarm System: Sound and light alarms for over temperature and thermocouple failure

Max Heating Power: 18kW

Insulation Power: ≤ 12kW

Surface Temperature Rise: ≤ 35ºC

Weight: ~900kg

Furnace Dimensions: ~1350×1750×21950mm (W×H×D)

Appearance Color: Light gray

Delivery List

Item	Note	QTY
Basic Compositions	Dryer	1 PC
Certificates of Inspection	Dryer and major purchased components	1 Set
Technical Documents	Manual instructions, technical documents of major purchased components	1 Set
Key Parts	Heating Elements (Stainless Steel Heater)	1 Set
Thermocouple	WATLOW/THERMOWAY, Type K	1 PC
Temperature Controller		1 Set

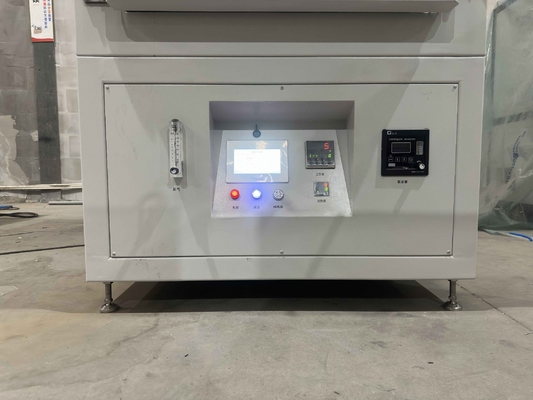

Monitor	Touch screen	1 Set
Spares	SSR	1 PC

Facility Requirements

Environmental conditions: Temperature 0-40ºC, humidity ≤80% RH, no corrosive gas, no strong airflow disturbance
Process air conditions: 99.999% purity nitrogen, pressure 0.2-0.4Mpa, gas consumption 10m³/h
Ventilation system: Non-contact access to user pumping system (>15m³/h capacity)
Ground requirements: Level surface, no vibration, bearing capacity >300Kg/m²
Power conditions: >24kVA capacity, 3 phase 5 wire (220/380V, 50Hz)
Installation site: Minimum 2000×3000×3000mm (W×H×D), >6m² area
