24kW Rubber Removal Hot Air Drying Oven Industrial Muffle Furnace

Large Image : 24kW Rubber Removal Hot Air Drying Oven Industrial Muffle Furnace

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	Hrf216-07

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now

24kW Rubber Removal Hot Air Drying Oven Industrial Muffle Furnace

Description

Product Name:	Hot Air Rubber Removal Furnace	Range Of Applications:	Industrial
Type:	Electric Holding Furnace	Usage:	Ceramic Drying
Fuel:	Electric	Atmosphere:	Air
Effective Chamber Dimensions:	600600600mm(WHD)	Transport Package:	Wooden Packaging
Specification:	130017101800mm(WHD)	Trademark:	Chitherm
Origin:	China	HS Code:	8514101000
Production Capacity:	50 Sets/Year
Highlight:	24kW Hot Air Drying Oven , Rubber Removal Hot Air Drying Oven , 24kW industrial muffle furnace

24kW Rubber Removal Hot Air Drying Oven Industrial Muffle Furnace

Product Specifications

Attribute	Value
Product Name	Hot Air Rubber Removal Furnace
Range of Applications	Industrial
Type	Electric Holding Furnace
Usage	Ceramic Drying
Fuel	Electric
Atmosphere	Air
Effective Chamber Dimensions	600600600mm(WHD)
Transport Package	Wooden Packaging
Specification	130017101800mm(WHD)
Trademark	Chitherm
Origin	China
HS Code	8514101000
Production Capacity	50 Sets/Year

Product Description

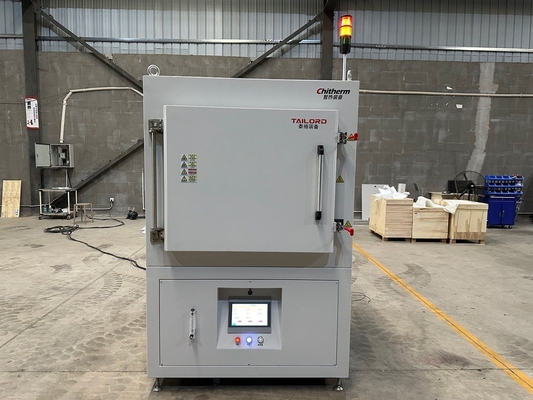

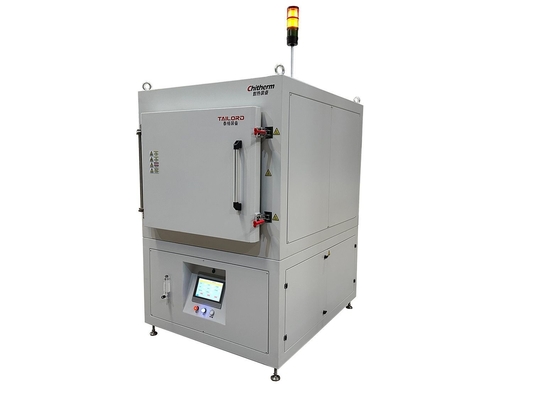

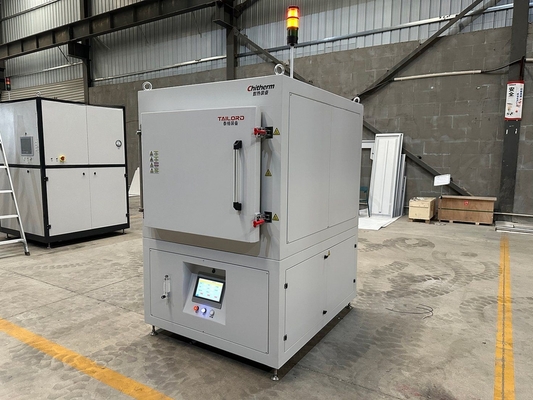

Chitherm Hrf216-07 Hot Air Rubber Removal Furnace with Effective Chamber Dimensions 600*600*600mm

Applications

Mainly used for binder burning out (BBO) process of electronic components and ceramic substrates.

Technical Specifications

Rated Temperature: 600ºC
Maximum Temperature: 650ºC
Effective Dimensions: 600 × 600 × 600mm (W×H×D)
Heating Method: Stainless Steel Heater
Process Atmosphere: Air
Temperature Control Stability: ±1ºC, with PID parameter self-tuning function
Temperature Uniformity: better than ±5ºC (insulation 1 hour at 400ºC test)
Thermocouple: Type K
Temperature control points: 1
Temperature measurement points: 1 point
Process Steps: 4 × 16 steps
Exhaust: One exhaust port on top
Alarm System: Over temperature, thermocouple failure and other abnormal conditions will activate sound and light alarm protection
Maximum Heating Power: 24kW
Insulation Power: ≤ 12kW
Surface Temperature Rise: ≤ 35ºC
Weight: about 1000kg
Furnace Dimensions: about 1300×1710×1800mm (W×H×D)
Appearance Color: light gray

Delivery List

Item	Note	QTY
Basic Compositions
Dryer		1 PC
Certificates of Inspection	Dryer and major purchased components	1 Set
Technical Documents	Manual instructions, technical documents of major purchased components, etc	1 Set
Key Parts
Heating Elements	Stainless Steel Heater	1 Set
Thermocouple	WATLOW/THERMOWAY, Type K	1 PC

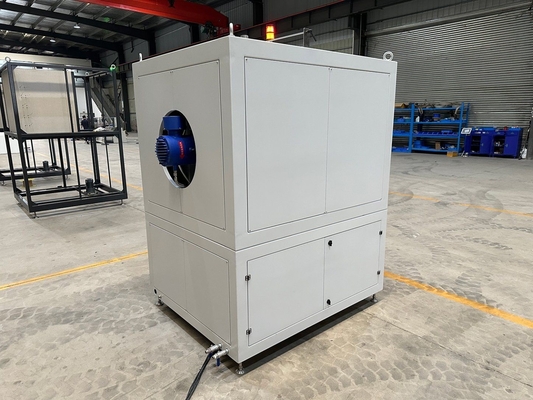

Air circulator	Water cooling fan
Temperature Controller		1 Set

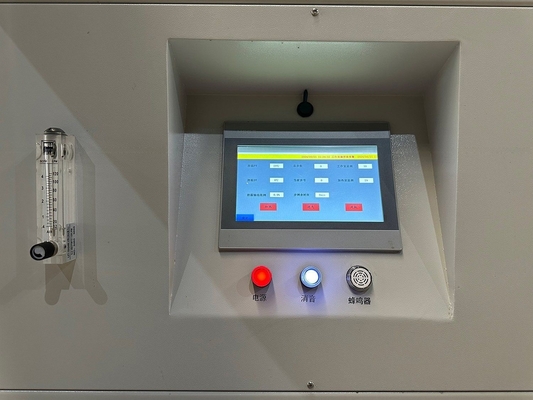

Monitor	Touch screen	1 Set
Spares
SSR		1 PC

Facility Requirements

Environmental Conditions

Temperature 0 - 40ºC, humidity ≤ 80% RH, no corrosive gas, no strong airflow disturbance.

Process Air Conditions

Clean compressed air, pressure 0.2 - 0.4Mpa, gas consumption 3-7m3/h.

Ventilation System

Non-contact access to the user pumping system, pumping capacity greater than 10m3/h.

Ground Requirements

Level, no obvious vibration, bearing capacity >300Kg/m2.

Power Conditions

Capacity greater than 32kVA, 3 phases 5 lines, voltage 220/380V, frequency 50Hz (according to local situation). Live wire: yellow, green, red, neutral wire: blue, ground wire: yellow-green.

Installation Site

2000mm×3000mm×3000mm (W×H×D), installation area greater than 6m2.
