Ceramic Hot Air Circulation Drying Oven Box Large Muffle Furnace For Heat Treatment

Large Image : Ceramic Hot Air Circulation Drying Oven Box Large Muffle Furnace For Heat Treatment

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	HRF535-02

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now Chat Now

Ceramic Hot Air Circulation Drying Oven Box Large Muffle Furnace For Heat Treatment

Description

Range Of Applications:	Industrial	Type:	Electric Holding Furnace
Usage:	Ceramic Drying	Fuel:	Electric
Atmosphere:	Nitrogen	Effective Chamber Dimensions:	850700900mm(WHD)
Transport Package:	Wooden Packaging	Specification:	144019301080mm(WHD)
Trademark:	Chitherm	Origin:	China
HS Code:	8514101000	Production Capacity:	50 Sets/Year
Highlight:	Ceramic hot air circulation drying oven , Muffle hot air circulation drying oven , Heat Treatment large muffle furnace

Ceramic Hot Air Circulation Drying Oven Box Large Muffle Furnace For Heat Treatment

Product Specifications

Attribute	Value
Range of Applications	Industrial
Type	Electric Holding Furnace
Usage	Ceramic Drying
Fuel	Electric
Atmosphere	Nitrogen
Effective Chamber Dimensions	850700900mm(WHD)
Transport Package	Wooden Packaging
Specification	144019301080mm(WHD)
Trademark	Chitherm
Origin	China
HS Code	8514101000
Production Capacity	50 Sets/Year

Product Description

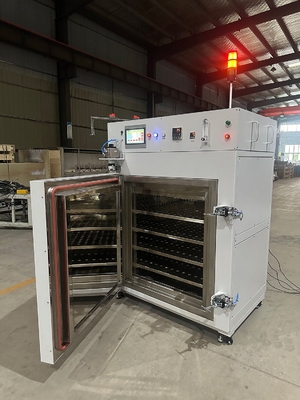

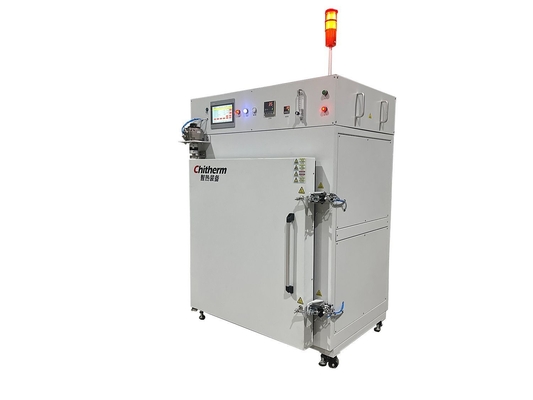

Chitherm HRF535-02 Hot Air Box Furnace for Heat Treatment Processes 1440*1930*1080mm W*H*D

Applications

Widely used in processes such as constant temperature drying, curing, and glue dispensing for electronic ceramics and other products.

Technical Specifications

Rated Temp.: RT+10 ~200ºC
Max Temp.: 300ºC
Effective Dimensions: 850×700×900mm(W×D×H)
Heating Method: Customized Heater
Process Atmosphere: Nitrogen
Temperature Control Stability: ±1ºC, with PID parameter self-tuning function
Temperature Uniformity: better than ±3ºC (insulation 1 hour at 200ºC test)
Thermocouple: Type K
Temperature control points: 1
Temperature monitoring points: 1 point
Process Steps: 20 steps
Exhaust: One exhaust port on top
Alarm System: over temperature, thermocouple failure and other abnormal conditions will activate sound and light alarm protection
Max Heating Power: 10kW
Insulation Power: ≤ 5kW
Surface Temperature Rise: ≤ 35ºC
Weight: about 700kg
Furnace Dimensions: about 1400mm×1930mm×1080mm(W×H×D)
Appearance Color: light gray

Delivery List

Item	Note	QTY
Basic Compositions	Dryer	1 PC
Certificates of Inspection	Dryer and major purchased components	1 Set
Technical Documents	Manual instructions, technical documents of major purchased components, etc	1 Set
Key Parts	Heating Elements	1 Set
Thermocouple	WATLOW/THERMOWAY, Type K	1 PC
Temperature Controller		1 Set

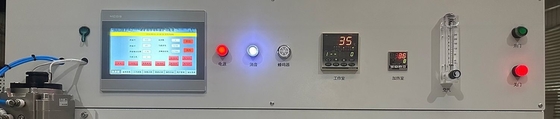

Monitor	Touch screen	1 Set
Spares	SSR	1 PC

Facility Requirements

Environmental conditions: Temperature 0 - 40ºC, humidity ≤ 80% RH, no corrosive gas, no strong airflow disturbance.

Process air conditions: 99.999% purity nitrogen, pressure 0.2 - 0.4Mpa, gas consumption 5-15m3/h.

Ventilation system: non-contact access to the user pumping system, pumping capacity is greater than 15m3/h.

Ground requirements: level, no obvious vibration, bearing capacity >300Kg/m2.

Power conditions: capacity greater than14kVA, 3 phases 5 lines, voltage 220/380V, frequency 50Hz(according to local situation). Live wire: yellow, green, red, neutral wire: blue, ground wire: yellow-green.

Installation site: 2500mm×2100mm×3000mm (W×H×D), installation area greater than 5m2.
