1150Ordm C Heat Treatment Electric CIM MIM Sintering Furnace For Metalworking Annealing Degreasing

Large Image : 1150Ordm C Heat Treatment Electric CIM MIM Sintering Furnace For Metalworking Annealing Degreasing

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	hwf260-11nh

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now

1150Ordm C Heat Treatment Electric CIM MIM Sintering Furnace For Metalworking Annealing Degreasing

Description

Range Of Applications:	Industrial	Type:	Electric Holding Furnace
Usage:	Ceramic Sintering	Fuel:	Electric
Atmosphere:	Air/H2/N2	Effective Chamber Dimensions:	Φ5501000(DH)
Transport Package:	Wooden Packaging	Specification:	210039002500mm(WHD)
Trademark:	Chitherm	Origin:	China
HS Code:	8514101000	Supply Ability:	50 Sets/Year
Customization:	Available	Certification:	ISO
Place Style:	Vertical
Highlight:	Metalworking mim sintering furnace , CIM mim sintering furnace , CIM heat treatment annealing furnace

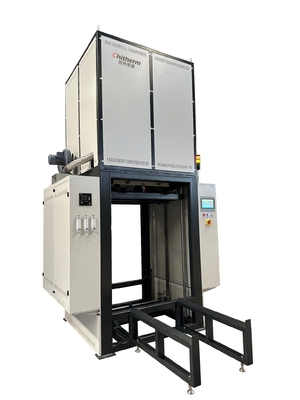

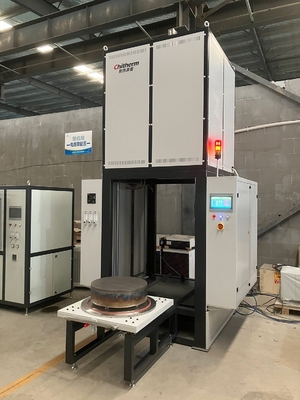

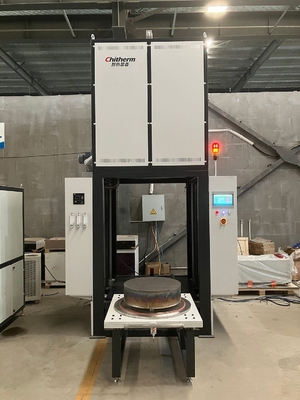

1150 ordm C Hwf260-11nh Electric Elevator Furnace Cim/MIM Annealing Degreasing Tank Furnace Hwf260-11nh for Metalworking

1. Application:
Brazing, annealing, CIM/MIM (Compression Injection Molding/Metal Injection Molding), degreasing, degassing, drying, pyrolysis, quenching, rapid prototyping, sintering, welding, sublimation, synthesis, tempering, and other processes. 1150º C Hwf260-11nh Elevator furnace Cim/MIM Annealing Degreasing Tank Furnace

2. Technical Specification:

Rated Temp.:1100ºC
Max Temp.:1150ºC
Effective Dimensions:Φ550×1100mm(d×H).
Heating Method:FEC ceramic fiber heater.
Thermcouple:N-Type.
Temp. Set Accuracy: ±1ºC
Temp. Control Mode:The Japanese Programmable Temperature Controller features PID auto-tuning functionality.
Temp. Uniformity: ± 5ºC .
Maximum Heating Power:54kW
Insulation Power:≤25kW
Operating Atmosphere: Air/N2/H2.
Heating rate: ≤5ºC/min.
Surface temperature rise: ≤35ºC
Temperature control points: 3 independently controlled zones (upper, middle, lower).
Cooling method: Forced cooling via external blower.
External Dimensions: 2100×3900×2500mm(W×H×D) .
Appearance Color: Light gray.

3. Delivery List

Table 1 Delivery list
	Item	Note	Qty.
Basic Components	Furnace		1 SET
	Inspection Certificates	Certificates of major outsourced components	1 SET
	Technical Documents	Instructions, technical documents of the major outsourced parts, etc	1 SET
Key Components	Heating Method		1 SET

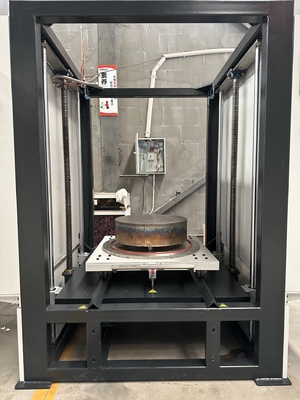

	llifting system		1 SET
	micro-oxygen analyzer		1 SET
	blower		1 SET
	Touch Screen		1 unit
	Temperature controller		1 SET
Spare Parts	SSR		1 PC

4.Equipment Normal Operating Conditions

Environmental Conditions: temperature: 0~40ºC, humidity≤ 80%RH, no corrosive gas, no strong airflow disturbance;

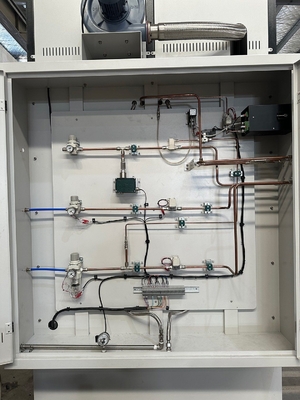

Nitrogen gas conditions: Supply pressure 0.2-0.4 MPa; purity ≥99.999%; consumption 3-7 m³/h;
Hydrogen gas conditions: Supply pressure 0.2-0.4 MPa; consumption 3-7 m³/h;
Air conditions: Supply pressure 0.2-0.4 MPa; clean, dry, oil-free; consumption 3-7 m³/h;
Water inlet conditions: 0.1-0.3 MPa; clean, non-corrosive; supply flow rate 1-3 L/min;
Ventilation system: Non-contact interface with user exhaust system; extraction capacity >10 m³/h;
Ground Requirements: horizontal, no obvious vibration, load-bearing> 500 Kg/m²;
Power Condition(TBD): capacity >75kVA, 3-phases 5-lines, voltage 220 / 380V, frequency 50Hz. Fire line: yellow, green, red, Zero line: blue, Ground line: yellow-green;
Installation Site:3500mm×3000mm×5000mm(D×W×H), with an installation area greater than 10m².
