Electric Fuel High Temperature Box Muffle Ovens Laboratory 1300 Ordm C

Large Image : Electric Fuel High Temperature Box Muffle Ovens Laboratory 1300 Ordm C

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	HBF300 - 13

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now Chat Now

Electric Fuel High Temperature Box Muffle Ovens Laboratory 1300 Ordm C

Description

Range Of Applications:	Industrial	Type:	Electric Holding Furnace
Usage:	Steel Molding	Fuel:	Electric
Atmosphere:	Air	Effective Chamber Dimensions:	1550&; 1800&; 1400 (mm) (W× H× D)
Rated Temperature:	1250ºC	Maximum Temperature:	1300°c
Transport Package:	Wooden Packaging	Specification:	1550&; 1800&; 1400 (mm) (W× H× D)
Trademark:	Chitherm	Origin:	China
HS Code:	8514101000	Supply Ability:	50 Sets/Year
Customization:	Available	Certification:	ISO
Place Style:	Vertical
Highlight:	Electric muffle ovens laboratory , 1300 Ordm muffle ovens laboratory , 1300 Ordm high temperature muffle furnace

Electric Fuel High Temperature Box Muffle Ovens Laboratory 1300°C

Product Specifications

Attribute	Value
Range of Applications	Industrial
Type	Electric Holding Furnace
Usage	Steel Molding
Fuel	Electric
Atmosphere	Air
Effective Chamber Dimensions	1550 × 1800 × 1400 mm (W×H×D)
Rated Temperature	1250°C
Maximum Temperature	1300°C
Transport Package	Wooden Packaging
Trademark	Chitherm
Origin	China
Certification	ISO

HBF300-13 High-Temperature Box Furnace

Designed for industrial processing needs, this electric fuel high temperature box furnace is ideal for sintering electronic components including ceramic capacitors, magnetic materials, and advanced ceramics.

Key Technical Specifications

Rated Temperature: 1250°C
Maximum Temperature: 1300°C
Furnace Chamber Dimensions: 560mm × 780mm × 700mm (W×H×D)
Heating Elements: Silicon-carbide rods with ceramic tube jackets
Temperature Control: ±1°C accuracy with PID self-tuning
Furnace Temperature Uniformity: ±5°C within 400×600×550mm area
Maximum Heating Power: 70kW
Heating Rate: ≤15°C/min
Safety Features: Over-temperature protection, thermocouple breakage alarms

Thermal Design Features

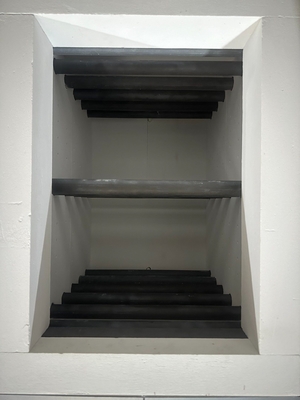

The furnace utilizes alumina refractory materials with ceramic fiber insulation boards. The heating system features top, middle, and bottom heating zones with independent temperature control at three points, ensuring exceptional temperature uniformity throughout the chamber.

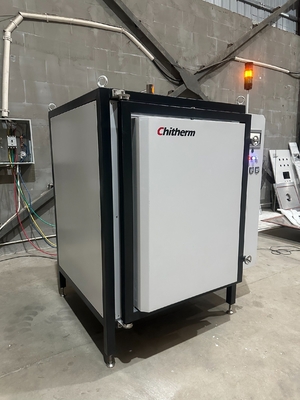

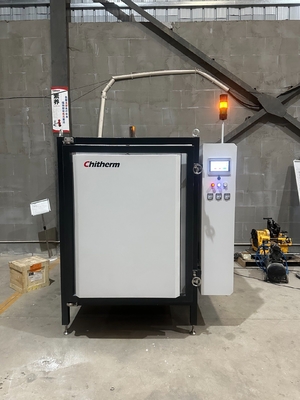

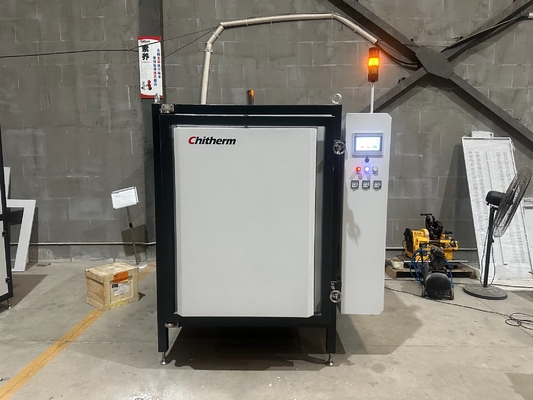

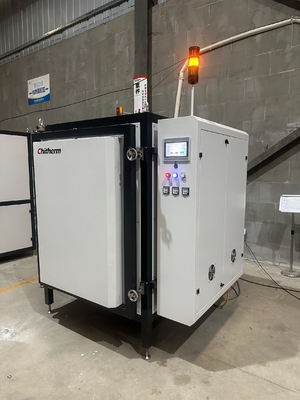

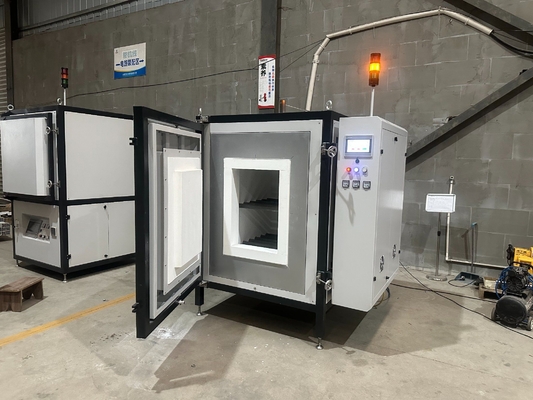

Product Images

Note: External dimensions measure approximately 1550mm × 1800mm × 1400mm (W×H×D, excluding chimney). All specifications subject to final product configuration.
