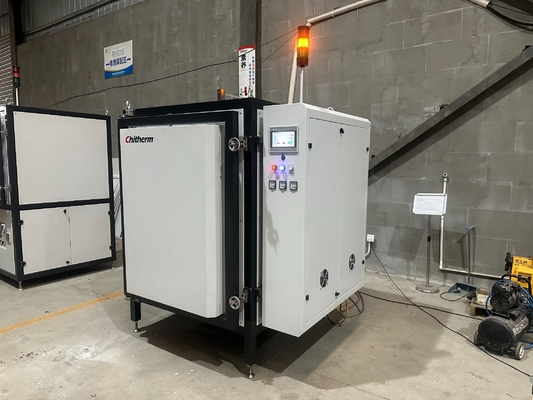

70kW Industrial Muffle Hot Air Drying Oven Electric Holding Furnace

Large Image : 70kW Industrial Muffle Hot Air Drying Oven Electric Holding Furnace

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	HBF300 - 13

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now

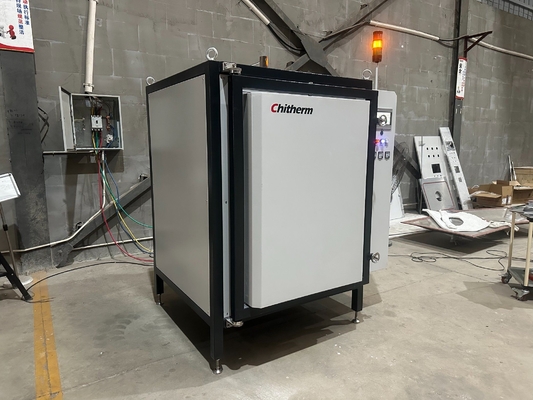

70kW Industrial Muffle Hot Air Drying Oven Electric Holding Furnace

Description

Model NO.:	HBF300 - 13	Range Of Applications:	Industrial
Type:	Electric Holding Furnace	Usage:	Steel Molding
Fuel:	Electric	Atmosphere:	Air
Effective Chamber Dimensions:	1550&; 1800&; 1400 (mm) (W× H× D)	Rated Temperature:	1250ºC
Maximum Temperature:	1300°c	Transport Package:	Wooden Packaging
Specification:	1550&; 1800&; 1400 (mm) (W× H× D)	Trademark:	Chitherm
Origin:	China	HS Code:	8514101000
Supply Ability:	50 Sets/Year	Customization:	Available
Certification:	ISO	Place Style:	Vertical
Highlight:	70kW Hot Air Drying Oven , Muffle Hot Air Drying Oven , Industrial muffle furnace oven

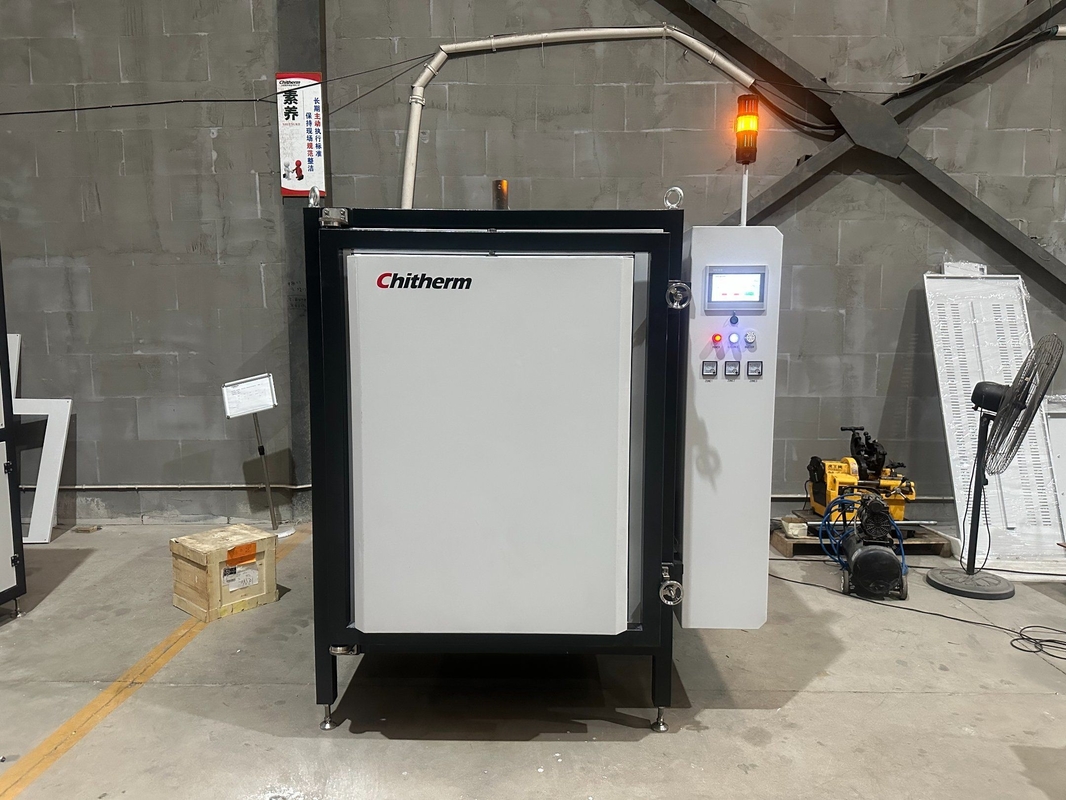

Industrial Electric Holding Furnace with Three-Point Independent Temperature Control Hbf300 13 Temperature Box Furnace

1. Equipment Name and Model:

HBF300 - 13 High - Temperature Box Furnace

2. Application Areas:

It is mainly used in the sintering process of electronic components such as ceramic capacitors, magnetic materials, and advanced ceramics.

3. Technical Indicators and Basic Configuration

3.1 Rated Temperature:1250°C

3.2 Maximum Temperature:1300°C

3.3 Furnace Chamber Dimensions:560mm × 780mm × 700mm (W × H × D)

3.4 Loading Method:Firing support plate

3.5 Heating Elements:Silicon - carbide rods with ceramic tube jackets

3.6 Heating Method:Top, middle, and bottom heating

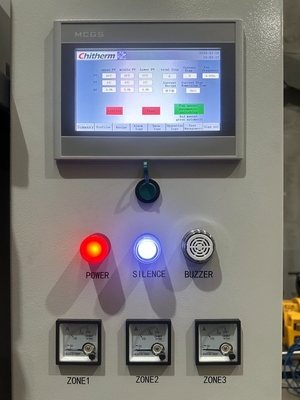

3.7 Temperature Control Points:Independent temperature control at three points: top, middle, and bottom

3.8 Thermocouple Type:S - type calibration

3.9 Temperature Control Method:Imported temperature control module, with a temperature control accuracy of ±1°C and self - tuning function for PID parameters

3.10 Furnace Temperature Uniformity:±5°C within the area of 400×600×550mm (tested in an empty furnace at a constant temperature of 1250°C, measured by a temperature - measuring ring)

3.11 Air Intake Method:Air intake by a blower, with variable - frequency adjustable air volume. The on/off of the blower and the air volume can be set in different program segments.

3.12 Exhaust Method:An exhaust chimney is installed on the top of the equipment, and the opening size of the chimney valve can be manually adjusted.

3.13 Number of Heating Stages:9 stages (10 curves)

3.14 Maximum Heating Power:70kW

3.15 Heating Rate:≤15°C/min

3.16 Cooling Method:Natural cooling

3.17 Temperature Rise on the Furnace Body Surface:≤35°C

3.18 Alarm Protection

Interlocking between heating and furnace door opening/closing actions. Sound and light alarms for over - temperature, thermocouple breakage, etc.

3.19 Reference Dimensions of the External Shape:1550mm × 1800mm × 1400mm (W × H × D, excluding the chimney). The specific dimensions shall be subject to the actual product.

4. General Technical Description

Thermal Design

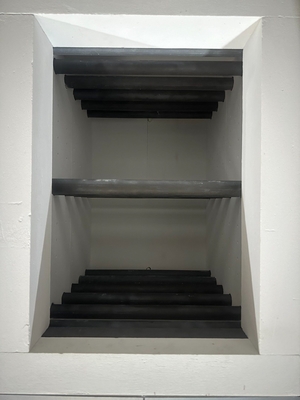

Alumina products are selected as the inner - layer refractory materials, and outer - layer ceramic fiber standard boards assist in heat insulation. The refractory materials at the furnace mouth and furnace door are also made by splicing alumina products. The heating method is top, middle, and bottom heating. The heating elements divide the entire cavity into two independent small cavities: upper and lower. The temperature control method is independent temperature control at three points: top, middle, and bottom, ensuring the uniformity of the furnace temperature within the entire cavity. The firing support plate is placed on the ceramic tubes in the furnace chamber, and the single - plate load - bearing capacity is not less than 150kg. Figure 1 is a schematic diagram of the equipment structure. The specific appearance shall be subject to the actual product.

5.Equipment Conditions

5.1 Transportation and On-site Installation of the Equipment
5.1.1 Equipment Transportation Method: Overall transportation;
5.1.2 Installation Equipment: 1 forklift or crane;
5.1.3 Equipment Unloading and Positioning: After the equipment is transported to the customer's site, the customer shall inspect whether the equipment is damaged. If there is no damage, the customer shall be responsible for unloading the equipment to the position designated by the customer;
5.1.4 Preparation before Installation: Before installing the equipment, the customer needs to make relevant preparations in advance. For specific parameters, please refer to (Normal Operating Conditions of the Equipment);
5.1.5 Customer's Responsibilities: Be responsible for the positioning of the equipment at the usage site, including the unloading of the equipment, the wiring of the external wires of the equipment to the main switch of the equipment, and the ventilation system of the factory building (including the air hood, etc.);
5.1.6 Manufacturer's Responsibilities: Be responsible for the on-site assembly of the equipment, the construction of the furnace chamber, and the functional debugging of the equipment, and assist the buyer in process debugging.

5.2 Normal Operating Conditions of the Equipment
5.2.1 Environmental Conditions: Temperature 0~40°C, humidity ≤80%RH, no corrosive gases, and no strong air flow disturbances;
5.2.2 Ventilation System: Non-contact access to the user's air extraction system, with an exhaust capacity greater than 10m3/h;
5.2.3 Power Conditions: Capacity greater than 90KVA, 3-phase 5-wire, voltage 240/(380-415)V, frequency 50Hz. Live wires: yellow, green, red; neutral wire: blue; ground wire: yellow-green;
5.2.4 Installation Site: 2800mm×2000mm×3000mm (D×W×H), and the installation area is greater than 6m².
