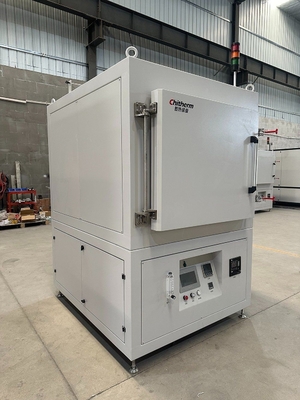

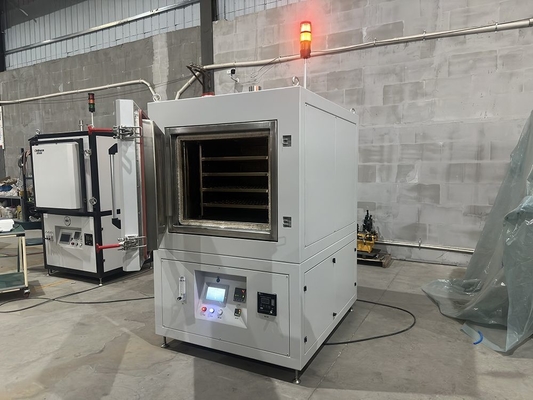

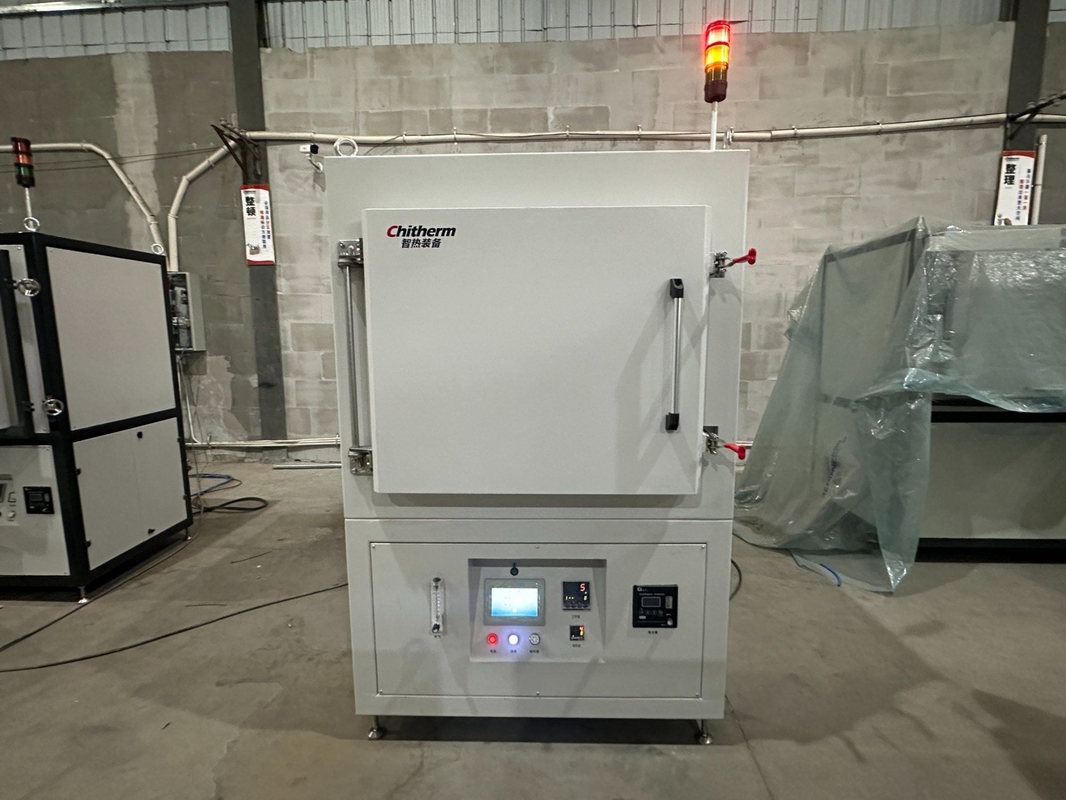

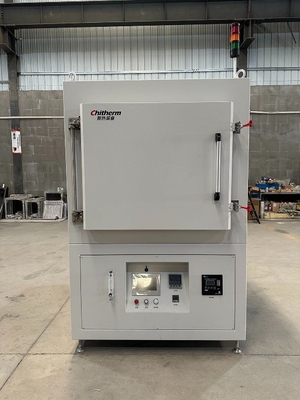

Industrial Vacuum Nitrogen Dry Hot Air Oven 5Ordm C Customized

Large Image : Industrial Vacuum Nitrogen Dry Hot Air Oven 5Ordm C Customized

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	HRF216-05N

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now

Industrial Vacuum Nitrogen Dry Hot Air Oven 5Ordm C Customized

Description

Range Of Applications:	Industrial	Type:	Electric Holding Furnace
Usage:	Ceramic Drying	Atmosphere:	Nitrogen
Effective Chamber Dimensions:	600600600mm(WHD)	Rated Temp.:	350ºC
Max Temp.:	500ºC	Transport Package:	Wooden Packaging
Specification:	135017501950mm(WHD)	Trademark:	Chitherm
Origin:	China	HS Code:	8514101000
Supply Ability:	50 Sets/Year	Customization:	Available
Certification:	ISO	Place Style:	Vertical
Highlight:	Industrial dry hot air oven , 5Ordm dry hot air oven , Nitrogen industrial vacuum oven

Hrf216-05n Nitrogen Oven Temperature Uniformity Better Than plusmn 5 ordm C Customizable for Your Specific Applications

1. Applications:

Mainly used for binder burning out(BBO) process of electronic components, ceramic substrates.

2. Mainly Specifics:

Rated Temp.: 350ºC
Max Temp.: 500ºC

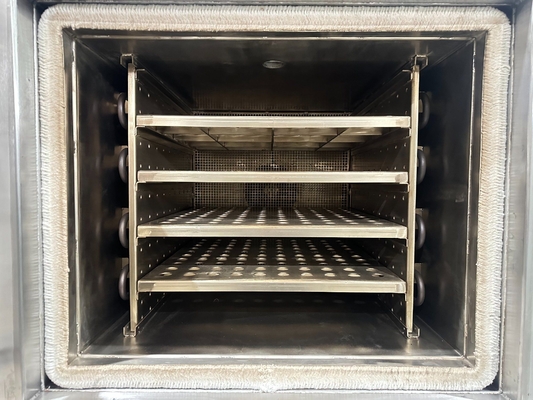

Effective Dimensions: 600 × 600 × 600mm(W×H×D)
Heating Method: Stainless Steel Heater
Process Atmosphere: Nitrogen
Temperature Control Stability: ±1ºC, with PID parameter self-tuning function
Temperature Uniformity: better than ±5ºC (insulation 1 hour at 400ºC test)
Thermocouple: Type K
Temperature control points: 1
Temperature measurement points: 1 point
Process Steps: 4 × 10 steps
Exhaust: One exhaust port on top
Alarm System: over temperature, thermocouple failure and other abnormal conditions will activate sound and light alarm protection
Max Heating Power: 18kW
Insulation Power: ≤ 12kW
Surface Temperature Rise: ≤ 35ºC
Weight: about 900kg
Furnace Dimensions: about 1350×1750×21950mm (W×H×D);
Appearance Color: light gray

3. Delivery List
	Item	Note	QTY
Basic Compositions	Dryer		1 PC
	Certificates of Inspection	Dryer and major purchased components	1 Set
	Technical Documents	Manual instructions, technical documents of major purchased components, etc	1 Set
Key Parts	Heating Elements	Stainless Steel Heater	1 Set
	Thermocouple	WATLOW/THERMOWAY, Type K	1 PC
	Temperature Controller		1 Set

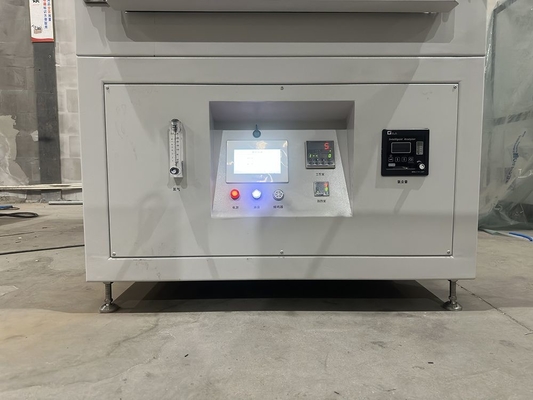

	Monitor	Touch screen	1 Set
Spares	SSR		1 PC

4. Facility Requirements
4.1 Environmental conditions: Temperature 0 - 40ºC, humidity ≤ 80% RH, no corrosive gas, no strong
airflow disturbance.
4.2 Process air conditions: 99.999% purity nitrogen, pressure 0.2 - 0.4Mpa, gas consumption 10m³ /h.
4.3 Ventilation system: non-contact access to the user pumping system, pumping capacity is greater
than 15m³ /h;
4.4 Ground requirements: level, no obvious vibration, bearing capacity >300Kg/m².
4.5 Power conditions: capacity greater than 24kVA, 3 phases 5 lines, voltage 220/380V, frequency
50Hz(according to local situation). Live wire: yellow, green, red, neutral wire: blue, ground wire: yellow-green;
4.6 Installation site: 2000mm×3000mm×3000mm (W*H*D), installation area greater than 6m².
Hrf216-05n Nitrogen Oven, Temperature Uniformity Better Than ± 5º C
