Melting Debinding Hot Air Drying Oven Furnace For Scientific

Large Image : Melting Debinding Hot Air Drying Oven Furnace For Scientific

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	Hrf800-06NO

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now

Melting Debinding Hot Air Drying Oven Furnace For Scientific

Description

Range Of Applications:	Industrial	Type:	Electric Holding Furnace
Usage:	Drying	Fuel:	Electric
Atmosphere:	Nitrogen	Effective Chamber Dimensions:	80010001000mm(WHD)
Transport Package:	Wooden Packaging	Specification:	150016301350mm(WHD)
Trademark:	Chitherm	Origin:	China
HS Code:	8514101000	Supply Ability:	50 Sets/Year
Customization:	Available	Certification:	ISO
Place Style:	Vertical
Highlight:	Debinding Hot Air Drying Oven , Hot Air Drying Oven Furnace , Debinding scientific drying oven

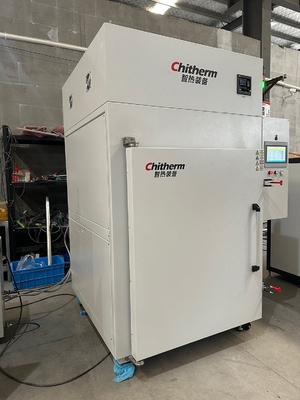

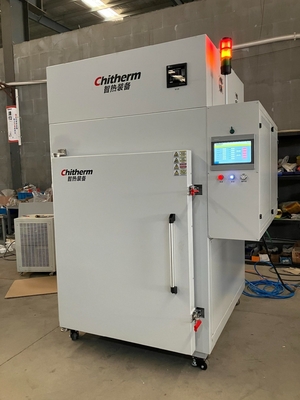

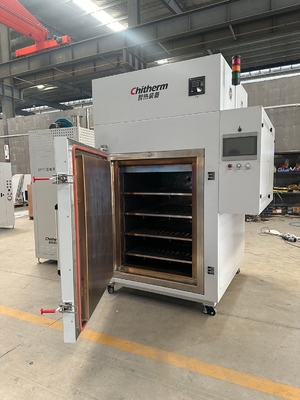

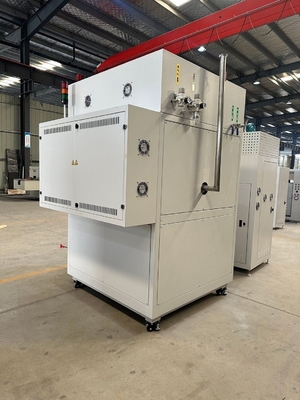

Melting Furnace Hrf800-06no Hot Air Debinding Furnace with Drying and Effective Chamber Dimensions 800*1000*1000mm W*H*D

The HRF800-06NO hot air debinding furnace is primarily designed for processes such as drying, curing, and debinding of semiconductors, electronic components, or materials. The equipment utilizes stainless steel heaters for heating, a centrifugal fan for air circulation, a double-layer stainless steel structure, and full fiber insulation for optimal thermal efficiency. It is controlled by an imported single-loop intelligent temperature controller, ensuring precise and reliable temperature management.

Performance Parameters

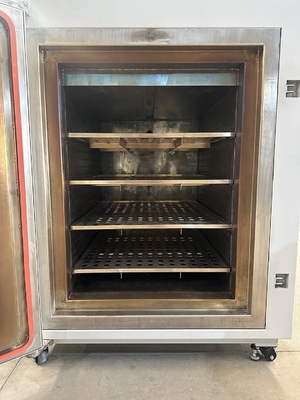

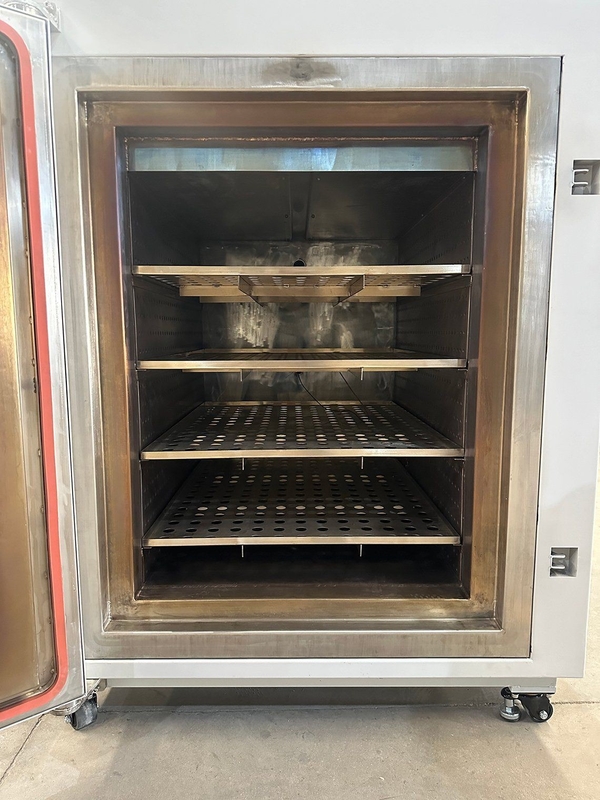

Effective Chamber Size: 800×1000×1000mm (W×H×D)
Long-Term Operating Temperature: 550ºC
Temperature Control Points: 1
Furnace Temperature Uniformity: ±3ºC (tested at 550ºC for 1 hour in an empty furnace)
Temperature Control Method: Uses imported temperature controller with PID parameter auto-tuning
Heating Element: Stainless steel heater
Temperature Control Segments: Can store 20 programs, with 40 steps per program
Alarm and Protection: Audible and visual alarms and protection for over-temperature, thermocouple break, and fan overload
Power Supply: 380VAC, 3-phase 5-wire, 32kVA
External Dimensions: 1630×2360×1380mm (W×H×D)

Melting Furnace Hrf800-06no Hot Air Debinding Furnace

Equipment Delivery Checklist

Table 1: Delivery Summary
	Name	Key Contents	Qty
Basic Components	Furnace Main Unit		1 set
	Electric Purification Furnace	Max. capacity 50m³	1 set
	Inspection Certificate	Certificates of major purchased components	1 set
	Technical Documentation	Manuals, technical files for purchased parts	1 set
Critical Components	Heater	Squirrel-Cage Type	1 set
	Control Thermocouple	Type K	1 pc
	Measurement Thermocouple	Type K	1 pc
	Monitoring Thermocouples	Type K	5 pcs
	Temperature Control Module	Japan-sourced	1 set
	PLC	Siemens	1 set
	UPS	1kVA	1 set

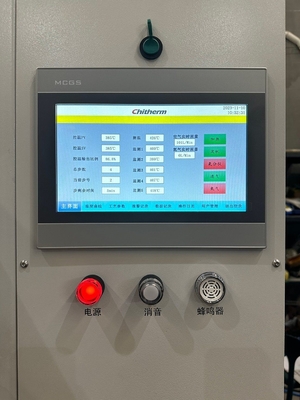

	Touch Screen	10-inch	1 set
	Oxygen Analyzer	CI-PC96	1 set
	Circulation Fan	Max. airflow 5000m³/h	1 set
	Chiller Unit	0.5m³/h	1 set
Spare Parts	Solid State Relay		1 pc
Spare Parts	Heater		1 pc

Equipment Operating Conditions
Environmental Conditions: Temperature 0-40ºC, Humidity ≤80% RH, non-corrosive gases, no strong airflow disturbance.
Gas Source Requirements: Clean, dry, oil-free compressed air or high-purity nitrogen gas (purity 99.999%), inlet pressure 0.2-0.4 MPa, gas consumption 10-30 m³/h.
Exhaust System: Non-contact interface with user exhaust system, exhaust capacity >30 m³/h.
Floor Requirements: Level, free from significant vibrations, load-bearing capacity >600 kg/m².
Power Supply: Capacity >40 kVA, 3-phase 5-wire system (voltage 220/380V, frequency 50Hz). Phase lines: Yellow, Green, Red; Neutral line: Blue; Ground line: Yellow-Green.
Installation Space: 2000mm×2600mm×3000mm (W×D×H), installation area exceeding 6 m².

Melting Furnace Hrf800-06no Hot Air Debinding Furnace
