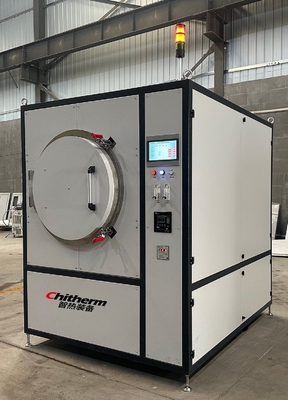

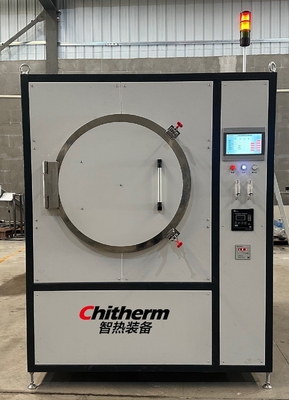

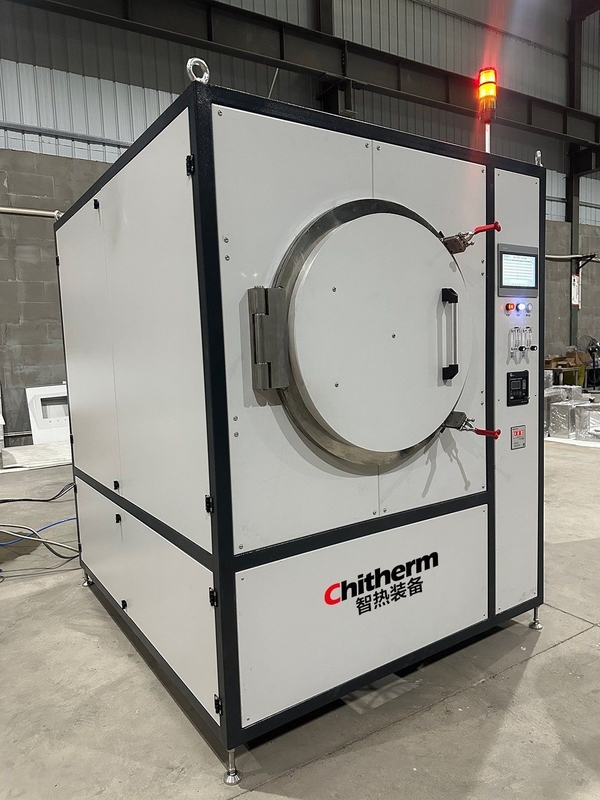

Controlled Atmosphere Programmable Muffle Furnace For Heat Treatment 1000 C

Large Image : Controlled Atmosphere Programmable Muffle Furnace For Heat Treatment 1000 C

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	hwf160-10nh

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now

Controlled Atmosphere Programmable Muffle Furnace For Heat Treatment 1000 C

Description

Range Of Applications:	Industrial	Type:	Electric Holding Furnace
Usage:	Ceramic Sintering	Fuel:	Electric
Atmosphere:	Vacuum/Nitrogen/Hydrogen	Effective Chamber Dimensions:	500500650mm(WHD)
Transport Package:	Wooden Packaging	Specification:	165019502000mm(WHD)
Trademark:	Chitherm	Origin:	China
HS Code:	8514101000	Supply Ability:	50 Sets/Year
Customization:	Available	Certification:	ISO
Place Style:	Vertical
Highlight:	Controlled Atmosphere programmable muffle furnace , 1000 C programmable muffle furnace , 1000C muffle furnace for heat treatment

Controlled Atmosphere Processing Hwf160-10nh Vacuum Atmosphere Furnace Heater Tank 1000 ordm C with ISO Certification

1. Application:

This furnace is mainly designed for soldering process of metal parts and HTCC package, also can be used in other processes such as decarburization, annealing, quenching, scorching, hardening, thermal decomposition.

2. Technical Specification:

Rated Temp.: 900ºC
Max Temp.: 1000ºC
Atmosphere: N₂, H₂, with humidification
Oxygen Content: Measured by O₂ content analyzer
Muffle Material: SUS 310S
Muffle Dimensions: φ750mm×900mm(d×D)
Effective Chamber Dimensions: 500×500×650mm(W×H×D)

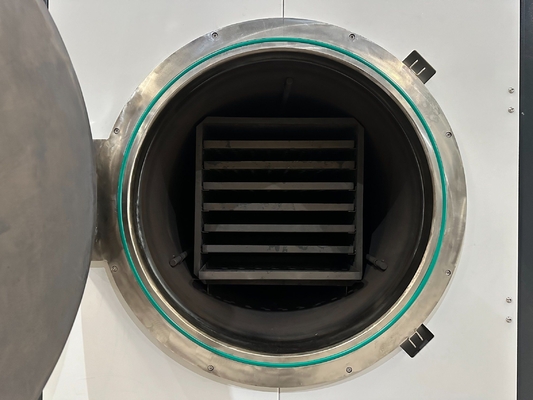

Loading Method: Manual, through horizontal guideway shelves
Heating Method: Resistance wire pre-built heating plate
Cooling Method: Air cooling with blower
Temp. Control Stability: ± 1ºC(controller with P.I.D function)
Profile Steps: Default 20 steps
Temp. Uniformity: ± 5ºC
Thermcouple: Type K
Temp Control: 3 Points
Temp. Measurement: 1 Point
Max. Heating Power: 40kW
Typical Insulation Power: ≤ 25kW
Heating Speed: ≤ 5ºC/min
Furnace Surface Temperature: ≤ 40ºC
Max Vacuum Value: ≤ 10Pa
Exhaust System: 1 exhaust port on the top with H₂ igniter
Alarm System: audible and visual alarm in case of over temp, thermcouple broken, low air pressure, low water pressure, substandard vacuum level, etc
Weight: 1500kg
Appearance Colour: Light Grey
External Dimensions: 1650mm×1950mm×2000mm (W×H×D)

3. Delivery List

Table 1 Delivery list
	Item	Note	Qty.
Basic Components	Furnace		1 SET
	inspection certificate	Certificate of major outsourced components	1 SET
	Technical Documents	Instructions, technical documents of the major outsourced parts, etc	1 SET
Key Components	Heating Element	FEC ceramic fiber heater	1 SET
	Vacuum System		1 SET

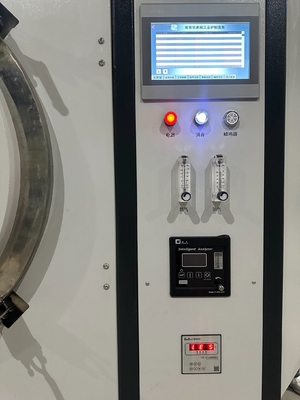

	Touch Screen		1 SET
	Temperature Controller	Azbil	1 SET
	Thermocouple	Type K	1 PCS
	PLC		1 SET
Spare Parts	SSR		1 PC

4. Facility Requirements

Environmental Conditions: temp.: 0~40ºC, humidity ≤ 80%RH, no corrosive gas, no strong airflow disturbance.
N₂ Conditions: 99.999% purity, working pressure: 0.2-0.4MPa, Max gas consumption 2-6 m³/h.
H₂ Conditions: working pressure: 0.2-0.4MPa, Max gas consumption 1-3m³/h.
Water Conditions: clean, no corrosive water, working pressure 0.1-0.3MPa, 3-9L/min
Ventilation System: non-contact access to the user pumping system, pumping capacity is greater than 15m³/h
Ground Requirements: horizontal, no obvious vibration, load-bearing> 500 kg/m²;
Power Condition(TBD): capacity > 55kVA, 3-phases 5-lines, voltage 220/380V, frequency 50Hz. Fire line: yellow, green, red, Zero line: blue, Ground line: yellow-green;
Installation Site: 3000mm×2500mm×3000mm(D×W×H), with an installation area greater than 7.5m².
