Hwf6630-10 Tank-Type Gas Phase Deposition Furnace Manufactured In China

Hwf6630-10 Tank-Type Gas Phase Deposition Furnace Manufactured In China
Hwf6630-10 Tank-Type Gas Phase Deposition Furnace Manufactured In China
Hwf6630-10 Tank-Type Gas Phase Deposition Furnace Manufactured In China Hwf6630-10 Tank-Type Gas Phase Deposition Furnace Manufactured In China Hwf6630-10 Tank-Type Gas Phase Deposition Furnace Manufactured In China Hwf6630-10 Tank-Type Gas Phase Deposition Furnace Manufactured In China Hwf6630-10 Tank-Type Gas Phase Deposition Furnace Manufactured In China Hwf6630-10 Tank-Type Gas Phase Deposition Furnace Manufactured In China Hwf6630-10 Tank-Type Gas Phase Deposition Furnace Manufactured In China Hwf6630-10 Tank-Type Gas Phase Deposition Furnace Manufactured In China Hwf6630-10 Tank-Type Gas Phase Deposition Furnace Manufactured In China Hwf6630-10 Tank-Type Gas Phase Deposition Furnace Manufactured In China

Large Image :  Hwf6630-10 Tank-Type Gas Phase Deposition Furnace Manufactured In China

Product Details:
Place of Origin: China
Brand Name: Chitherm
Model Number: HWF6630-10
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 23450.26-27917.00
Packaging Details: Wooden packaging 119*175*179cm
Delivery Time: 90 work days
Payment Terms: L/C,T/T
Supply Ability: 50 SET
Contact Now

Hwf6630-10 Tank-Type Gas Phase Deposition Furnace Manufactured In China

Description
Atmosphere: Nitrogen/Hydrogen/Acetylene Heating Zone Dimensions: Φ660×300mm(D*H)
Thermocouple Type: B Heating Rate: ≤6ºC/Min
Temperature Control Stability: ±1ºC
Highlight:

Tank Type Gas Phase Deposition Furnace

,

Hwf6630-10 Gas Phase Deposition Furnace

HWF6630-10 Tank-Type Gas Phase Deposition Furnace
Key Specifications
Attribute Value
Atmosphere Nitrogen/Hydrogen/Acetylene
Heating Zone Dimensions Φ660×300mm(D*H)
Thermocouple Type B
Heating Rate ≤6ºC/Min
Temperature Control Stability ±1ºC
Product Overview

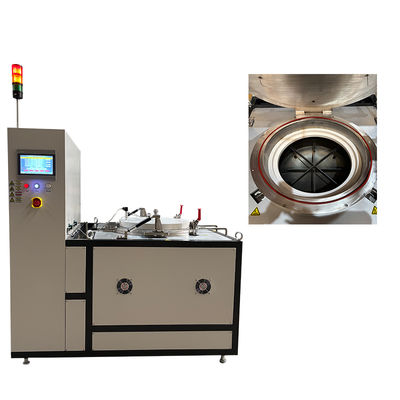

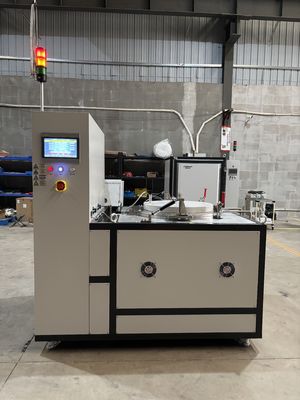

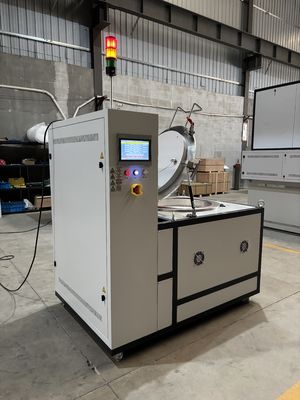

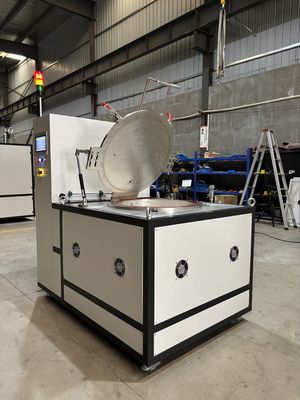

The HWF6630-10 tank vapor deposition furnace is designed for medium-temperature heat treatment of electronic products. It supports vapor phase reaction processes in nitrogen, acetylene, and hydrogen atmospheres, as well as sintering processes under protective atmospheres. Equipped with a real-time computer monitoring system, this furnace is ideal for material process testing in research environments.

Hwf6630-10 Tank-Type Gas Phase Deposition Furnace Manufactured In China 0
Technical Parameters
  • Model: HWF6630-10
  • Rated Temperature: 750°C (Maximum: 1000°C)
  • Heating Zone Dimensions: Φ660×300mm (D×H)
  • Chamber Material: SUS310S stainless steel
  • Maximum Heating Power: 16kW
  • Heating Method: Bottom + Surrounding
  • Temperature Control Points: 2 (Bottom + Side)
  • Thermocouple Type: K-type
  • Heating Element: FEC Ceramic Fiber Heater

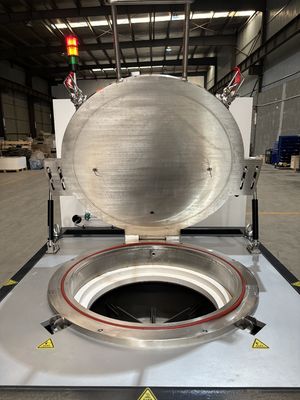

  • Door Opening Method: Top-opening design
  • Temperature Stability: ±1°C
  • Control System: Imported PID auto-tuning module
  • Program Steps: 20 steps
  • Safety Features: Over-temperature and thermocouple breakage alarms
Standard Delivery Contents
Item Specification Quantity
Furnace Unit   1
Control Cabinet   1
Temperature Control Module Yamatake or equivalent 1

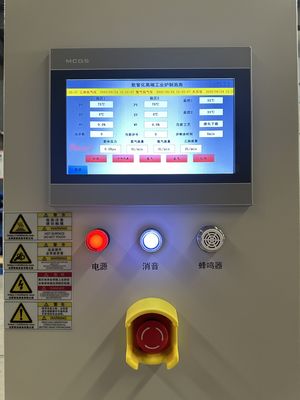

Touchscreen 10-inch 1

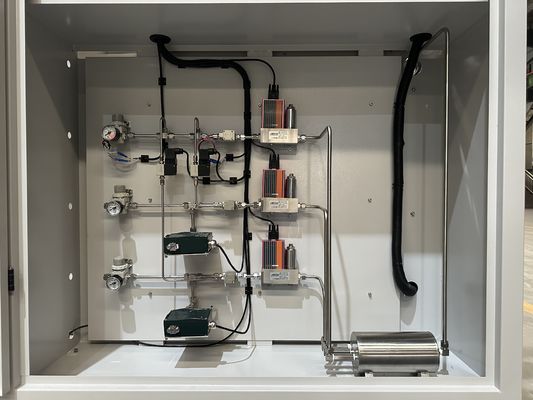

Mass Flow Meters Nitrogen 200L/min, others 50L/min 3
Certifications
Hwf6630-10 Tank-Type Gas Phase Deposition Furnace Manufactured In China 1
Packaging & Shipping
Hwf6630-10 Tank-Type Gas Phase Deposition Furnace Manufactured In China 2
Installation Requirements
  • Environment: 0-40°C, ≤80% RH, no corrosive gases
  • Floor: Level, vibration-free, >500 kg/m² load capacity
  • Power: 22 kVA, 3-phase 5-wire, 220/380 V, 50 Hz
  • Space: 1500×1500×3000mm (D×W×H) minimum
Frequently Asked Questions
What products does Chitherm offer?

We provide high-quality industrial furnaces including bell furnaces, hot air furnaces, box furnaces, tube furnaces, vacuum furnaces, and specialized kilns for various thermal processing applications.

What pre-sales services are available?

Our team offers expert consultation and customized solutions to help select the optimal equipment for your specific process requirements.

Manufacturer Information

Hefei Chitherm Equipment Co., Ltd. specializes in the R&D and manufacturing of industrial furnaces for advanced materials processing. Our product range serves industries including electronics, ceramics, powder metallurgy, and new energy applications.

Hwf6630-10 Tank-Type Gas Phase Deposition Furnace Manufactured In China 3 Hwf6630-10 Tank-Type Gas Phase Deposition Furnace Manufactured In China 4
