HRF535-02N Nitrogen Atmosphere Oven is a precision drying equipment with atmospheric protection, specifically designed for high-end manufacturing, laboratories, and scientific research fields.
The HRF535-02N Nitrogen Atmosphere Oven is not merely a heating device — it serves as a critical process partner in achieving high-quality and high-reliability manufacturing. Whether aiming to enhance existing product quality or to develop new-generation materials, it is an indispensable assistant for your operations.
HRF535-02 Type Hot Air Circulating Furnace
Product Specifications
| Attribute |
Value |
| Range of Applications |
Industrial |
| Type |
Electric Holding Furnace |
| Usage |
Ceramic Drying |
| Atmosphere |
Nitrogen |
| Effective Chamber Dimensions |
850*700*900mm(W*H*D) |
| Transport Package |
Wooden Packaging |
| Specification |
1550*1630*1050mm(W*H*D) |
| Trademark |
Chitherm |
| Origin |
China |
| HS Code |
8514101000 |
| Production Capacity |
50 Sets/Year |
Efficient Nitrogen Drying Oven for Industrial Applications
The Chitherm HRF535-02N nitrogen drying oven is designed for binder burning out (BBO) processes in oxygen-free environments, ideal for electronic components and ceramic substrates.
Technical Specifications
- Rated Temperature: 200ºC
- Maximum Temperature: 300ºC
- Effective Dimensions: 800 × 800 × 800mm (W×H×D)
- Heating Method: Customized Heater
- Process Atmosphere: Nitrogen
- Temperature Control Stability: ±1ºC with PID self-tuning
- Temperature Uniformity: ±3ºC (after 1 hour insulation at 200ºC)
- Thermocouple: Type K
- Temperature Control Points: 1
- Temperature Monitoring Points: 1
- Process Steps: 20 programmable steps
- Exhaust System: Top-mounted exhaust port
- Safety Features: Over-temperature and thermocouple failure alarms
- Power Requirements: Max 10kW heating, ≤5kW insulation
- Surface Temperature Rise: ≤35ºC
- Weight: Approximately 700kg
- Dimensions: 1550×1630×1050mm (W×H×D)
- Color: Light gray
Standard Delivery Contents
| Item |
Note |
Quantity |
| Basic Compositions |
Dryer |
1 PC |
| Certificates |
Dryer and major components |
1 Set |
| Technical Documents |
Manual and component documentation |
1 Set |
| Heating Elements |
Customized Heater |
1 Set |
| Thermocouple |
WATLOW/THERMOWAY, Type K |
1 PC |
| Temperature Controller |
|
1 Set |
| Monitor |
Touch screen |
1 Set |
| SSR |
|
1 PC |
Facility Requirements
Environmental Conditions: Temperature 0-40ºC, humidity ≤80% RH, no corrosive gas, no strong airflow disturbance.
Process Air: 99.999% purity nitrogen, pressure 0.2-0.4Mpa, consumption 5-15m³/h.
Ventilation: Non-contact access to pumping system (>15m³/h capacity).
Ground: Level surface, no vibration, >300Kg/m² bearing capacity.
Power: >14kVA, 3-phase 5-wire, 220/380V, 50Hz.
Installation Space: Minimum 2500×2100×3000mm (W×H×D), >5m² area.

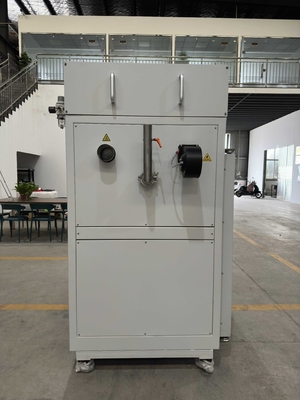

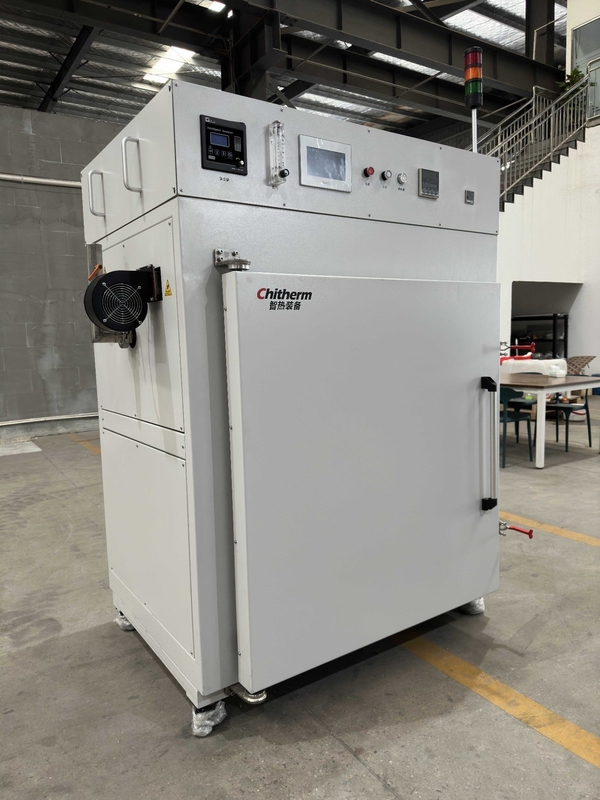

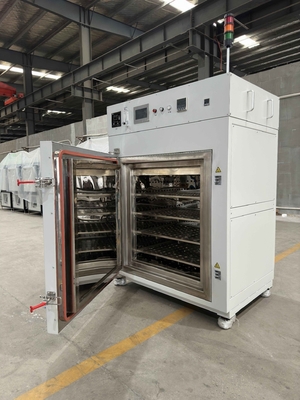

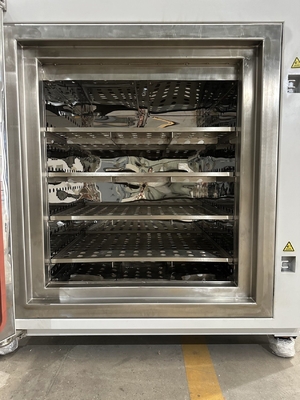

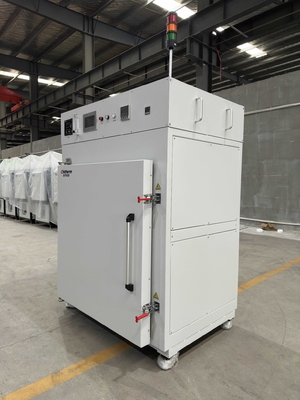

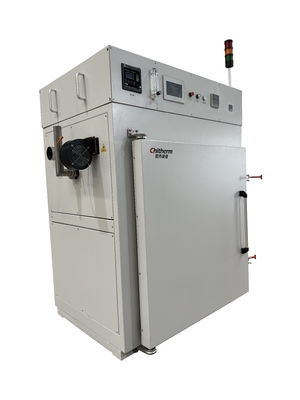

Product Images
Manufacturer Profile
Hefei Chitherm Equipment Co., Ltd. specializes in R&D, manufacturing, and sales of industrial and laboratory furnaces for advanced ceramics, electronic components, powder metallurgy, and new energy applications. Our product range includes bell furnaces, box furnaces, vacuum furnaces, and specialized thermal processing equipment.
Frequently Asked Questions
What products does Chitherm offer?
We provide high-quality bell furnaces, hot air furnaces, box furnaces, tube furnaces, vacuum furnaces, and specialized thermal processing equipment for industrial applications.
What pre-sales services does Chitherm provide?
We offer expert consultation and fully customizable solutions to meet specific process requirements.
What are Chitherm's core strengths?
As a high-tech enterprise with patented technologies, we combine R&D expertise with manufacturing excellence to deliver superior thermal processing solutions.
