Chitherm Hrf535-02 Hot Air Box Furnace

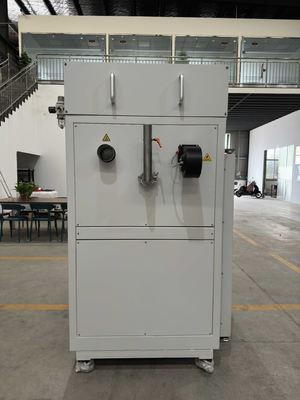

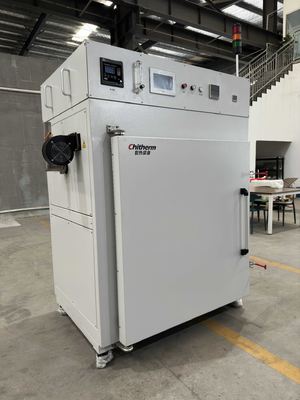

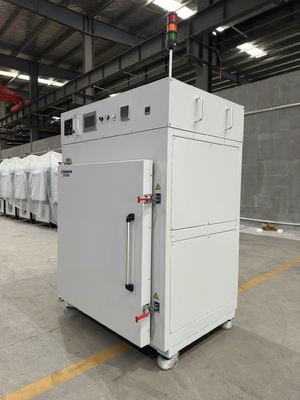

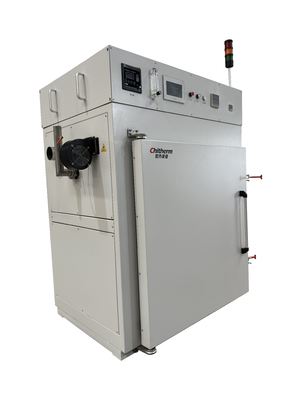

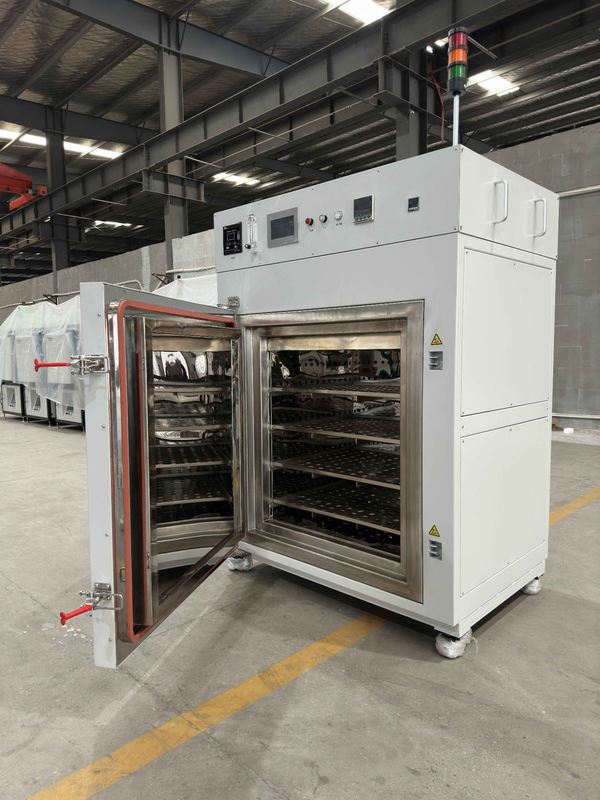

Large Image : Chitherm Hrf535-02 Hot Air Box Furnace

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	HRF535-02N

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now Chat Now

Chitherm Hrf535-02 Hot Air Box Furnace

Description

Range Of Applications:	Industrial	Type:	Electric Holding Furnace
Usage:	Ceramic Drying	Atmosphere:	Nitrogen
Effective Chamber Dimensions:	850700900mm(WHD)	Transport Package:	Wooden Packaging
Specification:	155016301050mm(WHD)	Trademark:	Chitherm
Origin:	China	HS Code:	8514101000
Production Capacity:	50 Sets/Year

Chitherm Hrf535-02 Hot Air Box Furnace

Product Specifications

Attribute	Value
Range of Applications	Industrial
Type	Electric Holding Furnace
Usage	Ceramic Drying
Atmosphere	Nitrogen
Effective Chamber Dimensions	850700900mm(WHD)
Transport Package	Wooden Packaging
Specification	155016301050mm(WHD)
Trademark	Chitherm
Origin	China
HS Code	8514101000
Production Capacity	50 Sets/Year

Manufacturer Profile

Hefei Chitherm Equipment Co., Ltd. specializes in the research, development, and manufacturing of industrial furnaces for various thermal processes. Our product range includes bell furnaces, box furnaces, vacuum furnaces, and specialized solutions for advanced ceramics, electronic components, powder metallurgy, and new energy applications.

Key Features & Technical Specifications

Primary Applications

Designed for binder burning out (BBO) under oxygen-free processes for electronic components and ceramic substrates.

Technical Parameters

Rated Temperature: 200ºC
Maximum Temperature: 300ºC

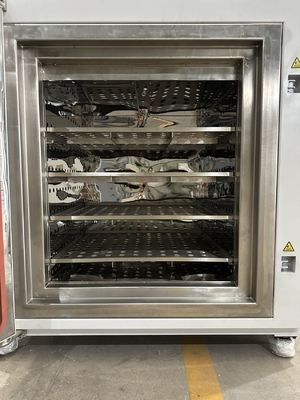

Effective Working Dimensions: 800 × 800 × 800mm (W×H×D)
Customized Heating System
Process Atmosphere: Nitrogen
Precision Temperature Control: ±1ºC with PID self-tuning
Temperature Uniformity: ±3ºC (after 1 hour stabilization at 200ºC)
Type K Thermocouple
20 Programmable Process Steps
Top-mounted Exhaust Port
Comprehensive Safety Alarm System
Maximum Power: 10kW
Insulation Power: ≤ 5kW
Surface Temperature Rise: ≤ 35ºC
Approximate Weight: 700kg
Furnace Dimensions: 1550×1630×1050mm (W×H×D)
Light Gray Exterior Finish

Standard Delivery Contents

Item	Description	Quantity
Basic Compositions	Dryer Unit	1 PC
Certificates	Inspection Documentation	1 Set
Technical Documents	Operation Manual & Technical Specifications	1 Set
Heating Elements	Customized Heater Assembly	1 Set
Thermocouple	WATLOW/THERMOWAY Type K	1 PC
Control System	Temperature Controller & Touch Screen	1 Set
Spare Parts	SSR (Solid State Relay)	1 PC

Installation Requirements

Environment: 0-40ºC, ≤80% RH, corrosion-free atmosphere
Process Gas: 99.999% Nitrogen (0.2-0.4Mpa, 5-15m³/h)
Ventilation: Minimum 15m³/h extraction capacity
Foundation: Level surface with >300Kg/m² load capacity
Power Supply: ≥14kVA, 3-phase 220/380V 50Hz
Installation Space: Minimum 2500×2100×3000mm (W×H×D)
