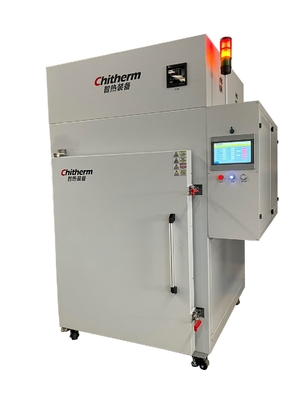

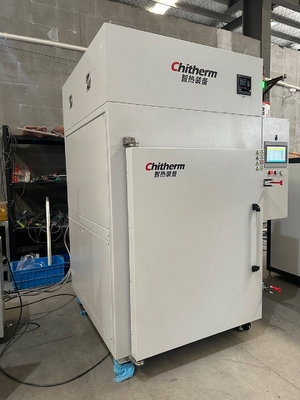

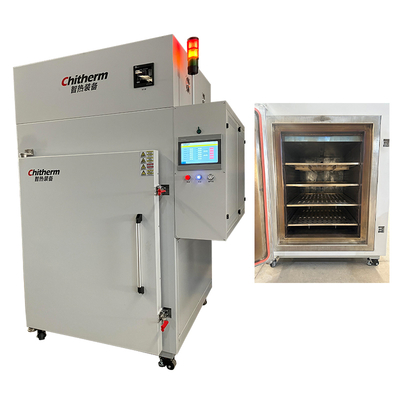

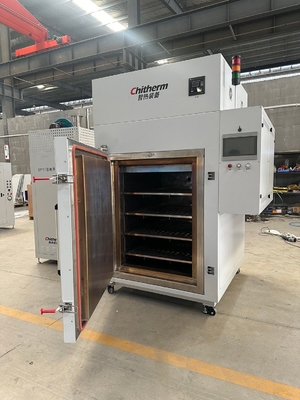

ISO Certification And Effective Chamber Dimensions Of 800*1000*1000mm For 1200kg Light Gray Hot Air Drying Oven

Nitrogen Atmosphere Hot Air Drying Furnace Hrf800-06no for Industrial Range of Applications and Performance

Application Field:
Widely used for debinding processes of ceramic substrates and related materials.

• 1.1 Rated Temperature: 550ºC
• 1.2 Maximum Temperature: 600ºC

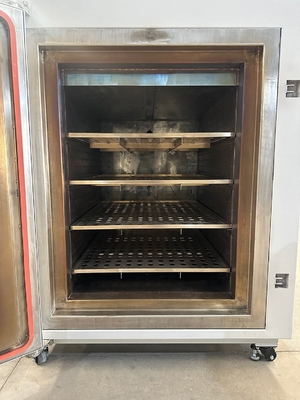

• 1.3 Chamber Dimensions: 800*1000*1000mm (W*H*D)
• 1.4 Chamber Load Capacity: 300kg
• 1.5 Chamber Material: SUS316L
• 1.6 Heating Elements: Customized Squirrel-Cage Heaters
• 1.7 Temperature Stability: ±1ºC
• 1.8 Temperature Uniformity: ±3ºC (Tested at 550ºC plateau, 1h stabilization under no-load conditions)
• 1.9 Thermocouple Type: Type K
• 1.10 Working Atmosphere: Air/Nitrogen
• 1.11 Program Steps: 40
• 1.12 Temperature Control Points: 1
• 1.13 Monitoring Points: 1
• 1.14 Real-Time Monitoring Points: 5 (for actual chamber temperature tracking)
• 1.15 Alarm Protections: Audible/visual alarms for over-temperature and thermocouple failure
• 1.16 Surface Temperature Rise: <35ºC
• 1.17 Maximum Heating Power: 24kW
• 1.18 Heat Preservation Power: ≤12kW
• 1.19 Overall Dimensions (Reference): 1500mm*1630mm*1350mm (W*H*D), excluding fan and chimney (final dimensions subject to product)
• 1.20 Equipment Weight: Approx. 1200kg
• 1.21 Equipment Color: Light Gray

• 3.1 Environmental Conditions: Temperature 0-40ºC, Humidity ≤80% RH, non-corrosive gases, no strong airflow disturbance
• 3.2 Gas Source Requirements: Clean, dry, oil-free compressed air or high-purity nitrogen gas (purity 99.999%), inlet pressure 0.2-0.4 MPa, gas consumption 10-30 m³/h
• 3.3 Exhaust System: Non-contact interface with user exhaust system, exhaust capacity >30 m³/h
• 3.4 Floor Requirements: Level, free from significant vibrations, load-bearing capacity >600 kg/m²
• 3.5 Power Supply: Capacity >40 kVA, 3-phase 5-wire system (voltage 220/380V, frequency 50Hz). Phase lines: Yellow, Green, Red; Neutral line: Blue; Ground line: Yellow-Green
• 3.6 Installation Space: 2000mm*2600mm*3000mm (W*D*H), installation area exceeding 6 m²
