Customizable Hot Air Debinding Furnace Industrial Drying And Debinding Hot Air Drying Oven

Large Image : Customizable Hot Air Debinding Furnace Industrial Drying And Debinding Hot Air Drying Oven

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	Hrf800-06NO

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now

Customizable Hot Air Debinding Furnace Industrial Drying And Debinding Hot Air Drying Oven

Description

Range Of Applications:	Industrial	Type:	Electric Holding Furnace
Fuel:	Electric	Atmosphere:	Nitrogen
Effective Chamber Dimensions:	80010001000mm(WHD)	Transport Package:	Wooden Packaging
Specification:	150016301350mm(WHD)	Trademark:	Chitherm
Origin:	China	HS Code:	8514101000
Supply Ability:	50 Sets/Year	Customization:	Available
Certification:	ISO	Place Style:	Vertical
Highlight:	Hot Air Debinding Furnace , Customizable Hot Air Debinding Furnace , Industrial Debinding Furnace

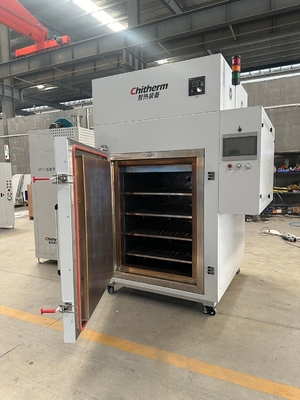

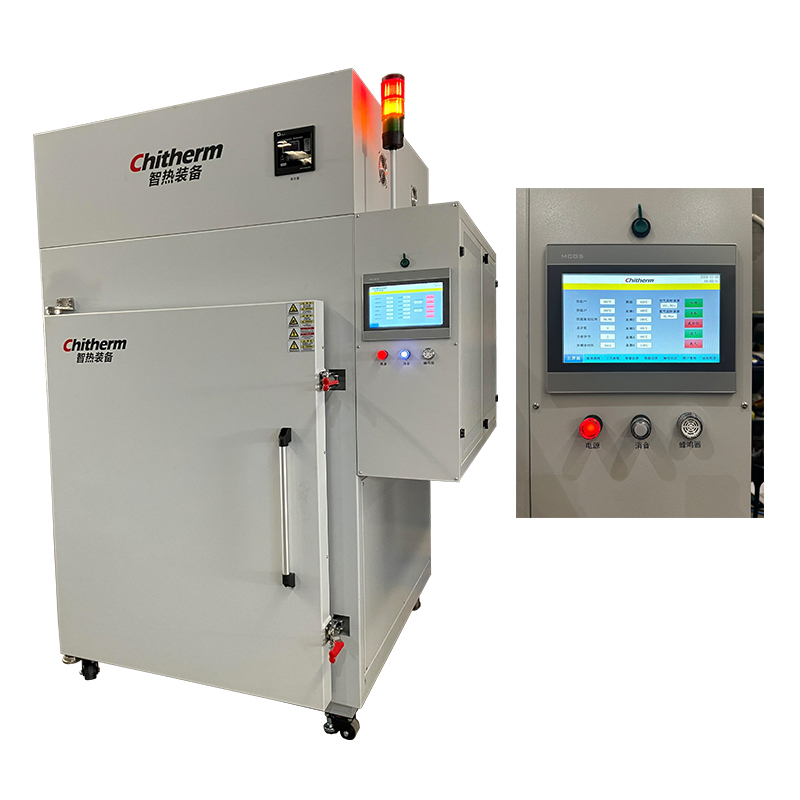

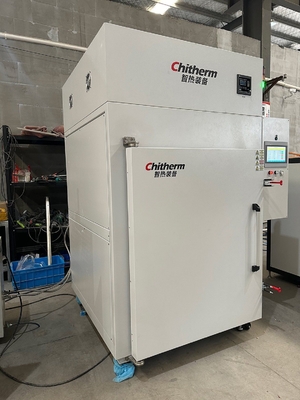

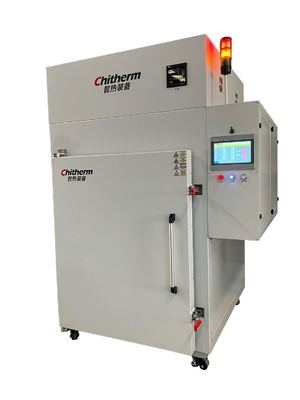

HRF800-06NO Hot Air Debinding Furnace

Industrial-grade electric holding furnace designed for drying, curing, and debinding processes with nitrogen atmosphere capability.

Key Specifications

Attribute	Value
Range of Applications	Industrial
Type	Electric Holding Furnace
Fuel	Electric
Atmosphere	Nitrogen
Effective Chamber Dimensions	80010001000mm (WHD)
Specification	150016301350mm (WHD)
Certification	ISO
Supply Ability	50 Sets/Year

Application Field

Widely used for debinding processes of ceramic substrates and related materials in industrial manufacturing environments.

Technical Specifications

Temperature Range: Rated 550°C, Maximum 600°C
Chamber Capacity: 300kg load capacity
Chamber Material: SUS316L construction
Heating Elements: Customized squirrel-cage heaters
Temperature Control: ±1°C stability, ±3°C uniformity
Power Requirements: 24kW maximum, ≤12kW heat preservation
Dimensions: 1500×1630×1350mm (W×H×D)
Weight: Approximately 1200kg

Equipment Delivery Checklist

Component	Details	Quantity
Furnace Main Unit	Complete assembly	1 set
Electric Purification Furnace	Max. capacity 50m³	1 set

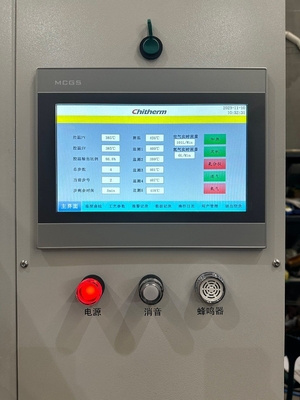

Critical Components	Includes heaters, thermocouples, PLC, UPS, touch screen	Various
Spare Parts	Solid state relay, heater	1 pc each

Operating Conditions

Environment: 0-40°C, ≤80% RH, non-corrosive
Gas Requirements: 99.999% pure nitrogen at 0.2-0.4 MPa
Power Supply: >40 kVA, 3-phase 5-wire (220/380V, 50Hz)
Installation Space: Minimum 2000×2600×3000mm (W×D×H)

Manufacturer Profile

Hefei Chitherm Equipment Co., Ltd. specializes in the R&D, manufacturing, and service of industrial furnaces for advanced ceramics, electronic components, powder metallurgy, and new energy applications. Our product range includes bell furnaces, box furnaces, vacuum furnaces, and specialized solutions for thermal treatment processes.
