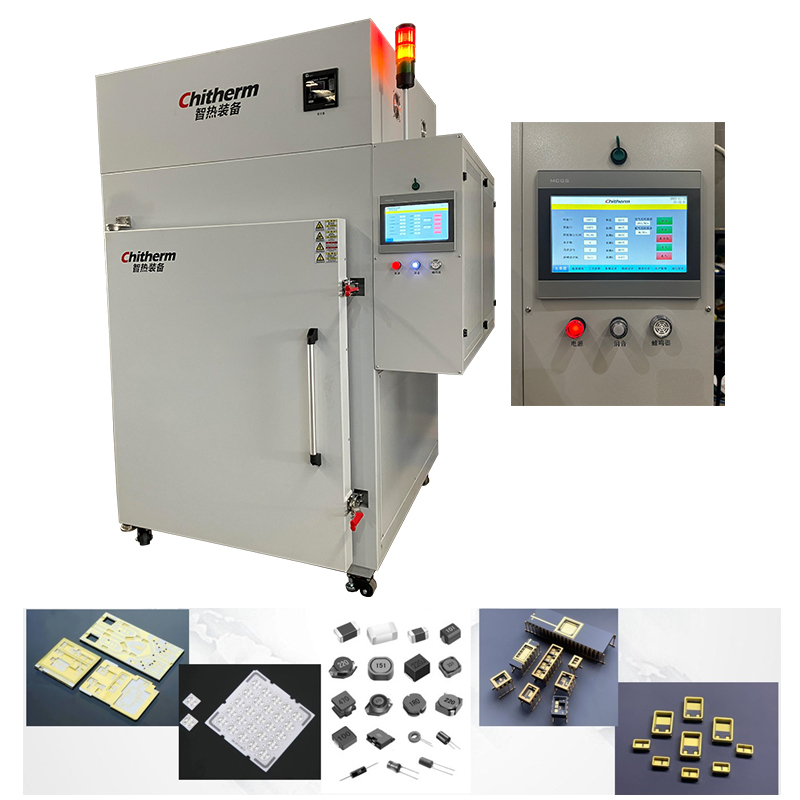

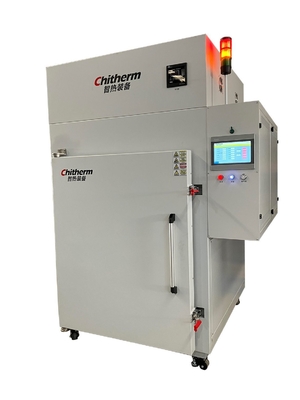

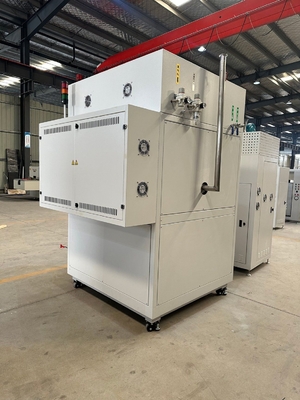

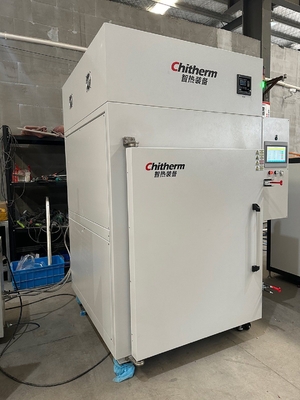

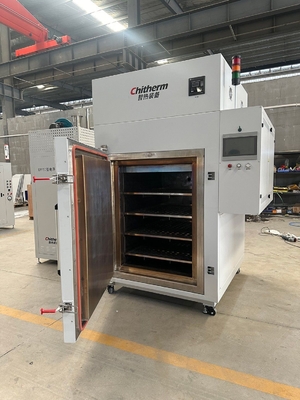

ISO Chitherm Hot Air Drying Oven 550°C Hot Air Drying Furnace

Large Image : ISO Chitherm Hot Air Drying Oven 550°C Hot Air Drying Furnace

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	Hrf800-06NO

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now

ISO Chitherm Hot Air Drying Oven 550°C Hot Air Drying Furnace

Description

Range Of Applications:	Industrial	Type:	Electric Holding Furnace
Fuel:	Electric	Atmosphere:	Nitrogen
Effective Chamber Dimensions:	80010001000mm(WHD)	Transport Package:	Wooden Packaging
Specification:	150016301350mm(WHD)	Trademark:	Chitherm
Origin:	China	HS Code:	8514101000
Supply Ability:	50 Sets/Year	Customization:	Available
Certification:	ISO	Place Style:	Vertical
Highlight:	Chitherm Hot Air Drying Oven , ISO Hot Air Drying Oven , 550°C Hot Air Drying Oven

Chitherm HRF800-06NO Hot Air Drying Furnace

Product Specifications

Attribute	Value
Range of Applications	Industrial
Type	Electric Holding Furnace
Fuel	Electric
Atmosphere	Nitrogen
Effective Chamber Dimensions	80010001000mm (WHD)
Transport Package	Wooden Packaging
Specification	150016301350mm (WHD)
Trademark	Chitherm
Origin	China
HS Code	8514101000
Supply Ability	50 Sets/Year
Customization	Available
Certification	ISO
Place Style	Vertical

Product Description

Nitrogen Atmosphere Hot Air Drying Furnace HRF800-06NO designed for industrial applications with superior performance in debinding processes of ceramic substrates and related materials.

Technical Specifications

Rated Temperature: 550°C
Maximum Temperature: 600°C

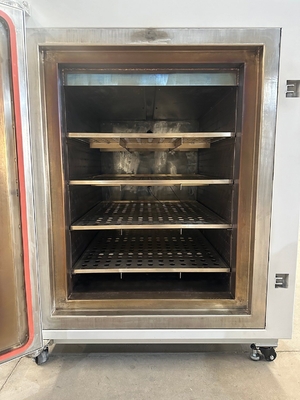

Chamber Dimensions: 800*1000*1000mm (W*H*D)
Chamber Load Capacity: 300kg
Chamber Material: SUS316L
Heating Elements: Customized Squirrel-Cage Heaters
Temperature Stability: ±1°C
Temperature Uniformity: ±3°C
Thermocouple Type: Type K
Working Atmosphere: Air/Nitrogen
Program Steps: 40
Maximum Heating Power: 24kW
Equipment Weight: Approx. 1200kg

Equipment Delivery Checklist

Name	Key Contents	Quantity
Basic Components	Furnace Main Unit	1 set
Electric Purification Furnace	Max. capacity 50m³	1 set
Critical Components	Heater (Squirrel-Cage Type)	1 set

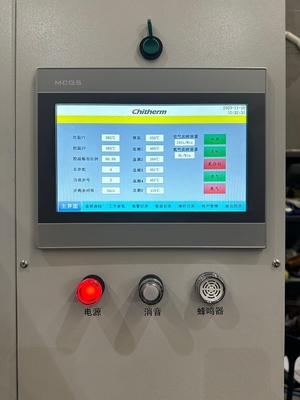

Temperature Control Module	Japan-sourced	1 set
PLC	Siemens	1 set
Spare Parts	Solid State Relay	1 pc

Operating Conditions

Environmental Conditions: Temperature 0-40°C, Humidity ≤80% RH
Gas Source Requirements: High-purity nitrogen gas (99.999%)
Power Supply: 3-phase 5-wire system (220/380V, 50Hz)
Installation Space: 2000*2600*3000mm (W*D*H)

About Chitherm

Hefei Chitherm Equipment Co., Ltd. specializes in the R&D, design, manufacturing, and service of high-quality industrial furnaces including bell furnaces, box furnaces, hot air furnaces, vacuum furnaces, and tube furnaces. Our products are widely used in advanced ceramics, electronic components, powder metallurgy, new energy, and photovoltaics industries.

Chitherm 1000°C Muffle Furnace for LTCC Ceramic Sintering

Frequently Asked Questions

What products does Chitherm offer?

We provide high-quality bell furnaces, hot air furnaces, box furnaces, tube furnaces, vacuum furnaces, car bottom furnaces, rotary kilns, mesh belt furnaces, and pusher furnaces.

What pre-sales services does Chitherm provide?

We offer consultation services and highly customizable solutions to meet specific requirements.

What are Chitherm's core strengths?

As a high-tech enterprise with patented technologies, we deliver superior furnace solutions through integrated R&D, manufacturing, and sales capabilities.
