550°C ISO Certification Hot Air Drying Oven Vertical Hot Air Debinding Furnace

Large Image : 550°C ISO Certification Hot Air Drying Oven Vertical Hot Air Debinding Furnace

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	Hrf800-06NO

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now

550°C ISO Certification Hot Air Drying Oven Vertical Hot Air Debinding Furnace

Description

Range Of Applications:	Industrial	Type:	Electric Holding Furnace
Fuel:	Electric	Atmosphere:	Nitrogen
Effective Chamber Dimensions:	80010001000mm(WHD)	Transport Package:	Wooden Packaging
Specification:	150016301350mm(WHD)	Trademark:	Chitherm
Origin:	China	HS Code:	8514101000
Supply Ability:	50 Sets/Year	Customization:	Available
Certification:	ISO	Place Style:	Vertical
Highlight:	550°C Hot Air Debinding Furnace , Vertical Hot Air Debinding Furnace , ISO Certification Hot Air Drying Oven

550°C ISO Certification Hot Air Drying Oven Vertical Hot Air Debinding Furnace

Product Attributes

Attribute	Value
Range of Applications	Industrial
Type	Electric Holding Furnace
Fuel	Electric
Atmosphere	Nitrogen
Effective Chamber Dimensions	80010001000mm(WHD)
Transport Package	Wooden Packaging
Specification	150016301350mm(WHD)
Trademark	Chitherm
Origin	China
HS Code	8514101000
Supply Ability	50 Sets/Year
Customization	Available
Certification	ISO
Place Style	Vertical

Product Description

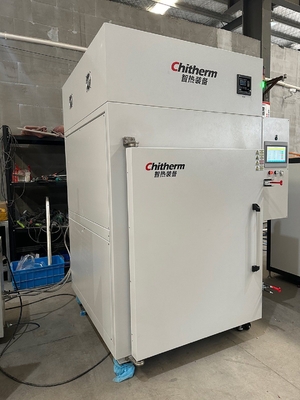

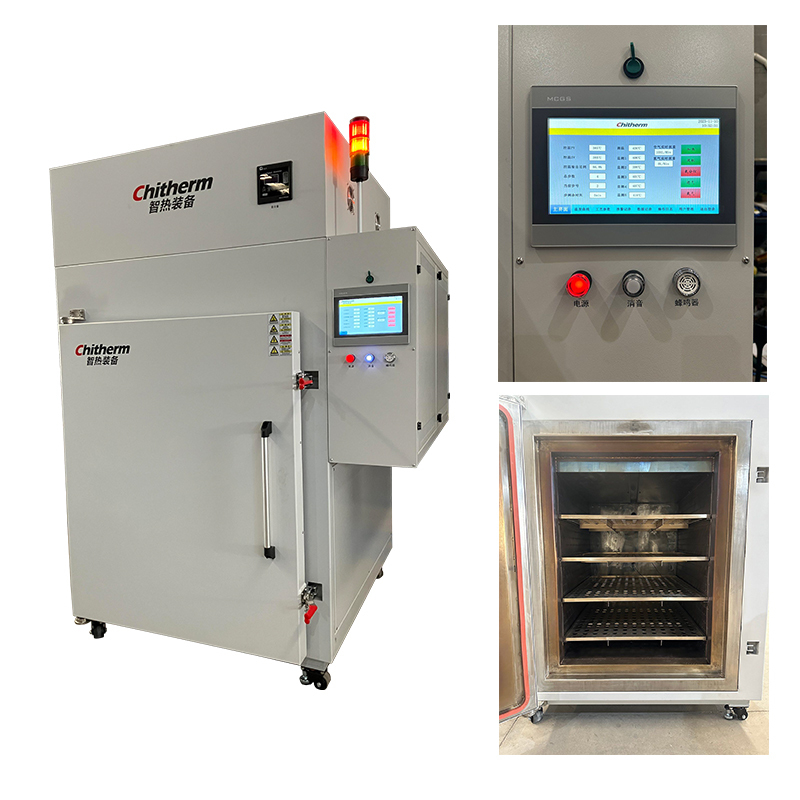

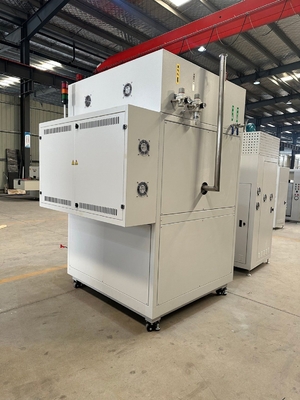

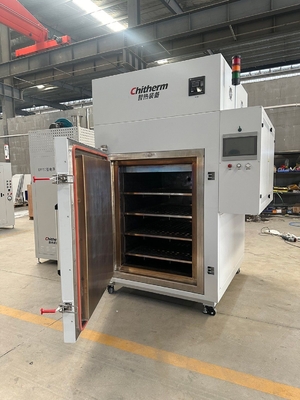

Nitrogen Atmosphere Hot Air Drying Furnace HRF800-06NO for Industrial Range of Applications and Performance

Application Field

Widely used for debinding processes of ceramic substrates and related materials.

Technical Specifications & Basic Configuration

1.1 Rated Temperature: 550ºC
1.2 Maximum Temperature: 600ºC

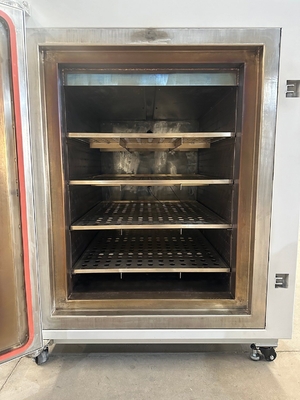

1.3 Chamber Dimensions: 800*1000*1000mm (W*H*D)
1.4 Chamber Load Capacity: 300kg
1.5 Chamber Material: SUS316L
1.6 Heating Elements: Customized Squirrel-Cage Heaters
1.7 Temperature Stability: ±1ºC
1.8 Temperature Uniformity: ±3ºC (Tested at 550ºC plateau, 1h stabilization under no-load conditions)
1.9 Thermocouple Type: Type K
1.10 Working Atmosphere: Air/Nitrogen
1.11 Program Steps: 40
1.12 Temperature Control Points: 1
1.13 Monitoring Points: 1
1.14 Real-Time Monitoring Points: 5 (for actual chamber temperature tracking)
1.15 Alarm Protections: Audible/visual alarms for over-temperature and thermocouple failure
1.16 Surface Temperature Rise: <35ºC
1.17 Maximum Heating Power: 24kW
1.18 Heat Preservation Power: ≤12kW
1.19 Overall Dimensions (Reference): 1500mm*1630mm*1350mm (W*H*D), excluding fan and chimney (final dimensions subject to product)
1.20 Equipment Weight: Approx. 1200kg
1.21 Equipment Color: Light Gray

Equipment Delivery Checklist

Name	Key Contents	Qty
Basic Components
Furnace Main Unit		1 set
Electric Purification Furnace	Max. capacity 50m³	1 set
Inspection Certificate	Certificates of major purchased components	1 set
Technical Documentation	Manuals, technical files for purchased parts	1 set
Critical Components
Heater	Squirrel-Cage Type	1 set
Control Thermocouple	Type K	1 pc
Measurement Thermocouple	Type K	1 pc
Monitoring Thermocouples	Type K	5 pcs
Temperature Control Module	Japan-sourced	1 set
PLC	Siemens	1 set
UPS	1kVA	1 set

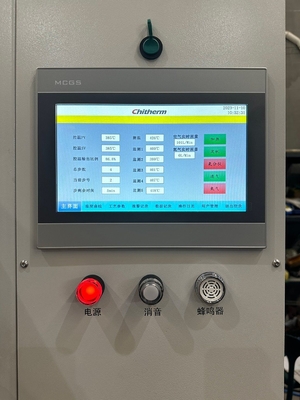

Touch Screen	10-inch	1 set
Oxygen Analyzer	CI-PC96	1 set
Circulation Fan	Max. airflow 5000m³/h	1 set
Chiller Unit	0.5m³/h	1 set
Spare Parts
Solid State Relay		1 pc
Heater		1 pc

Equipment Operating Conditions

3.1 Environmental Conditions: Temperature 0-40ºC, Humidity ≤80% RH, non-corrosive gases, no strong airflow disturbance.

3.2 Gas Source Requirements: Clean, dry, oil-free compressed air or high-purity nitrogen gas (purity 99.999%), inlet pressure 0.2-0.4 MPa, gas consumption 10-30 m³/h.

3.3 Exhaust System: Non-contact interface with user exhaust system, exhaust capacity >30 m³/h.

3.4 Floor Requirements: Level, free from significant vibrations, load-bearing capacity >600 kg/m².

3.5 Power Supply: Capacity >40 kVA, 3-phase 5-wire system (voltage 220/380V, frequency 50Hz). Phase lines: Yellow, Green, Red; Neutral line: Blue; Ground line: Yellow-Green.

3.6 Installation Space: 2000mm*2600mm*3000mm (W*D*H), installation area exceeding 6 m².
