Industrial-Grade Sealing Hot Air Drying Oven for Protective Atmosphere and Energy-Saving Design

Industrial-Grade Sealing Hot Air Drying Oven for Protective Atmosphere and Energy-Saving Design
Industrial-Grade Sealing Hot Air Drying Oven for Protective Atmosphere and Energy-Saving Design Industrial-Grade Sealing Hot Air Drying Oven for Protective Atmosphere and Energy-Saving Design Industrial-Grade Sealing Hot Air Drying Oven for Protective Atmosphere and Energy-Saving Design Industrial-Grade Sealing Hot Air Drying Oven for Protective Atmosphere and Energy-Saving Design Industrial-Grade Sealing Hot Air Drying Oven for Protective Atmosphere and Energy-Saving Design Industrial-Grade Sealing Hot Air Drying Oven for Protective Atmosphere and Energy-Saving Design Industrial-Grade Sealing Hot Air Drying Oven for Protective Atmosphere and Energy-Saving Design Industrial-Grade Sealing Hot Air Drying Oven for Protective Atmosphere and Energy-Saving Design Industrial-Grade Sealing Hot Air Drying Oven for Protective Atmosphere and Energy-Saving Design

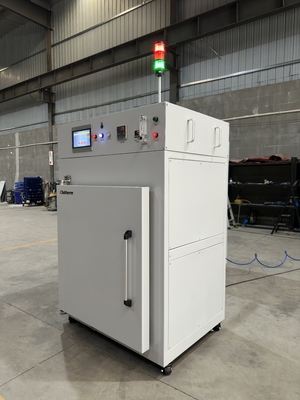

Large Image :  Industrial-Grade Sealing Hot Air Drying Oven for Protective Atmosphere and Energy-Saving Design

Product Details:
Place of Origin: China
Brand Name: Chitherm
Model Number: HRF535-02Type
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Packaging
Delivery Time: 90 work days
Payment Terms: L/C,T/T
Supply Ability: 50 Sets/Year
Contact Now Chat Now

Industrial-Grade Sealing Hot Air Drying Oven for Protective Atmosphere and Energy-Saving Design

Description
Model NO.: HRF535-02 Type Range Of Applications: Industrial
Type: Electric Holding Furnace Usage: Ceramic Drying
Fuel: Electric Atmosphere: Nitrogen
Effective Chamber Dimensions: 850*700*900mm(W*H*D) Rated Temperature: Rt+10~200ºC
Heating Elements: Custom-Made Squirrel-Cage Heaters Control Points: 1 Point
Transport Package: Wooden Packaging Specification: 1250*1870*1076mm(W*H*D)
Trademark: Chitherm Origin: China
HS Code: 8514101000 Supply Ability: 50 Sets/Year
Package Size: 1600.00cm * 1550.00cm * 2250.00cm Package Gross Weight: 709.000kg
Customization: Available Certification: ISO
Place Style: Vertical Shipping Cost: Contact The Supplier About Freight And Estimated Delivery Time.
 : Support Payments In USD Secure Payments: Every Payment You Make On Made-in-China.com Is Protected By The Platform.
Refund Policy: Claim A Refund If Your Order Doesn't Ship, Is Missing, Or Arrives With Product Issues.

Industrial-Grade Sealing Hot Air Drying Oven for Protective Atmosphere and Energy-Saving Design
Product Specifications
Attribute Value
Model NO. HRF535-02 Type
Range of Applications Industrial
Type Electric Holding Furnace
Usage Ceramic Drying
Fuel Electric
Atmosphere Nitrogen
Effective Chamber Dimensions 850*700*900mm(W*H*D)
Rated Temperature Rt+10~200°C
Heating Elements Custom-Made Squirrel-Cage Heaters
Control Points 1 Point
Transport Package Wooden Packaging
Specification 1250*1870*1076mm(W*H*D)
Trademark Chitherm
Origin China
HS Code 8514101000
Supply Ability 50 Sets/Year
Package Size 1600.00cm * 1550.00cm * 2250.00cm
Package Gross Weight 709.000kg
Customization Available
Certification ISO
Place Style Vertical
Shipping Cost Contact the supplier about freight and estimated delivery time.
Payment Options Support payments in USD
Secure payments Every payment you make on Made-in-China.com is protected by the platform.
Refund policy Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Product Description
Industrial-Grade Sealing Hot Air Drying Oven for Protective Atmosphere and Energy-Saving Design 0
I. Key Parameter Highlights
Temperature Control Performance
  • High Precision Control: ±1°C stability (industry-leading level)
  • Uniformity Guarantee: ±3°C uniformity (150°C empty furnace test)
  • Wide Range Adjustment: RT+10～200°C (covers typical electronic ceramic process requirements)
Structural Design
  • Large Chamber Volume: 0.535m³ effective space (850×700×900mm)

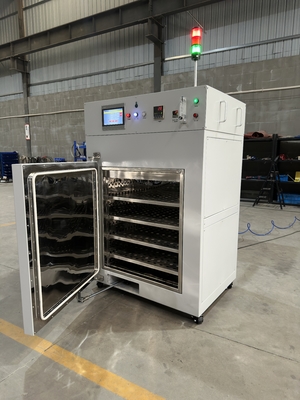

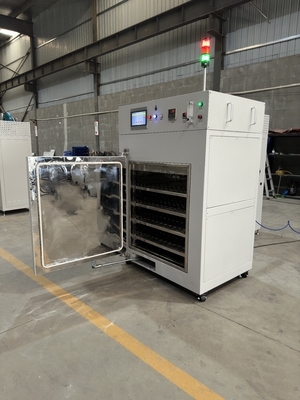

  • Multi-Layer Loading System: 4 layers of SUS304 stainless steel trays (load capacity >500kg/m²)
  • Industrial-Grade Sealing: Supports nitrogen/compressed air protective atmosphere (adjustable flow rate: 24-240LPM)
II. Key System Configurations
Heating System
  • Custom Squirrel-Cage Heater: 10kW peak power
  • Empty Furnace Heat Retention: ≤5kW (energy-saving design)
  • Surface Temperature Rise: <35°C (complies with industrial safety standards)
Intelligent Control System
  • Imported Japanese PID Temperature Controller
  • 400 Program Segments Storage: 20 programs × 20 segments
  • Triple Safety Protection: Over-temperature/Thermocouple Break/Overload Alarms
III. Typical Application Scenarios
Electronic Ceramic Manufacturing
  • Suitable for debinding of MLCC, LTCC, and other components
  • Drying and curing of precision substrates
  • Heat treatment of electronic pastes
Special Process Support
  • Inert Atmosphere Processing (requires nitrogen source)
  • Organic Carrier Removal (requires exhaust gas treatment connection)
IV. Installation Requirements
Infrastructure
  • Power: 14kVA three-phase power supply (380V±10%)
  • Gas Source: 0.2-0.4MPa clean compressed air
  • Exhaust: >15m³/h extraction capacity
Space Requirements
  • Minimum Installation Area: 3m²
  • Recommended Operating Space: 2×4×3m (W×D×H)
  • Floor Load Capacity: >500kg/m²
V. Selection Recommendations
Recommended Use Cases
  • Small to medium batch electronic ceramic production
  • R&D projects requiring programmable temperature control
  • Special material processing with atmosphere requirements
Upgrade Considerations
  • Multi-Zone Temperature Control (currently single-point control)
  • Higher Temperature Requirements (current upper limit: 200°C)
  • Automated Loading/Unloading System Integration
3. Delivery List
Item Note QTY
Basic Compositions
Dryer 1 PC
Certificates of Inspection Dryer and major purchased components 1 Set

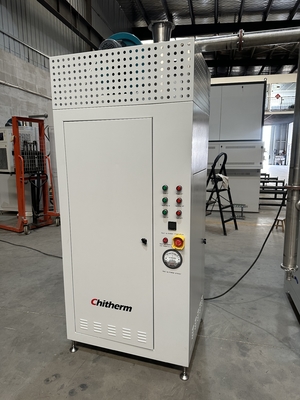

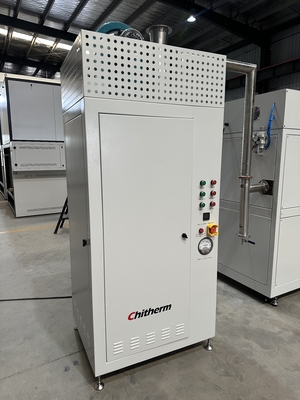

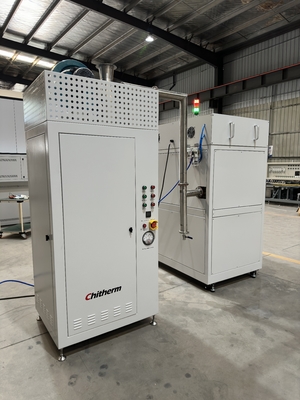

Waste Gas Incinerator 1 PC
Technical Documents Manual instructions, technical documents of major purchased components, etc 1 Set
Key Parts
Heating Elements Customized Heater 1 Set
Thermocouple WATLOW/THERMOWAY, Type K 1 PC
Temperature Controller 1 Set
Monitor Touch screen 1 Set
Spares
SSR 1 PC
Product Images

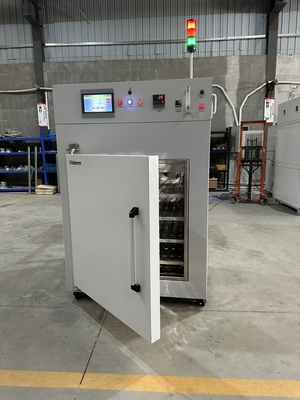

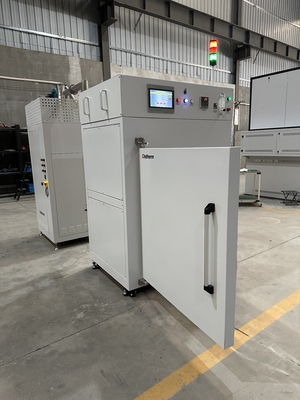

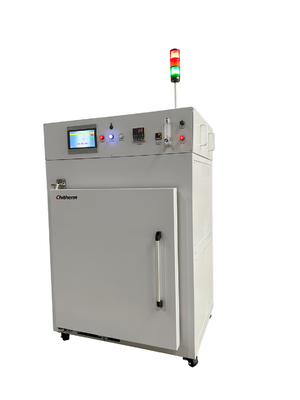

Industrial-Grade Sealing Hot Air Drying Oven for Protective Atmosphere and Energy-Saving Design 1 Industrial-Grade Sealing Hot Air Drying Oven for Protective Atmosphere and Energy-Saving Design 2 Industrial-Grade Sealing Hot Air Drying Oven for Protective Atmosphere and Energy-Saving Design 3 Industrial-Grade Sealing Hot Air Drying Oven for Protective Atmosphere and Energy-Saving Design 4 Industrial-Grade Sealing Hot Air Drying Oven for Protective Atmosphere and Energy-Saving Design 5
