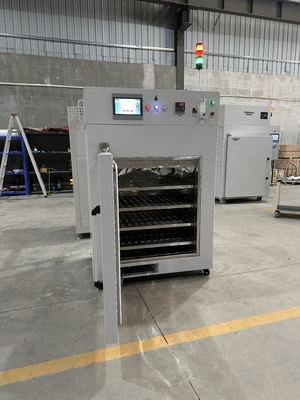

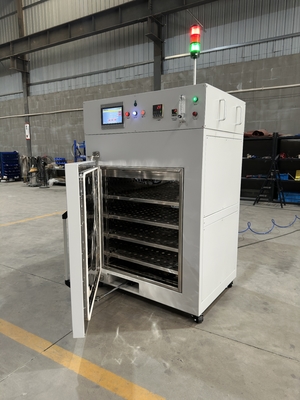

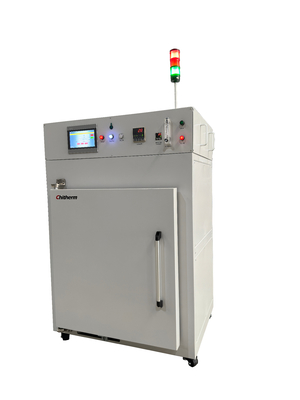

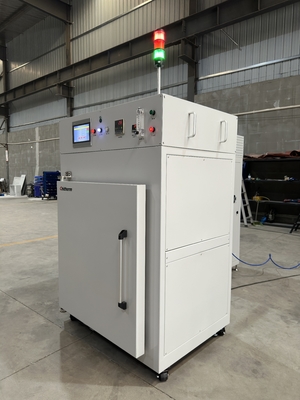

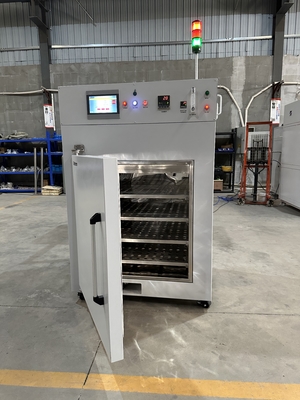

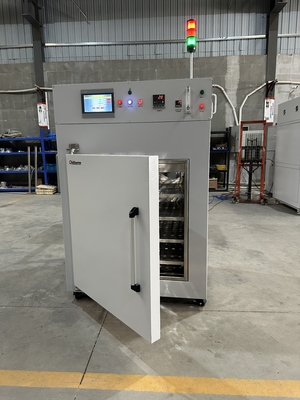

Nitrogen Atmosphere Hot Air Drying Oven Precision Temperature Control Safety Protection Hot Air Drying Oven

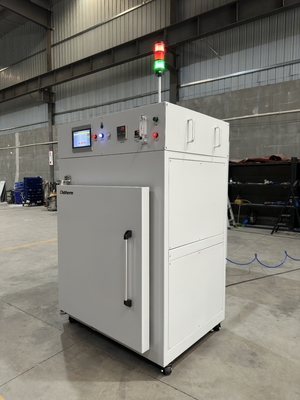

Large Image : Nitrogen Atmosphere Hot Air Drying Oven Precision Temperature Control Safety Protection Hot Air Drying Oven

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	HRF535-02 Type

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Delivery Time:	90 work days
Payment Terms:	L/C,T/T

Contact Now Chat Now

Nitrogen Atmosphere Hot Air Drying Oven Precision Temperature Control Safety Protection Hot Air Drying Oven

Description

Model NO.:	HRF535-02 Type	Range Of Applications:	Industrial
Type:	Electric Holding Furnace	Usage:	Ceramic Drying
Fuel:	Electric	Atmosphere:	Nitrogen
Effective Chamber Dimensions:	850700900mm(WHD)	Rated Temperature:	Rt+10~200ºC
Heating Elements:	Custom-Made Squirrel-Cage Heaters	Control Points:	1 Point
Transport Package:	Wooden Packaging	Specification:	125018701076mm(WHD)
Trademark:	Chitherm	Origin:	China
HS Code:	8514101000	Supply Ability:	50 Sets/Year
Package Size:	1600.00cm * 1550.00cm * 2250.00cm	Package Gross Weight:	709.000kg
Customization:	Available	Certification:	ISO
Place Style:	Vertical	Shipping Cost:	Contact The Supplier About Freight And Estimated Delivery Time.
:	Support Payments In USD	Secure Payments:	Every Payment You Make On Made-in-China.com Is Protected By The Platform.
Refund Policy:	Claim A Refund If Your Order Doesn't Ship, Is Missing, Or Arrives With Product Issues.
Highlight:	Nitrogen Atmosphere Hot Air Drying Oven , Temperature Control Hot Air Drying Oven , Safety Protection Hot Air Drying Oven

Nitrogen Atmosphere Hot Air Drying Oven with Precision Temperature Control

Product Specifications

Model NO.	HRF535-02 Type
Range of Applications	Industrial
Type	Electric Holding Furnace
Usage	Ceramic Drying
Atmosphere	Nitrogen
Effective Chamber Dimensions	850×700×900mm (W×H×D)
Rated Temperature	Rt+10~200°C
Heating Elements	Custom-Made Squirrel-Cage Heaters
Certification	ISO

Core Performance Features

Precision Temperature Control: ±1°C accuracy with Japanese PID controllers and K-type thermocouples
Multi-segment Program Control: 20 programs × 20 segments for complex process requirements
Efficient Hot Air Circulation: ±3°C temperature uniformity with SUS304 stainless steel chamber
Safety Protection: Triple alarm system (overtemperature/thermocouple breakage/overload)
Nitrogen Protection: Optional 240LPM flow rate prevents material oxidation

Technical Specifications

Control Points	1 Point
Package Size	1600×1550×2250cm
Gross Weight	709kg
Supply Ability	50 Sets/Year
Customization	Available

Typical Application Parameters

Process Type	Temperature	Heating Rate	Holding Time	Gas Flow
Electronic Ceramic Binder Burnout	150±3°C	2°C/min	4-6h	Nitrogen 60LPM
Dielectric Paste Drying	80±1°C	5°C/min	2h	Compressed Air 30LPM

Delivery Contents

Item	Note	QTY
Dryer	Basic Unit	1 PC
Certificates of Inspection	Dryer and major components	1 Set

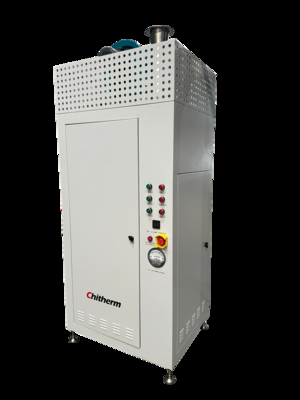

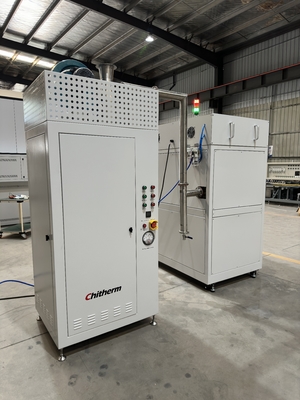

Waste Gas Incinerator		1 PC
Technical Documents	Manual and component documents	1 Set
Heating Elements	Customized Heater	1 Set
Thermocouple	WATLOW/THERMOWAY, Type K	1 PC
Temperature Controller		1 Set
Monitor	Touch screen	1 Set
SSR	Spare part	1 PC

Installation & Operation Notes

Foundation load-bearing capacity must exceed 500kg/m²
Exhaust system requires minimum 15m³/h extraction capacity
Compressed air must undergo triple filtration (oil-water separation + precision filtration + drying tower)
Recommended nitrogen purity ≥99.9% for sensitive materials
Optimal loading rate of material trays: 70%-80%
