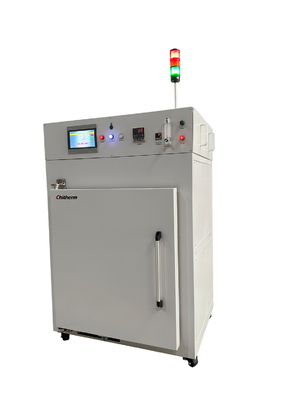

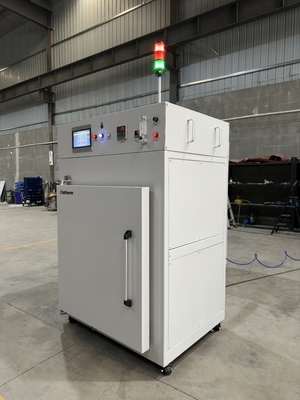

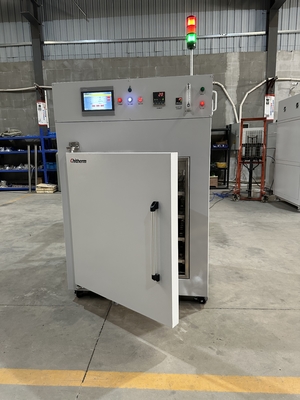

HRF535-02 Hot Air Box Furnace Industrial Electric Furnace Hot Air Box Furnace For Ceramic Drying

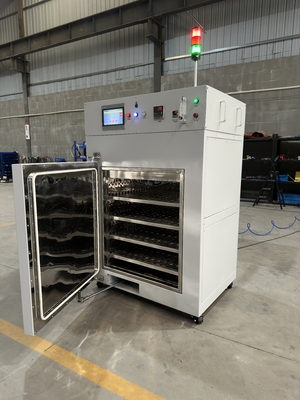

Large Image : HRF535-02 Hot Air Box Furnace Industrial Electric Furnace Hot Air Box Furnace For Ceramic Drying

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	HRF535-02 Type

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Delivery Time:	90 work days
Payment Terms:	L/C,T/T
Supply Ability:	50 Sets/Year

Contact Now

HRF535-02 Hot Air Box Furnace Industrial Electric Furnace Hot Air Box Furnace For Ceramic Drying

Description

Model NO.:	HRF535-02 Type	Range Of Applications:	Industrial
Type:	Electric Holding Furnace	Usage:	Ceramic Drying
Fuel:	Electric	Atmosphere:	Nitrogen
Effective Chamber Dimensions:	850700900mm(WHD)	Rated Temperature:	Rt+10~200ºC
Heating Elements:	Custom-Made Squirrel-Cage Heaters	Control Points:	1 Point
Transport Package:	Wooden Packaging	Specification:	125018701076mm(WHD)
Trademark:	Chitherm	Origin:	China
HS Code:	8514101000	Supply Ability:	50 Sets/Year
Package Size:	1600.00cm * 1550.00cm * 2250.00cm	Package Gross Weight:	709.000kg
Customization:	Available	Certification:	ISO
Place Style:	Vertical	Shipping Cost:	Contact The Supplier About Freight And Estimated Delivery Time.
:	Support Payments In USD	Secure Payments:	Every Payment You Make On Made-in-China.com Is Protected By The Platform.
Refund Policy:	Claim A Refund If Your Order Doesn't Ship, Is Missing, Or Arrives With Product Issues.
Highlight:	HRF535-02 Hot Air Box Furnace , Industrial Electric Furnace Hot Air Box Furnace , Ceramic Drying Furnace Hot Air Box Furnace

HRF535-02 Hot Air Box Furnace Industrial Electric Furnace

Product Overview

Advanced industrial electric furnace designed for ceramic drying applications with precise temperature control and nitrogen atmosphere capability.

Key Specifications

Model NO.	HRF535-02 Type
Application	Industrial Ceramic Drying
Effective Chamber Dimensions	850×700×900mm (W×H×D)
Rated Temperature	RT+10~200°C
Heating Elements	Custom-Made Squirrel-Cage Heaters
Atmosphere	Nitrogen
Certification	ISO

Core Features

Precision Temperature Control: ±1°C stability, ±3°C uniformity at 150°C
Programmable Operation: 20 groups × 20 segments
Multi-layer Design: 4 layers of SUS304 stainless steel trays
Forced Air Circulation: Squirrel-cage heater system
Safety Protection: Overtemperature, thermocouple break, and motor overload protection

Technical Specifications

Temperature Control

Operating Range: RT+10～200°C (Max. 200°C)
Precision Control: ±1°C (Stability) / ±3°C (Uniformity @150°C Empty Chamber)
Program Capability: 20 Groups × 20 Segments

Structural Design

Effective Volume: 0.535m³ (850×700×900mm)

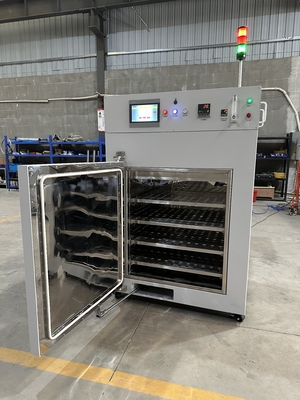

Multi-layer Design: 4 Layers of SUS304 Stainless Steel Trays

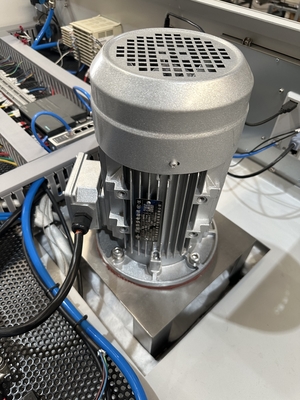

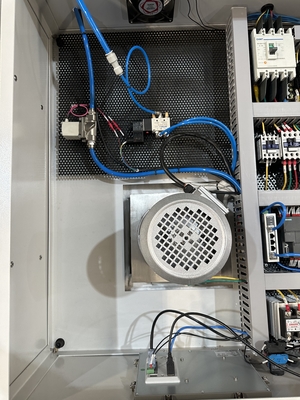

Hot Air System: Squirrel-cage Heater + Forced Circulation

Gas Control System

Dual Gas Source Support: Compressed Air / Nitrogen (Optional)
Flow Adjustment: 24-240 LPM (Glass Rotameter)
Exhaust Treatment: Requires >15m³/h Extraction System

Installation Requirements

Power: 14kVA Three-phase (380-415V±10%)
Gas Source: Clean Compressed Air with Dew Point ≤-20°C
Floor Load: ≥500kg/m²
Space: Minimum 3㎡ area with 3000mm vertical clearance

Application Guidelines

Ideal for step heating processes in electronic ceramics
Sensitive material debinding possible in nitrogen protection mode
No-load power consumption ≤5kW
Recommended full-load operation time <8h/day

Delivery Contents

Item	Note	QTY
Basic Compositions	Dryer	1 PC
Certificates of Inspection	Dryer and major purchased components	1 Set

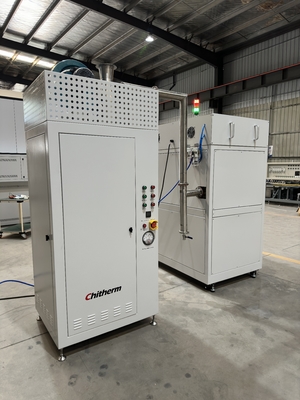

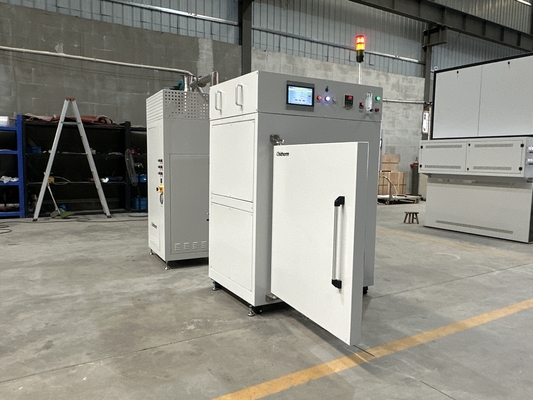

Waste Gas Incinerator		1 PC
Technical Documents	Manual instructions, technical documents of major purchased components	1 Set
Key Parts
Heating Elements	Customized Heater	1 Set
Thermocouple	WATLOW/THERMOWAY, Type K	1 PC
Temperature Controller		1 Set
Monitor	Touch screen	1 Set
Spares
SSR		1 PC

Ordering Information

Supply Ability: 50 Sets/Year
Customization: Available
Shipping: Contact supplier for freight and delivery time
Payment: USD payments accepted

All payments are protected by Made-in-China.com platform. Refund available for orders that don't ship, are missing, or arrive with product issues.
