HRF535-02 type hot air box furnace with high control precision, industrial furnace, muffle furnace

Large Image : HRF535-02 type hot air box furnace with high control precision, industrial furnace, muffle furnace

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	HRF535-02 Type

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Delivery Time:	90 work days
Payment Terms:	L/C,T/T
Supply Ability:	50 Sets/Year

Contact Now

HRF535-02 type hot air box furnace with high control precision, industrial furnace, muffle furnace

Description

Model NO.:	HRF535-02 Type	Range Of Applications:	Industrial
Type:	Electric Holding Furnace	Usage:	Ceramic Drying
Fuel:	Electric	Atmosphere:	Nitrogen
Effective Chamber Dimensions:	850700900mm(WHD)	Rated Temperature:	Rt+10~200ºC
Heating Elements:	Custom-Made Squirrel-Cage Heaters	Control Points:	1 Point
Transport Package:	Wooden Packaging	Specification:	125018701076mm(WHD)
Trademark:	Chitherm	Origin:	China
HS Code:	8514101000	Supply Ability:	50 Sets/Year
Package Size:	1600.00cm * 1550.00cm * 2250.00cm	Package Gross Weight:	709.000kg
Customization:	Available	Certification:	ISO
Place Style:	Vertical	Shipping Cost:	Contact The Supplier About Freight And Estimated Delivery Time.
:	Support Payments In USD	Secure Payments:	Every Payment You Make On Made-in-China.com Is Protected By The Platform.
Refund Policy:	Claim A Refund If Your Order Doesn't Ship, Is Missing, Or Arrives With Product Issues.
Highlight:	hot air box furnace with high precision , industrial muffle furnace with warranty , hot air drying oven for industrial use

HRF535-02 Type Hot Air Box Furnace

High-precision industrial muffle furnace designed for drying, curing, and debinding processes in semiconductor, electronic component, and material manufacturing applications.

Key Features

Precision temperature control with ±1°C accuracy
Stainless steel heating tubes and double-layer construction
Full fiber insulation for energy efficiency
Japanese Shimaden intelligent program temperature controller

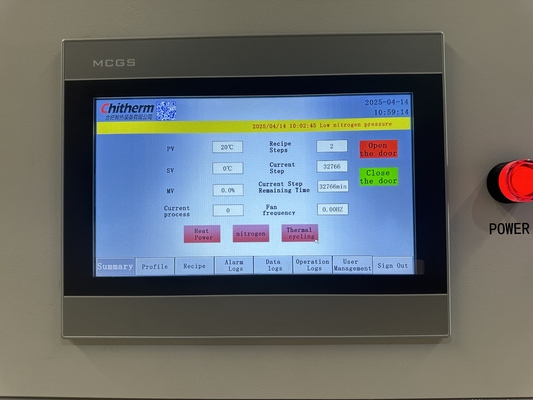

Siemens PLC control system with touch screen interface
Custom-made squirrel-cage heating elements
Nitrogen atmosphere capability

Technical Specifications

Attribute	Value
Model Number	HRF535-02 Type
Effective Chamber Dimensions	850×700×900mm (W×H×D)
Rated Temperature Range	RT+10~200°C
Temperature Uniformity	±3°C (empty furnace at 150°C)
Heating Elements	Custom squirrel-cage heaters
Power Requirements	240/(380-415)V, 3-phase 5-wire, >14kVA

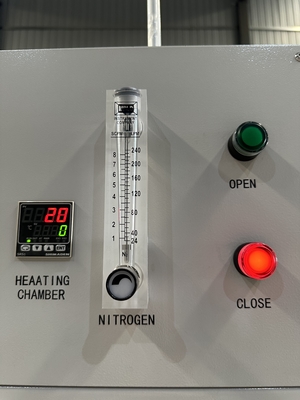

Atmosphere	Clean compressed air or nitrogen
Surface Temperature Rise	<35°C
Thermocouple Type	K-type
Control Points	1 point
Certification	ISO

System Components

The HRF535-02 consists of four main systems:

Furnace structure and door design
Hot air circulation system
Intake and exhaust system
Exhaust treatment device

Control System

Features a 4×16-segment heating curve with automatic temperature adjustment. The system includes:

PID auto-tuning function
High-temperature upper limit alarm
Thermocouple failure indication
20 programmable temperature control programs (20 steps each)

Installation Requirements

Environment: 0-40°C, ≤80% RH, no corrosive gases

Floor Space: Minimum 5m² with >300kg/m² load capacity

Power: Dedicated 3-phase 5-wire, 380±10%V, 50±2%Hz

Gas Supply: 0.2-0.4MPa clean, dry air or 99.999% nitrogen

Standard Delivery Contents

Item	Qty
Dryer Unit	1 PC
Inspection Certificates	1 Set
Waste Gas Incinerator	1 PC
Technical Documents	1 Set
Custom Heating Elements	1 Set
K-type Thermocouple	1 PC
Temperature Controller	1 Set
Touch Screen Monitor	1 Set
SSR Spare Part	1 PC

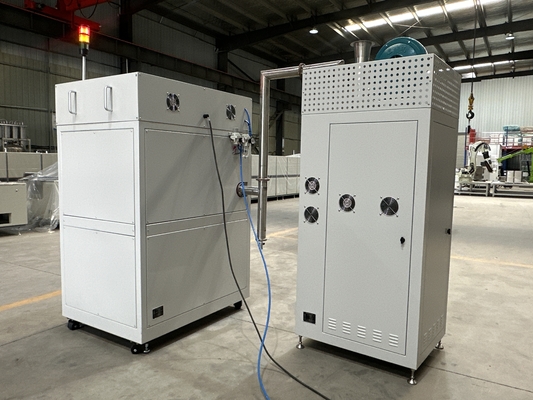

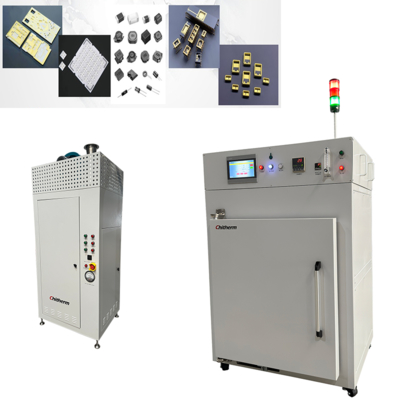

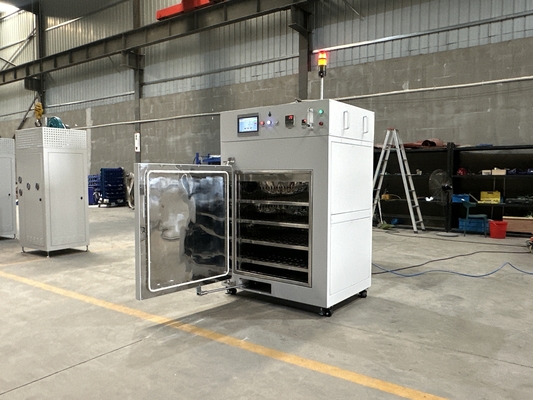

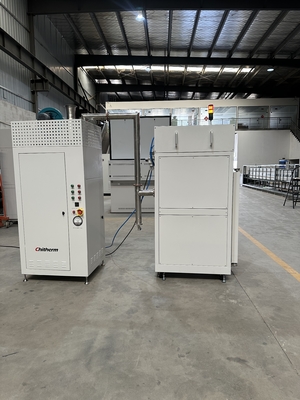

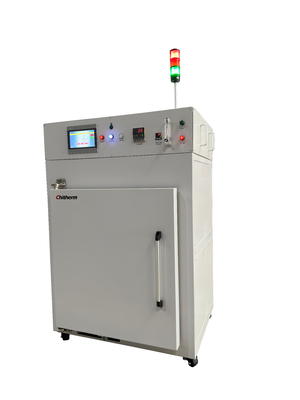

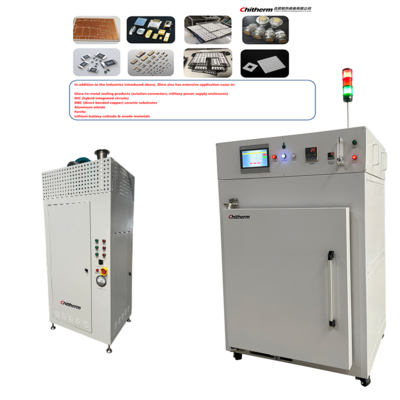

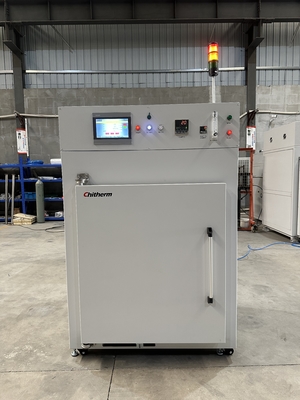

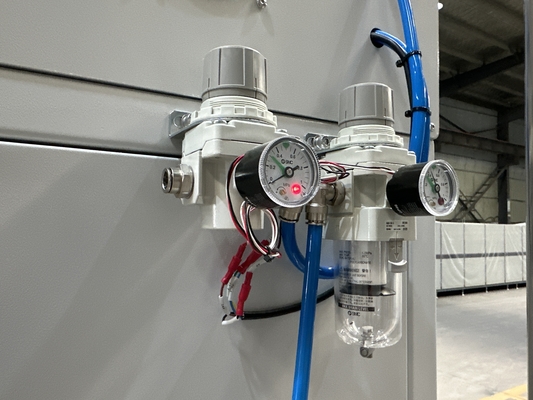

Product Images

Manufacturer Information

Hefei Chitherm Equipment Co., Ltd. specializes in R&D and manufacturing of industrial furnaces for advanced ceramics, electronic components, powder metallurgy, and new energy applications.

Frequently Asked Questions

What products does Chitherm offer?

We provide bell furnaces, hot air furnaces, box furnaces, tube furnaces, vacuum furnaces, and specialized kilns for various industrial thermal processes.

What pre-sales services are available?

We offer consultation services and highly customizable solutions to meet specific process requirements.

What are Chitherm's core strengths?

As a high-tech enterprise, we combine patented technologies with core manufacturing capabilities to deliver superior thermal processing solutions.
