HRF535-02 Hot Air Box Furnace Industrial Electric Furnace Hot Air Box Furnace For Ceramic Drying

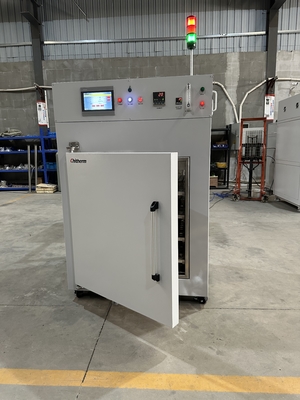

Large Image : HRF535-02 Hot Air Box Furnace Industrial Electric Furnace Hot Air Box Furnace For Ceramic Drying

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	HRF535-02 Type

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Delivery Time:	90 work days
Payment Terms:	L/C,T/T
Supply Ability:	50 Sets/Year

Contact Now Chat Now

HRF535-02 Hot Air Box Furnace Industrial Electric Furnace Hot Air Box Furnace For Ceramic Drying

Description

Specification:	125018701076mm(WHD)	Origin:	China
HS Code:	8514101000	Supply Ability:	50 Sets/Year
:	Support Payments In USD	Refund Policy:	Claim A Refund If Your Order Doesn't Ship, Is Missing, Or Arrives With Product Issues.
Highlight:	industrial electric hot air furnace , ceramic drying hot air oven , hot air box furnace HRF535-02

HRF535-02 Hot Air Box Furnace Industrial Electric Furnace

Professional-grade electric furnace designed for ceramic drying and industrial applications, featuring precise temperature control and nitrogen atmosphere capability.

Key Specifications

Model Number	HRF535-02 Type
Dimensions (W×H×D)	1250×1870×1076mm
Effective Chamber Size	850×700×900mm
Temperature Range	RT+10～200°C
Heating Elements	Custom-Made Squirrel-Cage Heaters
Control Points	1 Point
Atmosphere	Nitrogen

Core Features

Precision temperature control (±1°C stability, ±3°C uniformity @150°C empty chamber)
20 groups × 20 segments programmable control
4 layers of SUS304 stainless steel trays
Forced circulation hot air system
Dual compressed air/nitrogen gas source support
24-240 LPM flow adjustment via glass rotameter

Safety & Protection

Triple safeguards: overtemperature, thermocouple breakage, and motor overload protection
Surface temperature rise <35°C compliance
ISO certified manufacturing

Installation Requirements

Power Supply: 14kVA three-phase (380-415V±10%)

Compressed Air: Dew point ≤-20°C

Floor Load: ≥500kg/m²

Space Requirements: Minimum 3㎡ area with 3000mm clearance

Exhaust System: >15m³/h extraction required

Applications & Usage

Ideal for electronic ceramics step-heating processes
Sensitive material debinding capability in nitrogen protection mode
Recommended full-load operation <8h/day
Heat recovery systems suggested for improved energy utilization

Shipping & Payment

Origin	China
HS Code	8514101000
Supply Ability	50 Sets/Year
Package Size	1600×1550×2250cm
Gross Weight	709kg
Payment	USD transactions supported (platform-protected)
Refund Policy	Claims accepted for non-shipment, missing orders, or defective products
