Muffle Furnace Hot Air Drying Oven with 800800800mm Chamber for Uniform and Thorough Drying and Precise Temperature Control

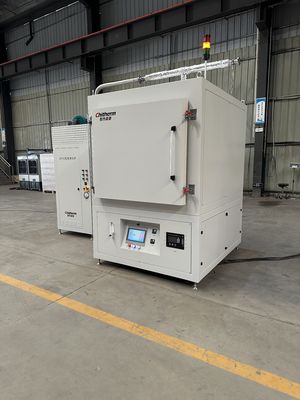

Large Image : Muffle Furnace Hot Air Drying Oven with 800*800*800mm Chamber for Uniform and Thorough Drying and Precise Temperature Control

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	Hrf512-07n

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now Chat Now

Muffle Furnace Hot Air Drying Oven with 800800800mm Chamber for Uniform and Thorough Drying and Precise Temperature Control

Description

Range Of Applications:	Industrial	Type:	Electric Holding Furnace
Usage:	Ceramic Drying	Fuel:	Electric
Atmosphere:	Nitrogen	Effective Chamber Dimensions:	800800800mm(WHD)
Thermocouple Type:	K Type	Transport Package:	Wooden Packaging
Specification:	150019302000mm(WHD)	Trademark:	Chitherm
Origin:	China	HS Code:	8514101000
Supply Ability:	50 Sets/Year	Customization:	Available
Certification:	ISO	Place Style:	Vertical
Highlight:	800800800mm Chamber Muffle Furnace , Uniform and Thorough Drying Hot Air Drying Oven , Precise Temperature Control Nitrogen Hot Air Debinding Furnace

Muffle Furnace Hot Air Drying Oven for Uniform and Thorough Drying of Different Materials

Basic Equipment Information

Model: HRF512-07N

Purpose: Primarily used for drying, curing, degreasing, and other heat treatment processes of semiconductors, electronic components, or related materials. Especially suitable for operations under a nitrogen protective atmosphere to prevent high-temperature oxidation.

Key Features

Rational structural design with stainless steel heaters

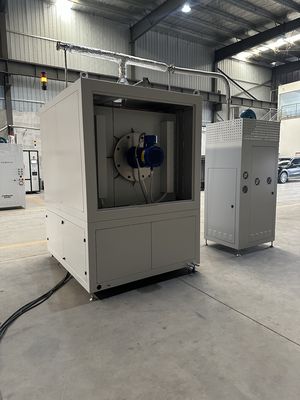

Hot air circulation system for uniform temperature distribution
Full-fiber insulation for superior heat retention
Precise temperature control (±1℃ stability)
Designed for long-term continuous operation

Technical Specifications

Parameter	Value

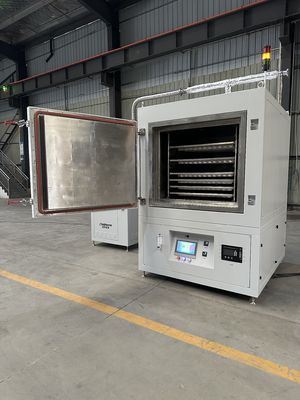

Effective Chamber Dimensions	800 * 800 * 800 mm (W * H * D)
Rated Temperature	650℃ (Max 700℃)
Temperature Control Stability	±1℃
Heating Rate	≤5℃/Min
Surface Temperature Rise	≤35℃
Thermocouple Type	K Type
Total Weight	Approximately 1200kg
Power Requirements	3-phase, 5-wire; 220/380 V, 50 Hz

Control System

HMI: MCGS touchscreen with user-friendly configuration software
Controller: Yamatake (Japan) C1A/C1M temperature controllers
PLC: Siemens for automation and logic control
Real-time responsiveness with fast data acquisition
Stable operation for prolonged continuous use

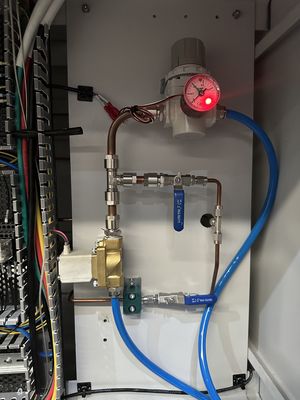

Gas & Cooling System

Nitrogen Supply: ≥ 99.999% purity, 0.2-0.4 MPa pressure, ~10 m³/h flow rate

Cooling Method: Passive natural cooling (no forced cooling)

Ventilation: Requires external exhaust system (>15 m³/h capacity)

Installation Requirements

Ambient temperature: 0-40°C
Humidity: <80% RH (no condensation)
Floor load capacity >300 kg/m²
Recommended space: 2000 * 3000 * 3000 mm (W * D * H)
Minimum area >6 m² for operation and maintenance
