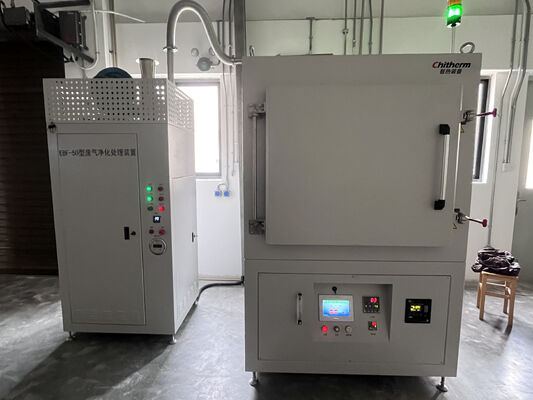

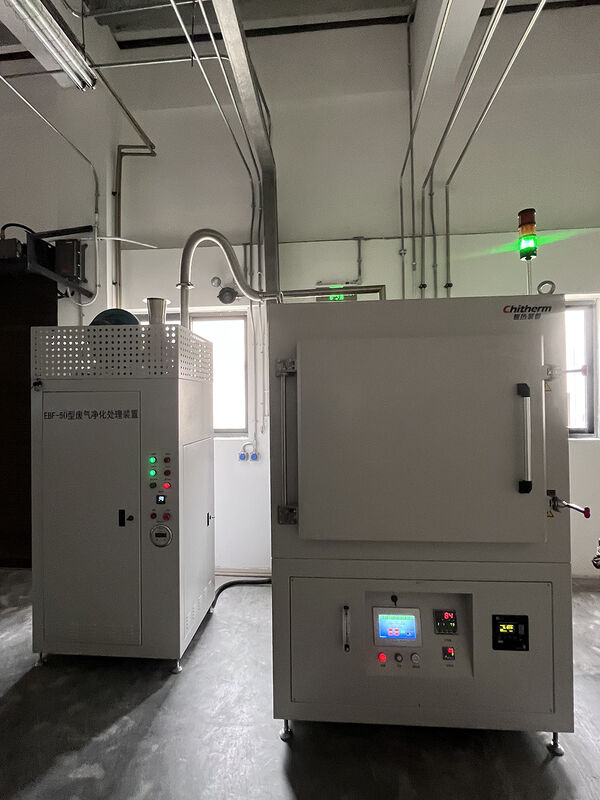

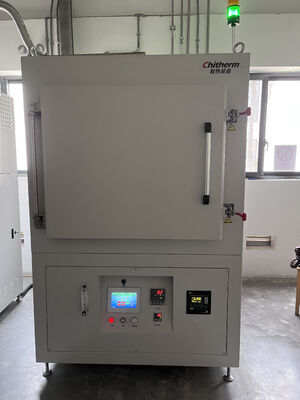

The entire oven is primarily composed of a frame, a furnace chamber, a furnace door, a hot air circulation system, a atmosphere system, a water cooling system, and a temperature control system.
II. Technical indicators and basic configuration
2.1. Temperature rating: 650 ° C;
2. Maximum temperature: 700 ° C;
2.3. Effective dimensions: 600 x 600 x 600 mm (W x H x D);
2.4. Material handling mode: stainless steel plating;
2.5. Furnace material: SUS310S;
2.6. Heating elements: stainless steel heaters;
2.7. Temperature control degree of stability: ± 1 °C;
2.8 platform temperature uniformity: ± 5C (300-600C platform, constant temperature 1h empty furnace test);
2.9. Thermocouple type: K degree;
2.10. Temperature control instrument: Japan imports smart temperature control instruments;
2.11. Number of stages of control: 4 × 16 stages;
2.12. Control temperature points: 1 point to control the studio temperature;
2.13. Detection points: 1 point to monitor the heating room temperature
2.14. Exhaust chimney: 1 which can be manually adjusted for the size of the exhaust vent;
2.15. Sintering atmosphere: air or nitrogen
2.16. Alarm protection: sound and light alarm protection such as ultra-temperature, deadlock, etc.;
2.17. Motor protection: overcurrent protection of the fan;
2.18. Surface temperature increase: ≤ 35 ° C;
2.19. Maximum heating rate: 5C / min;
2.20. Heating power: 24kW;
2.21. Empty furnace insulation power: ≤ 12kW;
2.22. Equipment colour: light grey;
2.23. Total weight of equipment: about 1000 kg;
2.24. External reference dimensions: 1300 mm × 1710mm × 1800mm (W × D × H, excluding chimneys).
| 3. Delivery List |
|
Item |
Note |
QTY |
| Basic Compositions |
Dryer |
|
1 PC |
| Certificates of Inspection |
Dryer and major purchased components |
1 Set |
| Technical Documents |
Manual instructions, technical documents of major purchased components, etc |
1 Set |
| Key Parts |
Heating Elements |
Stainless Steel Heater |
1 Set |
| Variable frequency drive |
|
1 Set |
| Air circulator |
Water cooling fan |
1 Set |
| Temperature Controller |
|
1 Set |
| Monitor |
Touch screen |
1 Set |
| Spares |
SSR |
|
1 PC |
| Stainless steel heater |
|
1 Set |
4. Facility Requirements4.1 Environmental conditions: Temperature 0 - 40ºC, humidity ≤ 80% RH, no corrosive gas, no strongairflow disturbance.4.2 Process air conditions: clean compressed air, pressure 0.2 - 0.4Mpa, gas consumption 3-7m3 /h.4.3 Ventilation system: non-contact access to the user pumping system, pumping capacity is greaterthan 10m3 /h;4.4 Ground requirements: level, no obvious vibration, bearing capacity >300Kg/m2 .4.5 Power conditions: capacity greater than 32kVA, 3 phases 5 lines, voltage 220/380V, frequency50Hz(according to local situation). Live wire: yellow, green, red, neutral wire: blue, ground wire: yellow-green;4.6 Installation site: 2000mm×3000mm×3000mm (W×H×D), installation area greater than 6m2.
