Industrial Furnace Hwf160-10nh Vacuum Muffle Furnace 's Product with Effective Chamber Dimensions 500500650mm WHD

Large Image : Industrial Furnace Hwf160-10nh Vacuum Muffle Furnace 's Product with Effective Chamber Dimensions 500*500*650mm W*H*D

Product Details:

Contact Now

Industrial Furnace Hwf160-10nh Vacuum Muffle Furnace 's Product with Effective Chamber Dimensions 500500650mm WHD

Description

Model NO.:	HWF160-10NH	Range Of Applications:	Industrial
Type:	Electric Holding Furnace	Usage:	Ceramic Sintering
Fuel:	Electric	Atmosphere:	Vacuum/Nitrogen/Hydrogen
Effective Chamber Dimensions:	500500650mm(WHD)	Thermcouple:	K
Max Temp:	1100ºC	Transport Package:	Wooden Packaging
Specification:	165019502000mm(WHD)	Trademark:	Chitherm
Origin:	China	HS Code:	8514101000
Supply Ability:	50 Sets/Year	Package Size:	166.00cm * 196.00cm * 201.00cm
Package Gross Weight:	1550.000kg	Customization:	Available
Certification:	ISO	Place Style:	Vertical
Shipping Cost:	Contact The Supplier About Freight And Estimated Delivery Time.	:	Support Payments In USD
Secure Payments:	Every Payment You Make On Made-in-China.com Is Protected By The Platform.	Refund Policy:	Claim A Refund If Your Order Doesn't Ship, Is Missing, Or Arrives With Product Issues.

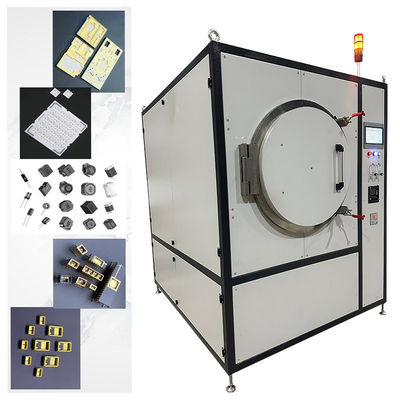

Industrial Furnace HWF160-10NH Vacuum Muffle Furnace

High-performance vacuum muffle furnace with effective chamber dimensions of 500×500×650mm (W×H×D), designed for industrial ceramic sintering and metal treatment processes.

Key Specifications

Model Number	HWF160-10NH
Max Temperature	1100°C
Atmosphere Options	Vacuum/Nitrogen/Hydrogen
Thermocouple Type	K
Dimensions (W×H×D)	1650×1950×2000mm
Weight	1500kg
Certification	ISO

Applications

This industrial furnace is designed for:

Soldering of metal parts and HTCC packages
Decarburization, annealing, and quenching processes
Thermal decomposition and hardening treatments
Ceramic sintering applications

Technical Specifications

Rated Temperature: 900°C

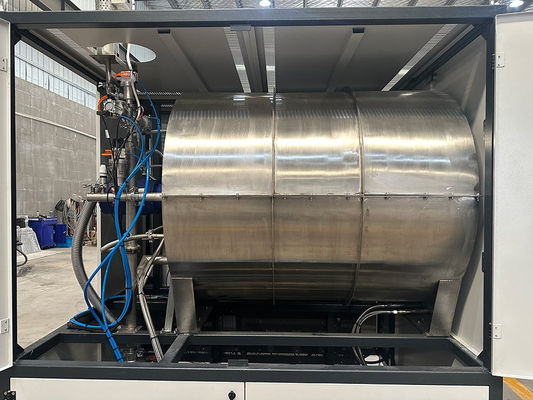

Muffle Material: SUS 310S
Heating Method: Resistance wire pre-built heating plate
Temperature Control: ±1°C stability with PID controller
Temperature Uniformity: ±5°C
Max Heating Power: 40kW
Cooling System: Air cooling with blower
Vacuum Level: ≤10Pa
Alarm System: Audible and visual alerts for safety conditions

Delivery Contents

Component	Details	Quantity
Furnace Unit	Main assembly	1 SET
Temperature Controller	Azbil, CHINO or equivalent	1 SET
PLC System	SIEMENS or equivalent	1 SET
Thermocouples	Type N	3 PCs

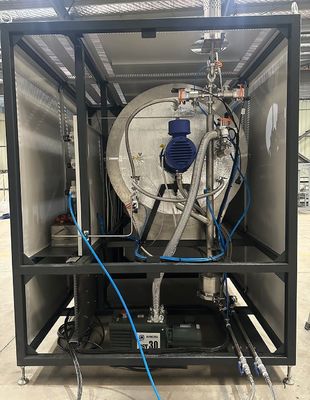

Vacuum System	Complete assembly	1 SET
Spare Parts	SSR, sealing ring	1 PC each

Facility Requirements

Power: 55kVA, 3-phase 5-line, 220/380V, 50Hz
N2 Supply: 99.999% purity, 0.2-0.4MPa pressure
H2 Supply: 0.2-0.4MPa pressure
Compressed Air: Dry, clean, oil-free, 0.4-0.8MPa
Installation Space: Minimum 3000×2500×3000mm (D×W×H)
Floor Load: >500kg/m²

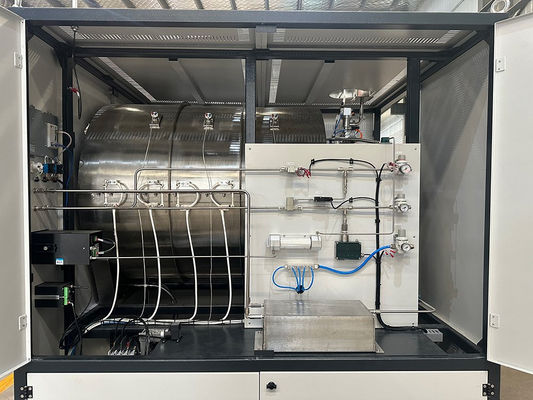

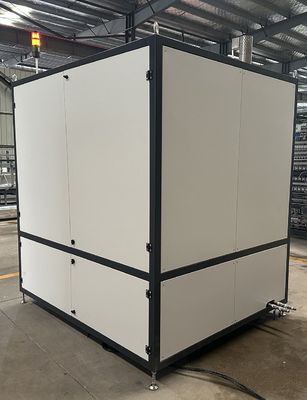

Product Images
