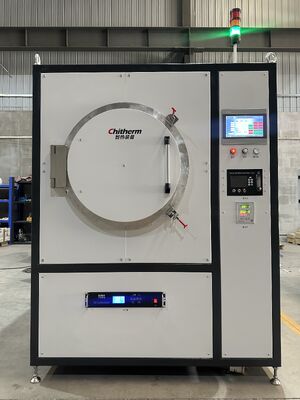

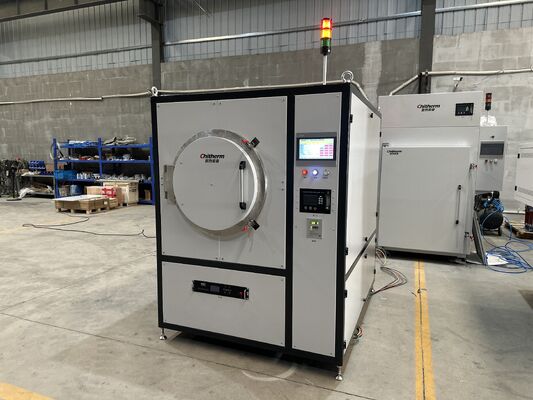

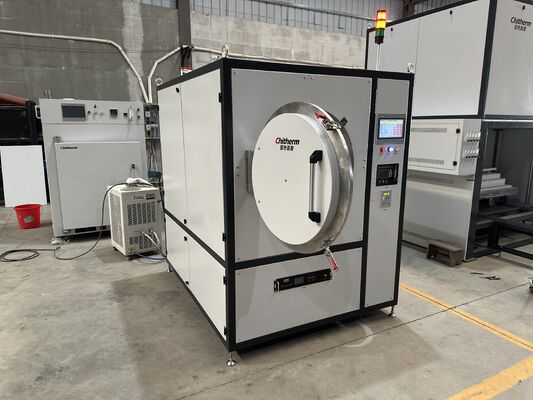

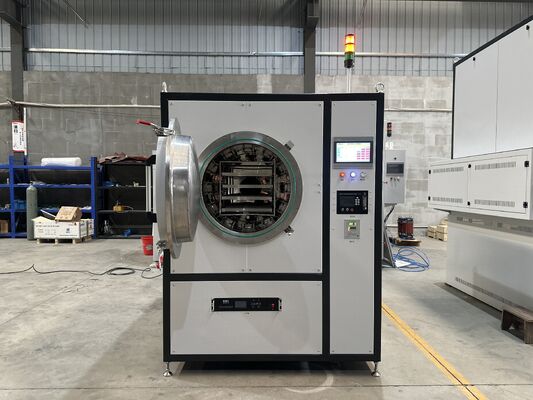

Hwf80-04n Ultra-Low Oxygen Content (Less than 50 ppm) Programmable Hydrogen Removal Furnace Muffle Furnace

Large Image : Hwf80-04n Ultra-Low Oxygen Content (Less than 50 ppm) Programmable Hydrogen Removal Furnace Muffle Furnace

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	HWF80-04N

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Wooden Packaging
Delivery Time:	90 work days
Payment Terms:	T/T,L/C
Supply Ability:	50 Sets/Year

Contact Now Chat Now

Hwf80-04n Ultra-Low Oxygen Content (Less than 50 ppm) Programmable Hydrogen Removal Furnace Muffle Furnace

Description

Model NO.:	HWF80-04N	Type:	Electric Holding Furnace
Usage:	Ceramic Sintering	Fuel:	Electric
Atmosphere:	Vacuum/Nitrogen	Effective Chamber Dimensions:	400400500mm(WHD)
Maximum Temperature:	400°c	Maximum Heating Power:	15kw
Idle Furnace Insulation Power:	≤7.5kw	Temperature Control Accuracy:	±1°c
Thermocouple Type:	K-Type	Transport Package:	Wooden Packaging
Specification:	150019501750mm(WHD)	Trademark:	Chitherm
Origin:	China	HS Code:	8514101000
Supply Ability:	50 Sets/Year	Package Size:	1550.00cm * 1960.00cm * 1760.00cm
Package Gross Weight:	1000.000kg	Customization:	Available
Place Style:	Vertical	Range Of Applications:	Industrial
Shipping Cost:	Contact The Supplier About Freight And Estimated Delivery Time.	:	Support Payments In USD
Secure Payments:	Every Payment You Make On Made-in-China.com Is Protected By The Platform.	Refund Policy:	Claim A Refund If Your Order Doesn't Ship, Is Missing, Or Arrives With Product Issues.

I. Basic Equipment Information
Equipment Name: Hydrogen Removal Furnace
Equipment Model: HWF80-04N
Application Fields: Heat treatment processes including decarburization, hydrogen removal, annealing, tempering, and binder removal
Equipment Weight: Approximately 1000kg
Equipment Color: Light gray
Reference Overall Dimensions: 1500×1950×1750mm (W×H×D); actual dimensions subject to the final product
II. Core Technical Indicators
Rated Temperature: 350℃ (unlimited holding time at platform temperature)
Maximum Temperature: 400℃
Tank Material: SUS316L
Effective Dimensions: 400×400×500mm (W×H×D)

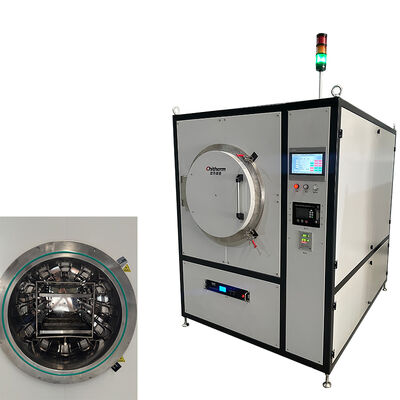

Loading Method: Manual loading; horizontal guide rails and material racks are installed inside the tank

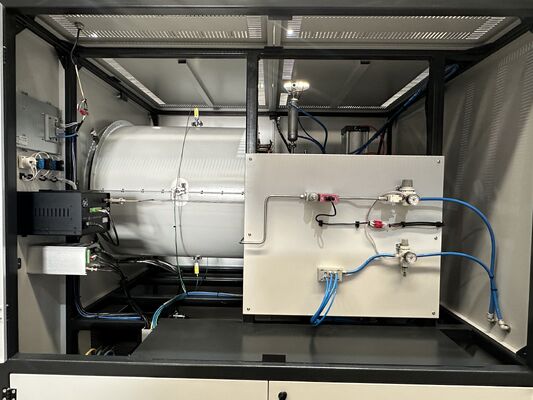

Heating Element: Internal heating with stainless steel heating tubes
Heating Method: Hot air circulation heating
Maximum Heating Power: 15kW
No-Load Heat Preservation Power: ≤7.5kW
Heating Rate: ≤5℃/min
Temperature Control Precision: ±1℃, with PID parameter self-tuning function
Temperature Uniformity: ±5℃ (tested under no-load condition at 350℃ for 1 hour)
Thermocouple Type: K-type
Temperature Control Points: 1 point

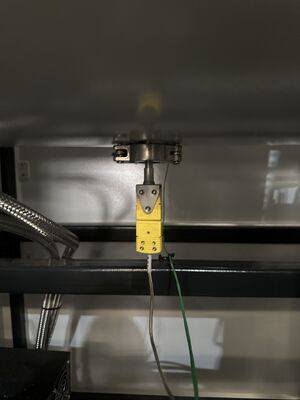

Temperature Measurement Method: Reserved detection port for installing an armored flexible thermocouple for real-time monitoring
Program Steps: 20 steps
Sintering Atmosphere: Vacuum/Nitrogen

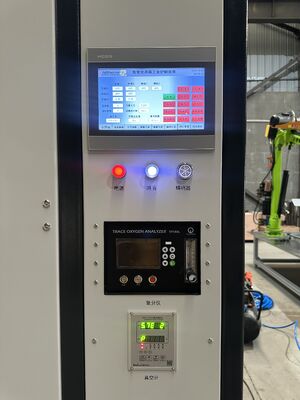

Oxygen Detection Configuration: Equipped with one micro-oxygen analyzer for detecting the oxygen content inside the tank (under positive pressure inert atmosphere inside the tank)
Oxygen Content: ≤50ppm

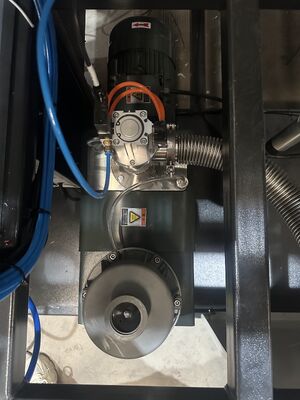

Ultimate Vacuum Degree: 10⁻²Pa (under no-load, clean, room temperature, and fully degassed conditions)
Vacuum Pumping Time: ≤60 minutes to reach 10⁻²Pa from atmospheric pressure
Cooling Method: Furnace cooling; time from 350℃ to room temperature <12 hours
Number of Exhaust Ports: 1
Surface Temperature Rise: <35℃
Alarm Protection Function: Audio-visual alarm protection for over-temperature, thermocouple breakage, low air pressure, low water pressure, motor phase loss, etc.; equipped with over-temperature alarm and heating cut-off protection function
III. Installation and Operating Conditions
Environmental Conditions: Temperature 0～40℃, humidity ≤80％RH, no corrosive gases, no strong air disturbance

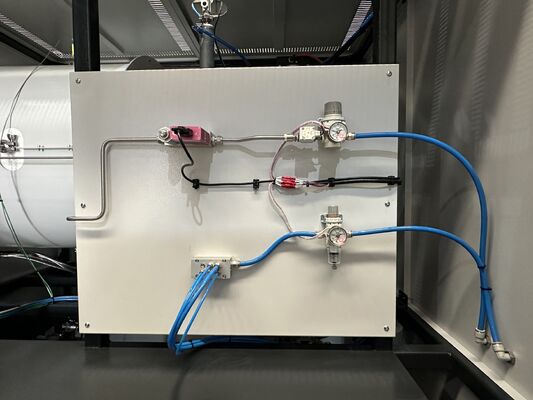

Nitrogen Conditions: Gas source pressure 0.2～0.4Mpa, purity 99.999%, gas consumption 2～6m³/h
Ventilation Gas Source Conditions: Clean, dry, oil-free compressed air with pressure 0.4～0.8Mpa
Water Inlet Conditions: Pressure 0.1～0.3Mpa, clean, non-corrosive, supply flow 1～3L/min
Ventilation System: Non-contact connection to the user's air extraction system with an extraction capacity >10m³/h
Floor Requirements: Level, no obvious vibration, load-bearing capacity >500kg/m²
Power Supply Conditions: Capacity >22kVA, 3-phase 5-wire system, voltage 220/380V, frequency 50Hz; Live wires: yellow, green, red; Neutral wire: blue; Ground wire: yellow-green
Installation Site: Dimensions 3000mm×2500mm×3000mm (D×W×H), installation area >8m² Hwf80-04n Ultra-Low Oxygen Content (Less than 50 ppm) Programmable Hydrogen Removal Furnace Muffle Furnace 1
