HWF80-04N Series Precision Atmosphere-Controlled Vacuum Muffle Furnace with 400°C Max Temperature 15kW Heating Power and ±1°C Accuracy

Large Image : HWF80-04N Series Precision Atmosphere-Controlled Vacuum Muffle Furnace with 400°C Max Temperature 15kW Heating Power and ±1°C Accuracy

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	HWF80-04N

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Wooden Packaging
Delivery Time:	90 work days
Payment Terms:	T/T,L/C
Supply Ability:	50 Sets/Year

Contact Now Chat Now

HWF80-04N Series Precision Atmosphere-Controlled Vacuum Muffle Furnace with 400°C Max Temperature 15kW Heating Power and ±1°C Accuracy

Description

Model NO.:	HWF80-04N	Type:	Electric Holding Furnace
Usage:	Ceramic Sintering	Fuel:	Electric
Atmosphere:	Vacuum/Nitrogen	Effective Chamber Dimensions:	400400500mm(WHD)
Maximum Temperature:	400°c	Maximum Heating Power:	15kw
Idle Furnace Insulation Power:	≤7.5kw	Temperature Control Accuracy:	±1°c
Thermocouple Type:	K-Type	Transport Package:	Wooden Packaging
Specification:	150019501750mm(WHD)	Trademark:	Chitherm
Origin:	China	HS Code:	8514101000
Supply Ability:	50 Sets/Year	Package Size:	1550.00cm * 1960.00cm * 1760.00cm
Package Gross Weight:	1000.000kg	Customization:	Available
Place Style:	Vertical	Range Of Applications:	Industrial
Shipping Cost:	Contact The Supplier About Freight And Estimated Delivery Time.	:	Support Payments In USD
Secure Payments:	Every Payment You Make On Made-in-China.com Is Protected By The Platform.	Refund Policy:	Claim A Refund If Your Order Doesn't Ship, Is Missing, Or Arrives With Product Issues.
Highlight:	400°C Maximum Temperature Vacuum Muffle Furnace , 15kW Maximum Heating Power Precision Atmosphere-Controlled Furnace , ±1°C Temperature Control Accuracy Electric Holding Furnace

HWF80-04N Series Precision Atmosphere-Controlled Vacuum Furnace Muffle Furnace

Basic Equipment Information

Item	Details
Equipment Model	HWF80-04N Type Hydrogen Removal Furnace
Application Field	Heat treatment processes such as decarburization, hydrogen removal, annealing, tempering, and binder removal
Equipment Weight	Approximately 1000kg
Equipment Color	Light gray
Reference Overall Dimensions	1500×1950×1750mm (W×H×D), subject to the actual product
Installation Site Dimensions	3000mm×2500mm×3000mm (D×W×H), installation area ≥8m²

Core Technical Indicators

Temperature-related

Rated Temperature: 350ºC (unlimited holding time); Maximum Temperature: 400ºC
Heating Rate: ≤5ºC/min; Temperature Control Accuracy: ±1ºC (with PID parameter self-tuning function)
Temperature Uniformity: ±5ºC (tested in empty furnace at 350ºC for 1h under constant temperature)
Cooling Method: Furnace cooling (time from 350ºC to room temperature <12h)
Heating Method: Hot air circulation heating
Heating Element: Internal heating with stainless steel heating tubes
Maximum Heating Power: 15kW; Empty Furnace Holding Power: ≤7.5kW
Thermocouple Type: K grade
Temperature Control Points: 1 point (reserved detection port for installing armored flexible thermocouple for real-time monitoring)

Atmosphere and Vacuum-related

Sintering Atmosphere: Vacuum/Nitrogen

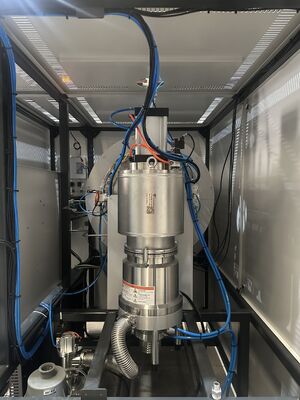

Ultimate Vacuum Degree: 10-²Pa (empty furnace, clean, room temperature, fully degassed)
Vacuum Pumping Time: ≤60min (from atmospheric pressure to 10-²Pa)
Oxygen Content: Better than 50ppm (under positive pressure inert atmosphere)
Equipped with a micro-oxygen analyzer to detect oxygen content inside the tank
Number of Exhaust Ports: 1

Structure and Safety

Tank Material: SUS316L

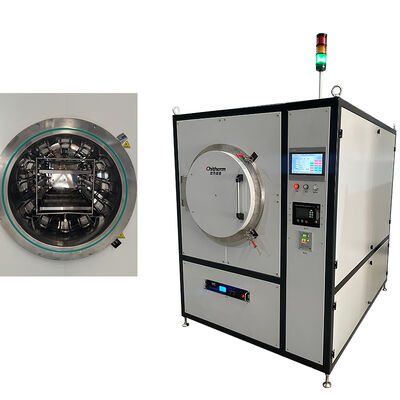

Effective Dimensions: 400×400×500mm (W×H×D)
Loading Method: Manual loading, with horizontal guide rails and racks inside the tank
Surface Temperature Rise: <35ºC
Alarm Protection: Acoustic and optical alarm protection for over-temperature, thermocouple breakage, low air pressure, low water pressure, motor under/over phase, etc., and over-temperature alarm to cut off heating protection function

Installation and Operation Conditions

Environmental Conditions: Temperature 0~40ºC, Humidity ≤80%RH, no corrosive gas, no strong air disturbance

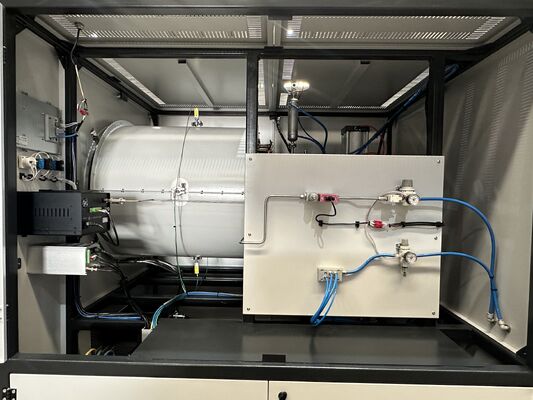

Nitrogen: Pressure 0.2~0.4Mpa, Purity 99.999%, Gas Consumption 2~6m³/h
Compressed Air: Clean, dry, oil-free, Pressure 0.4~0.8Mpa
Water Inlet Conditions: Pressure 0.1~0.3Mpa, clean, non-corrosive, supply flow rate 1~3L/min
Ventilation System: Non-contact connection to the user's air extraction system, extraction capacity >10m³/h
Ground Requirements: Level, no obvious vibration, load-bearing capacity >500kg/m²
Power Conditions: Capacity >22kVA, 3-phase 5-wire, Voltage 220/380V, Frequency 50Hz (Live wire: Yellow/Green/Red, Neutral wire: Blue, Ground wire: Yellow-green)
