Customization Industrial Hot Air Drying Oven Nitrogen Hot Air Debinding Furnace

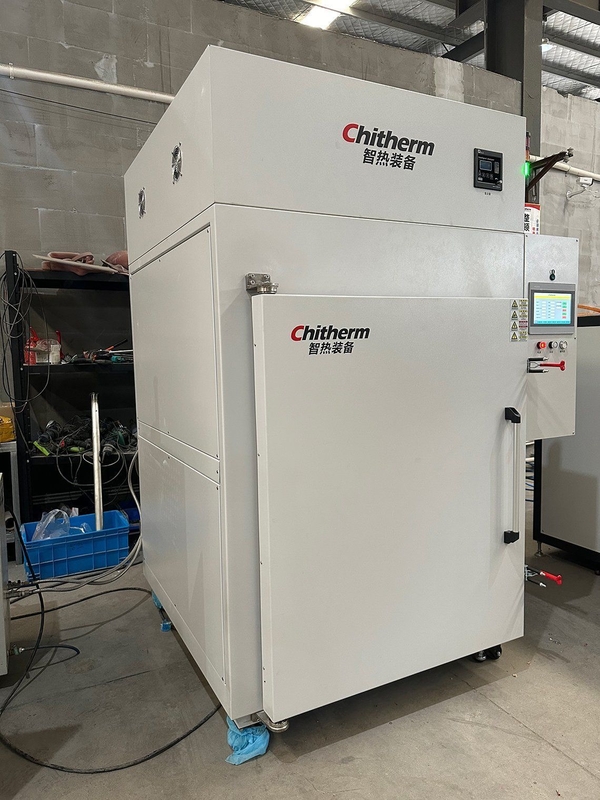

Large Image : Customization Industrial Hot Air Drying Oven Nitrogen Hot Air Debinding Furnace

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	Hrf800-06NO

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now Chat Now

Customization Industrial Hot Air Drying Oven Nitrogen Hot Air Debinding Furnace

Description

Effective Chamber Dimensions:	80010001000mm(WHD)	Transport Package:	Wooden Packaging
Supply Ability:	50 Sets/Year	Customization:	Available
Certification:	ISO	Place Style:	Vertical
Highlight:	industrial hot air drying oven , nitrogen debinding furnace , customizable debinding oven

Customization Industrial Hot Air Drying Oven Nitrogen Hot Air Debinding Furnace

Product Specifications

Attribute	Value
Effective Chamber Dimensions	80010001000mm (WHD)
Transport Package	Wooden Packaging
Supply Ability	50 Sets/Year
Customization	Available
Certification	ISO
Place Style	Vertical

Technical Specifications

Thermal Performance: Rated temperature 550°C; Maximum 600°C; Stability ±1°C; Uniformity ±3°C (550°C plateau, 1h no-load); Heating power 24kW max / ≤12kW preservation; Surface temperature rise <35°C.

Chamber Structure: Dimensions 800×1000×1000mm (W×H×D); SUS316L construction; 300kg load capacity.

Control System: K-type thermocouple; 40 programmable steps; 1 control point + 1 monitoring point + 5 real-time temperature tracking points; Audible/visual alarms for over-temperature/thermocouple failure.

Atmosphere Management: Air/Nitrogen compatible; Gas purity 99.999%; Pressure 0.2-0.4MPa; Consumption 10-30m³/h; Non-contact exhaust interface (>30m³/h capacity).

Physical Parameters: Overall dimensions ≈1500×1630×1350mm (excl. fan/chimney); Weight ≈1200kg; Light gray finish; Squirrel-cage heaters.

Operating Requirements

Environment: 0-40°C, ≤80% RH, non-corrosive, low turbulence
Floor: Level, vibration-free, >600kg/m² load-bearing
Power: >40kVA, 3P5W (220/380V 50Hz): Phase lines (Y/G/R), Neutral (B), Ground (Y-G)
Space: 2000×2600×3000mm (W×D×H), >6m² area

Delivery Summary

Name	Key Contents	Qty
Basic Components	Furnace Main Unit	1 set
Electric Purification Furnace	Max. capacity 50m³	1 set
Inspection Certificate	Certificates of major purchased components	1 set
Technical Documentation	Manuals, technical files for purchased parts	1 set
Critical Components	Heater (Squirrel-Cage Type)	1 set
Control Thermocouple	Type K	1 pc
Measurement Thermocouple	Type K	1 pc
Monitoring Thermocouples	Type K	5 pcs
Temperature Control Module	Japan-sourced	1 set
PLC	Siemens	1 set
UPS	1kVA	1 set
Touch Screen	10-inch	1 set
Oxygen Analyzer	CI-PC96	1 set
Circulation Fan	Max. airflow 5000m³/h	1 set
Chiller Unit	0.5m³/h	1 set
Spare Parts	Solid State Relay	1 pc
Spare Parts	Heater	1 pc

Hefei Chitherm Equipment Co., Ltd. is a professional enterprise engaged in the research and development, design, manufacturing, sales, maintenance and service of high, medium and low temperature industrial furnaces and experimental furnaces.

Our products include Bell Furnaces, Box Furnaces, Hot Air Dryer, Tube Furnaces, Vacuum Furnaces, Trolley Furnaces, and Rotary Furnaces. All of which are widely used in scientific research and experimentation in advanced ceramics, additive manufacturing, powder metallurgy, new energy and other fields.

We insist responsible attitude towards customers and provide high-quality products and services. It is precisely because of the support, understanding, and trust of our customers and friends that our intelligent equipment manufacturing capabilities continue to improve.
