Customizable Hot Air Drying Oven for Meeting Specific Drying Requirements Hrf216-07n Muffle Furnace

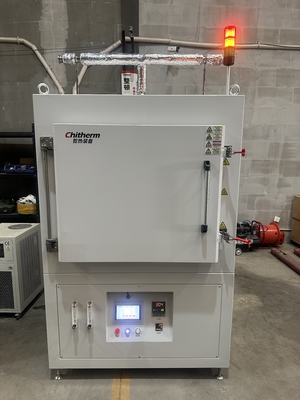

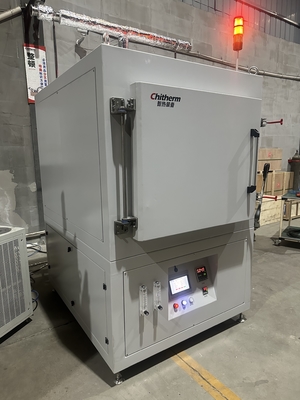

I. Equipment Overview

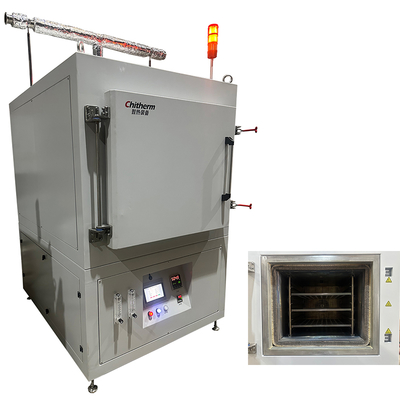

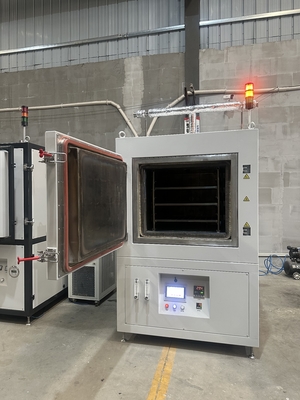

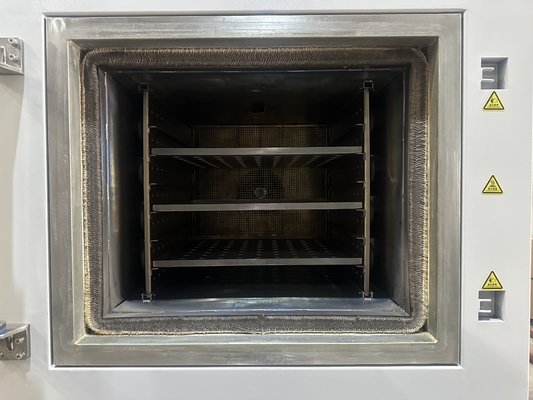

The HRF216-07N hot air debinding furnace is specifically designed for drying, curing, and debinding processes in semiconductors, electronic components, and materials. It is suitable for applications requiring high temperature uniformity and process stability.

III. Intelligent control features

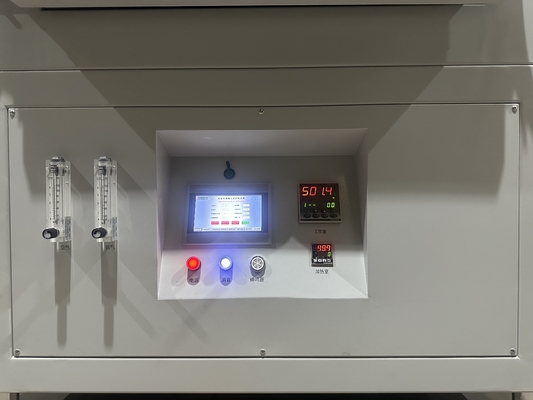

·Program control: 4 × 16 stages of heating curve are adapted to complex process requirements by setting automatic power adjustment (power board triggers power module);

·Temperature measuring element: K-graded thermocouple (high-precision temperature detection);

·Protective functions: high temperature ceiling alarm (to prevent overheating), thermocouple failure indicator (to early warning of failure), to ensure the safety of equipment and process;

·Stability: Single point temperature control accuracy ± 1 ° C (reliable key process parameters).

IV. Customer usage preparation requirements
In order to ensure the normal operation of the equipment and the process effectiveness, the customer needs to meet the following conditions in advance:

1. Environmental conditions
·Temperature: 0 ~ 40 ° C (avoiding extreme temperatures affecting temperature control accuracy);

·Humidity: ≤ 80% RH (to prevent condensation or short circuit);

·Climate: No corrosive gases (such as acid / alkaline vapour), no strong airflow disturbance (avoiding interference with the hot air circulation in the furnace).

2. Gas source conditions (chosen according to process requirements)
·Type: clean oil-free compressed air or high purity nitrogen (nitrogen is recommended for anti-oxidation processes);

·Purity: ≥ 99.999% (high purity to avoid contamination of workpieces);

·Pressure: 0.2 ~ 0.4 MPa (stable air supply);

·Consumption: 3 ~ 7 m3 / h (need air source system matching).

3. Water supply conditions (if the equipment contains cooling components)
·Water quality: clean and non-corrosive (avoiding blockage or corrosion of pipelines);

·Water temperature: ≤ 23 ° C (improved cooling efficiency);

·Pressure: 0.2 ~ 0.4 MPa;

·Consumption: 2 ~ 6 L / min.

4. Ventilation System
·Require access to the user drainage system (non-contact connection to avoid vibration transmission);

·Drainage capacity: > 10 m3 / h (timely discharge of rubber exhaust gas to ensure safe operation).

5. Ground requirements
·Level: No obvious inclination (to ensure equipment stability);

·Load: > 300 kg / m2 (total supporting equipment weight of about 1000 kg);

·Vibration: No visible mechanical vibration (avoiding affecting temperature uniformity).

6. Dynamic conditions
·Power: 3-phase 5-wire system (fire: yellow / green / red, zero: blue, ground: yellow and green), voltage 220 / 380 V, frequency 50Hz;

·Capacity: > 32kVA (to meet the heating power and control circuit requirements);

·Note: The wiring needs to strictly distinguish the phase order (avoid the inversion of the motor to affect the steering of the wind turbine).

7. Installation site
·Size: The equipment periphery should be reserved ≥ 2000mm × 3000mm × 3000mm (width × depth × height) space, the minimum installation area > 6m2 (easy to operate, maintain and heat dissipation).
