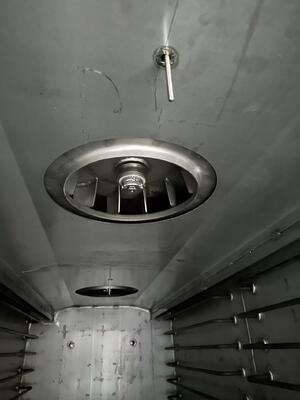

Hot Air Trolley Furnace HRF1350-06 with 750*2000*900mm Chamber and 600°C Rated Temperature for Industrial Heat Treatment

Wide Application Scenarios: Multi-industry Compatibility & Strong Adaptability

Integrating multiple functions including drying, curing, annealing, degumming and stress-relief heat treatment, the HRF1350-06 hot air trolley furnace features powerful versatility and serves a wide range of industrial fields:

1. New Material Industry: Ceramic material degumming, powder material drying and curing, high-temperature shaping of composite materials;
2. Machinery Manufacturing Industry: Annealing, normalizing and stress relief treatment for carbon steel, alloy steel and stainless steel workpieces; stress elimination for castings and welded parts;
3. Hardware & Auto Parts Industry: High-temperature curing and heat treatment processing for auto parts, hardware castings and mold accessories;
4. Scientific Research Field: New material research and development, small-batch high-temperature process testing for universities and research institutes;
5. Metallurgy & Building Materials Industry: Heating of small metallurgical workpieces, drying and curing of building materials.

Equipment Advantages: Cost Reduction, Efficiency Improvement and Long-term Stability

1. Energy Saving & Low Consumption: Adopting full ceramic fiber thermal insulation structure and fully enclosed hot air circulation design, the furnace minimizes heat loss. It realizes fast temperature rise with lower energy consumption, delivering high cost performance for long-term operation.
2. Stable Process Performance: Equipped with high-precision uniform temperature field and programmable temperature control system, it ensures consistent workpiece processing quality and greatly reduces defective rates.
3. Easy Operation: Electrically driven trolley access and automatic furnace door lifting with one-click intelligent program setting, enabling easy operation for new operators.
4. Low Maintenance Cost: Modular structure design allows disassembly and maintenance of core components. The furnace lining is resistant to peeling and cracking, with low later-stage maintenance cost and long service life.
5. High Safety & Reliability: Complete multi-safety protection mechanisms including over-temperature alarm, overload protection and safety interlock devices, suitable for continuous industrial production.

Product Parameters

I. Basic Equipment Information

• Equipment Name: Hot Air Car Furnace

• Model: HRF1350-06

II. Technical Specifications and Basic Configuration

1. Temperature Performance

   • Rated temperature: 600°C, with a maximum working temperature of 650°C, meeting the requirements of most medium-to-high-temperature heat treatment processes.

   • During a 1-hour isothermal test at 600°C (empty furnace), the temperature uniformity within the furnace was ±5°C, indicating excellent temperature distribution consistency, which helps improve product quality.

   • The maximum heating rate is 5°C/min. Users can customize heating curves based on process requirements, but exceeding this limit is not recommended to avoid affecting heating element lifespan or product performance.

   • The furnace chamber uses air as the working atmosphere, eliminating the need for additional protective gases, making it suitable for conventional heat treatment processes.

2. Control and Monitoring

   • Equipped with 2 temperature control points for precise regulation of the working zone temperature, ensuring stability within the set range.

   • Features 2 temperature measurement points for real-time monitoring of the heating chamber temperature, facilitating process control and data recording.

   • Uses K-type thermocouples as temperature sensors, known for their wide measurement range, stability, and fast response, making them ideal for high-temperature applications.

3. Furnace Chamber and Heating System

   • Effective chamber dimensions: 750mm (W) × 2000mm (D) × 900mm (H), capable of accommodating large batches of materials.

   • The chamber is constructed from SUS310S stainless steel, offering excellent high-temperature resistance, oxidation resistance, and corrosion resistance, suitable for prolonged high-temperature operation.

   • Heating elements consist of stainless steel heating tubes, featuring high thermal efficiency, low thermal inertia, and long service life, making them a common choice for high-temperature heating.

   • Maximum heating power: 90 kW, enabling rapid heating for efficient production. In standby mode, power consumption can be maintained below 45 kW, demonstrating energy-saving performance.

   • Surface temperature rise ≤35°C, indicating superior insulation that ensures operator safety and minimizes heat loss to the environment.

4. Loading and Material Handling

   • Uses SUS310S stainless steel racks arranged in a 3-layer × 3-column layout. Each layer can hold trays containing crucibles, with detachable tray designs for easy loading and cleaning.

   • Maximum load per rack layer: 40 kg. Overloading is prohibited to ensure temperature uniformity and structural safety.

   • Users must provide their own crucibles (specification: φ400 × 200 mm, cylindrical), suitable for heat treatment processes in ceramics, powder metallurgy, or related industries.

5. Program Control and Safety Protection

   • Supports 20-step program control, allowing users to preset multi-stage temperature, time, and process parameters for complex heating, holding, and cooling processes.

   • Includes multiple alarm protections: overtemperature, thermocouple failure, low air pressure, low water pressure, etc. All anomalies trigger audible and visual alarms to prompt timely intervention, ensuring equipment and operator safety.

   • Fan overcurrent protection prevents motor damage due to excessive load.

   • Complies with surface temperature rise ≤35°C requirements, maintaining safe exterior temperatures and reducing heat dissipation hazards.

6. Air Circulation System

   • Equipped with a dual-circulation fan system, with a total air circulation range of (5000-6800 m³/h) × 2. This dual-fan configuration significantly improves temperature uniformity and heat exchange efficiency, ensuring consistent material heating.

III. Normal Operating Conditions

To ensure safe, stable, and long-term efficient operation of the HRF1350-06 Hot Air Car Furnace, the following environmental, power, and auxiliary system requirements must be met:

1. Environmental Conditions

   • Ambient temperature: 0-40°C, relative humidity ≤80% RH. Avoid corrosive gases or strong airflows to prevent impacts on furnace temperature fields and component lifespan.

2. Air Supply (Intake)

   • Requires dry, clean, oil-free compressed air at 0.2-0.4 MPa, with consumption of 15-30 m³/h (varies by operating state).

   • Air quality directly affects furnace atmosphere and component longevity. Recommend installing filters and dryers for air treatment.

3. Cooling Water Requirements

   • For water-cooled components (e.g., electrical cabinet or specific heating elements), use clean, non-corrosive water at ≤23°C, 0.2-0.4 MPa pressure, and a flow rate of 6-18 L/min.

   • Adjust and maintain the water circulation system as needed.

4. Ventilation System

   • Exhaust must be non-contact connected to a user-provided extraction system (e.g., ducts or fume hoods) with capacity >40 m³/h to expel fumes, hot air, or volatiles, ensuring a safe workshop environment.

5. Electrical Requirements

   • Three-phase five-wire power supply: three live wires (yellow, green, red), one neutral (blue), one ground (yellow-green). Voltage: 380V (main)/220V (auxiliary), 50 Hz.

   • Total power capacity >130 kVA to ensure stable current during heating and prevent voltage fluctuations affecting temperature control or equipment lifespan.

   • Wiring must comply with standards, especially ensuring reliable grounding for operator and equipment safety.

6. Installation Site Requirements

   • Equipment dimensions: 2100mm (W) × 3600mm (D) × 2100mm (H) (excluding extended rails). Required installation space: 3000mm (W) × 6500mm (D) × 3500mm (H).

   • Minimum floor area >25 m² to allow adequate space for operation, maintenance, and safety access.

   • Floor must be level, sturdy, vibration-free, and support >500 kg/m² to bear equipment and car load.
